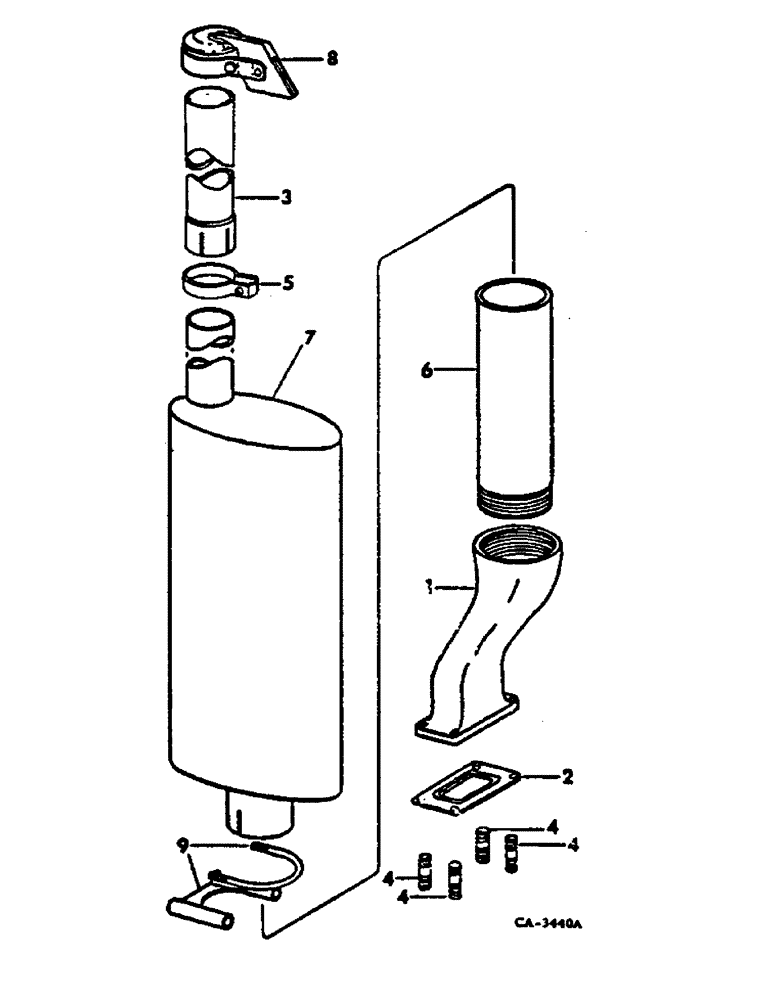

Запчасти Case IH 674 (12-07) - POWER, VERTICAL EXHAUST, DIESEL ENGINE TRACTORS Power

1

3136668R1

ELBOW

exhaust manifold

1шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

2

3136248R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold elbow

1шт.

3

66915C1

PIPE

exhaust extension, for tractors w/protective frame canopy

1шт.

4

3055663R1

STUD

manifold

4шт.

20285H

WASHER

13/32 x 3/4 x 11 ga

8шт.

103026

NUT,3/8"-24, G5

8шт.

5

403826R1

CLAMP

for tractors equipped w/canopy

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

6

534207R1

PIPE CLAMP

PIPE, exhaust

1шт.

7

403551R1

MUFFLER

replaces 533924R1

1шт.

7

403551R1GV

MUFFLER

Value, Muffler

1шт.

8

533925R1

CAP

ASSY, weather, used w/muffler 533924R1

1шт.

8

283280R91

CAP

ASSY, weather, used w/muffler 403551R1

1шт.

9

59124C91

CLAMP

PACKAGE, muffler clamp service

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.
