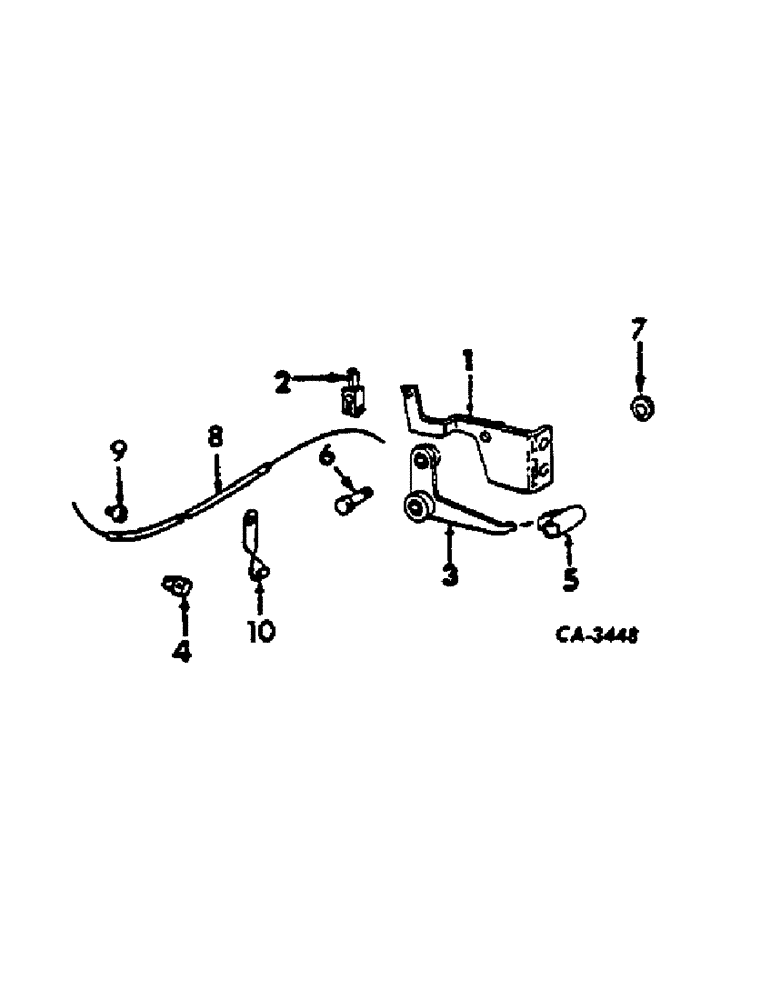

Запчасти Case IH 674 (12-03) - POWER, FUEL SHUT-OFF CONTROLS, DIESEL ENGINE TRACTORS Power

1

67286C1

BRACKET

ASSY, fuel shut-off lever

1шт.

372784R1

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

1/4-20 x 3/4 hex-hd washer

2шт.

2

536852R1

CLAMP

cable swivel

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

454065

SCREW,Hex Hd, #10-32 x 3/4"

10-32 x 3/4 C-Z hex-hd mach

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

453284

NUT,#10-32

10-32 C-Z mach screw

1шт.

3

531335R1

ARM ASSY.

ARM ASSY, choke and fuel shutoff control

1шт.

23369R1

HEADED PIN,3/8" x 7/8"

PIN, HEADED, 3/8" x 7/8"

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

469668R1

WASHER

3/8 x 13/32 x .060 C-Z

1шт.

131974

SCREW,Sl Fil Hd, #8 - 32 x 5/8"

8/32 x 5/8 C-Z slt-fil-hd mach

1шт.

4

396388R1

PIVOT

fuel shut-off lever swivel

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

8-32 x 3/8 C-Z slt-fil-hd mach

1шт.

446179

WASHER,#12

1/4 x 1/2 x .036

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cot.

1шт.

5

530118R1

BUTTON

KNOB, fuel shut-off control cable

1шт.

6

528997R1

BRACKET, PIVOT

SWIVEL, fuel shut-off control cable

1шт.

7

528999R1

CIRCLIP

RETAINER, fuel shut-off control cable spring

1шт.

8

529001R1

CABLE

. diesel fuel shut-off control

1шт.

9

677516R1

BUSHING

fuel shut-off control cable, diesel engine tractors

1шт.

10

370820R1

CLIP

fuel shut-off control cable

1шт.

IF LOOKING FOR A FUEL LIFT / TRANSFER PUMP, PART NUMBER IS 3132697R92

1шт.
