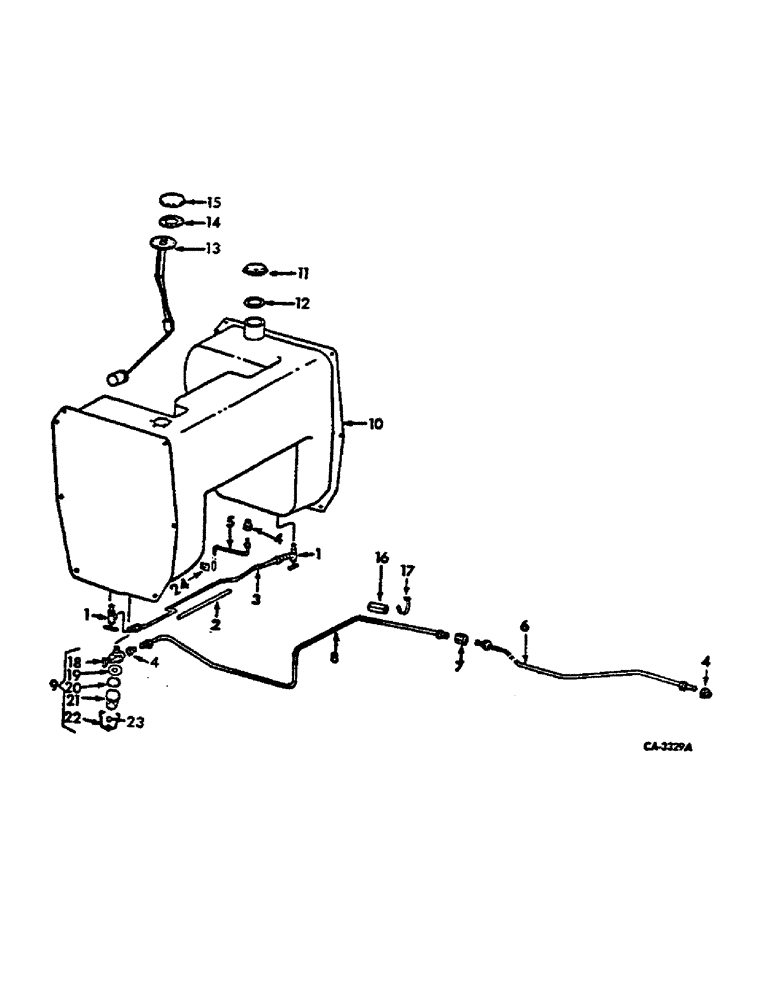

Запчасти Case IH 674 (12-02) - POWER, FUEL TANK AND PIPING, CARBURETED ENGINE TRACTORS Power

1

536002R2

VALVE

ASSY, shutoff

2шт.

2

530107R1

FUEL HOSE,0.31" ID x 10.00"

Balance Tube Spacer 0.31" ID x 10.00"

1шт.

3

528931R1

TUBE

ASSY, crossover

1шт.

3

528922R1

TUBE

ASSY, crossover, for tractors w/grove attachment

1шт.

4

442322

ROD, CONNECTING

CONNECTOR, 1/8 pipe thread x 5/16 inverted flare tube

2шт.

5

539938R1

VENTILATION PIPE

TUBE ASSY, tank breather, tractors w/underslung exhaust

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

NUT, 1/2-20 inverted flare tube

1шт.

6

536000R1

TUBE ASSY, union to fuel pump

1шт.

7

442337

NUT

UNION, 1/2-20 inverted flared tube

1шт.

8

536010R1

TUBE ASSY, union to fuel strainer

1шт.

8

536001R1

TUBE

ASSY, union to fuel strainer, for tractors w/grove attachment

1шт.

9

38465DB

STRAINER ASSY.

STRAINER ASSY, fuel

1шт.

10

529371R92

TANK

ASSY, fuel w/filler cap, Includes: Ref. 11 and 12

1шт.

10

529369R92

TANK

ASSY, fuel w/filler cap, for tractors w/grove attachment

1шт.

179814

SPACER

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

9635082

NUT,5/16" - 18, Gr 5

6шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

11

538063R1

PLUG

CAP ASSY, fuel tank filler

1шт.

12

23977DB

GASKET

fuel tank filler

1шт.

13

531974R2

SENDER UNIT

SENDING UNIT, electric fuel gauge, optional w/534226R2

1шт.

13

534226R2

SENDER UNIT

SENDING UNIT, electric fuel gauge, optional w/531974R2

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Sending unit mounting Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

14

369154R1

GASKET

sending unit

1шт.

15

529825R2

CYLINDER END CAP

CAP, fuel gage flange

1шт.

159908

GASKET

10-24 x 3/8 C-Z cr-rec-pan-hd mach

1шт.

16

HOSE, fuel line, use 2.5 inches from bulk hose 530107R1

1шт.

17

289862C1

CABLE TIE,3/16" x 7"

STRAP

1шт.

18

49928D

BODY

strainer w/baffle

1шт.

19

49923D

FILTER SCREEN

SCREEN, strainer

1шт.

20

360679R1

GASKET

strainer

1шт.

21

49922D

BOWL

strainer

1шт.

22

49947D

COLLAR CLAMP

BAIL ASSEMBLY

1шт.

23

50061D

NUT

fuel strainer

1шт.

538393R1

FILLER CAP

PLUG, fuel tank vent pipe flange

1шт.

24

539940R1

CLIP

breather line, tractors w/underslung exhaust

1шт.

NLS

NO LONGER SERVICED

5/8-11 x 3/4 znd hex-hd cap

1шт.
