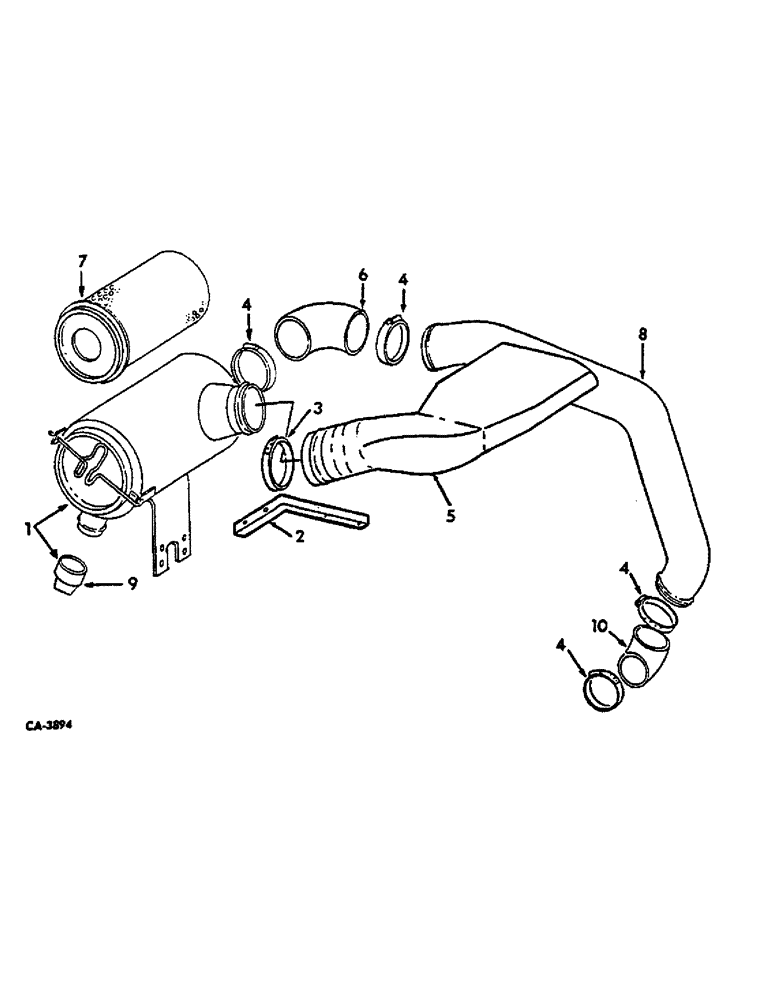

Запчасти Case IH 674 (12-01) - POWER, AIR CLEANER AND CONNECTIONS Power

1

402612R93

FILTER CARTRIDGE

CLEANER ASSY, air, diesel engine tractors, consists of Ref. 7 and 9

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3118679R1

RETAINER

LATCH, air cleaner

1шт.

1

402620R92

CLEANER

ASSY, air, carbureted engine tractors, consists of Ref. 7 and 9

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3118679R1

RETAINER

LATCH, air cleaner

1шт.

2

67290C1

BRACKET

ASSY, air cleaner mtg, diesel engine tractors

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 znd hex-hd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

3

21423R1

CLAMP

3-5/16 hose

1шт.

4

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, no. 44 hose, carbureted engine tractors

4шт.

5

529864R1

DUCT

air inlet

1шт.

6

382400R1

INTAKE AIR HOSE,2.25" ID, 2.50" ID, SAE 20R4, Class SC

Air Cleaner Outlet, Carbureted engine tractors 2.25" ID, 2.50" ID, SAE 20R4, Class SC

1шт.

7

114597C91

PACKAGE

ELEMENT ASSY, package, carbureted engine tractors

1шт.

7

114596C91

PACKAGE

ELEMENT ASSY, package, diesel engine tractors

1шт.

8

539949R1

PIPE, air cleaner to carburetor, carbureted engine tractors

1шт.

(P/N 539949R1) - for diesel Eng. gp. 12, Figure 6, Ref. 12

1шт.

9

529855R1

VALVE

dust unloader

1шт.

10

402500R2

HOSE

Carburetor Inlet, Carbureted Engine Tractors 2.00" ID, 2.50" ID x 3.30", SAE J200

1шт.
