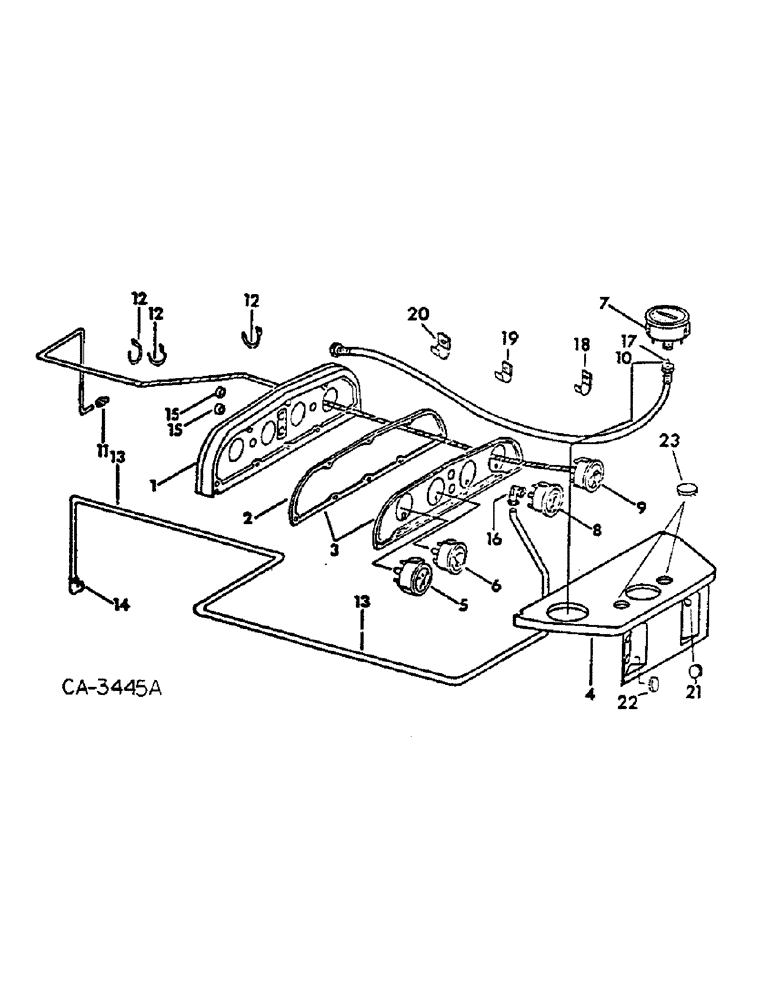

Запчасти Case IH 674 (11-01) - INSTRUMENTS, INSTRUMENT PANEL AND GAUGES Instruments

1

529357R2

HOUSING

instrument panel gauge

1шт.

2

529360R1

GASKET

1шт.

159336

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

6-32 x 1/2 C-Z slt-pan-hd mach

8шт.

3

529358R11

PANEL

ASSY, instrument face

1шт.

4

527566R3

PANEL ASSY, instrument, Serial Range: -108104

1шт.

4

114627C1

PANEL ASSY, instrument, Start Serial: 108105

1шт.

167214

CHAIN

SCREW, 12-24 x 1/2 C-Z cr-rec-pan-hd tap

4шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1/4-20 x 3/8 znd hex-hd cap

2шт.

5

529804R1

FUEL GAUGE

GAUGE ASSY, electric fuel

1шт.

384498R1

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

1-15/16 x 2-1/8 x 3/32

1шт.

6

536229R1

INDICATOR

GAUGE ASSY, charge indicator

1шт.

384498R1

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

1-15/16 x 2-1/8 x 3/32

1шт.

7

66455C1

GAUGE

TACHOMETER ASSY

1шт.

8

529802R1

GAUGE

ASSY, oil pressure idicator, optional w/536973R2

1шт.

8

536973R2

SWITCH

GAUGE ASSY, oil pressure indicator, optional w/529802R1

1шт.

384498R1

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

1-15/16 x 2-1/8 x 3/32

1шт.

9

529801R1

INDICATOR

ASSY, heat, optional w/536972R1

1шт.

9

536972R1

ELECTRICAL GAUGE

INDICATOR ASSY, heat, optional w/529801R1

1шт.

384498R1

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

1-15/16 x 1-1/8 x 3/32

1шт.

10

529795R92

CABLE

ASSY, tachometer flexible, carbureted engine tractors

1шт.

10

393326R92

CABLE ASSY.

CABLE ASSY, flexible drive, diesel engine tractors

1шт.

11

51510DA

RESTRICTOR

BUSHING, capillary tube bulb

1шт.

12

306132C1

CABLE TIE,14.5" L

STRAP, capillary tube

3шт.

13

529805R1

PIPE, oil pressure indicator, carbureted engine tractors

1шт.

13

529806R1

PIPE

oil pressure indicator, diesel engine tractors

1шт.

362127R1

CLIP

oil pressure tube

1шт.

14

19717R1

ELBOW,90 Degree x 1/8" NPT x 5/16"-20, Fem

1/8-27 hi-duty tube fitting female

1шт.

15

530589R1

TUBE

warning light

2шт.

16

140304

ELBOW

1/8-27 hi-duty tube fitting

1шт.

222-500

TUBE NUT,5/16" - 24 NPT

NUT, 5/16-24 hi-duty tube fitting

2шт.

17

393327R2

CORE ASSY, speedometer flexible drive shaft, diesel engine tractors

1шт.

17

536905R2

CORE

ASSY, tachometer flexible drive shaft, carbureted engine tractors

1шт.

18

362126R1

CLIP

tachometer drive shaft

1шт.

19

362123R1

CLIP

tachometer drive shaft, diesel engine tractors

1шт.

20

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, tachometer drive shaft, diesel engine tractors

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

21

374342R1

PLUG

horn button hole

1шт.

22

432281

HOLE PLUG BUTTON,29/32"

PLUG, 29/32 cr cigarette lighter button hole

1шт.

23

192105

HOLE PLUG BUTTON,1"

PLUG, 1 C-Z button, ether button hole

1шт.

23

192105

HOLE PLUG BUTTON,1"

PLUG, 1 X-Z button, forward-reverse control handle hole

1шт.
