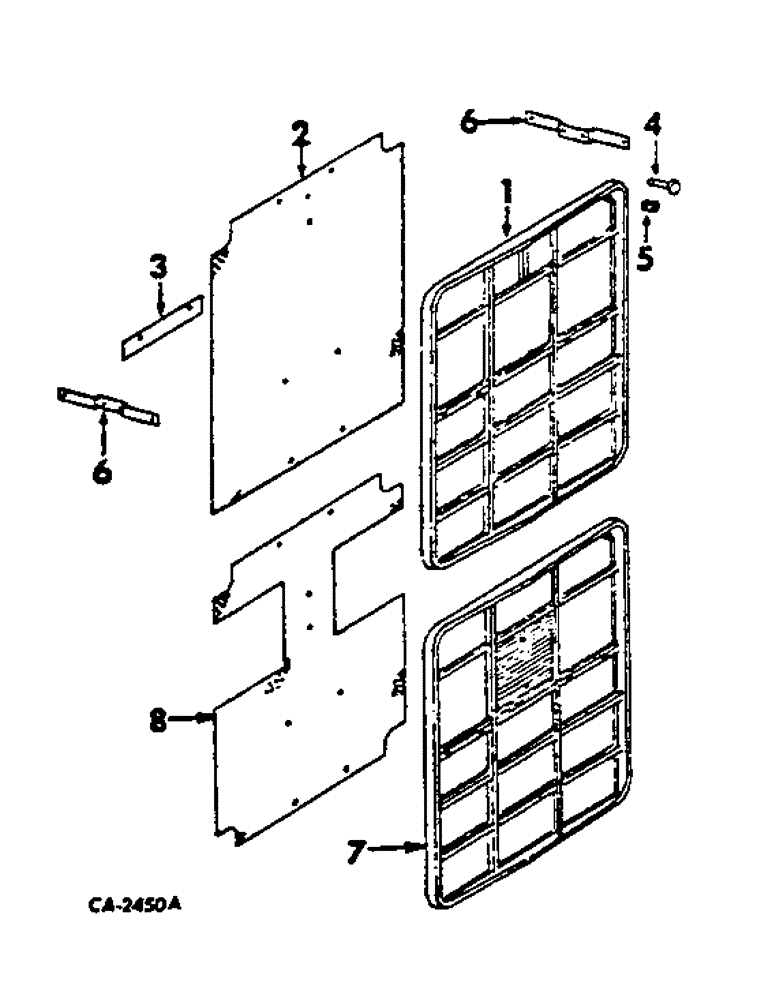

Запчасти Case IH 674 (06-03) - COOLING, RADIATOR GRILLE Cooling

1

528154R1

GRILLE

radiator

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

SCREW, 10-24 x 1/2 hex-washer-hd tap

6шт.

2

528156R2

SCREEN

grille

1шт.

3

532192R1

BRACKET

. grille retaining

1шт.

23505R1

WASHER

9/32 x 5/8 x 16 ga C-Z

2шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

10-32 x 1/2 slt plan hd mach

2шт.

4

3113470R1

PIN

LATCH, grille

2шт.

5

532180R1

SPRING

grille latch

2шт.

26052R1

PIN,3/16" x 1 1/2", Coiled

2шт.

23505R1

WASHER

9/32 x 5/8 x 16 ga C-Z

2шт.

6

402610R1

SUPPORT

radiator and grill housing

2шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

7

537496R1

GRILLE

radiator, for tractors w/grove attachment

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

SCREW, 10-24 x 1/2 hex-washer-hd tap

4шт.

8

528155R3

SCREEN

grille, for tractors w/grove attachment

1шт.

66327R1

WASHER, grille screen retainer

4шт.
