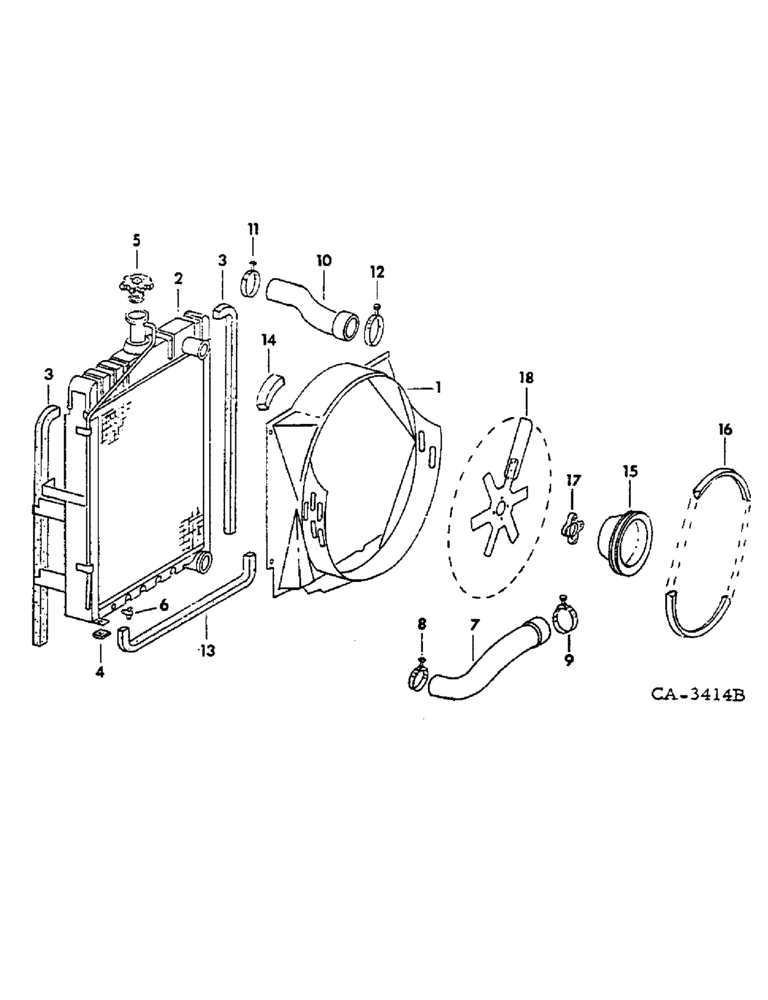

Запчасти Case IH 674 (06-02) - COOLING, RADIATOR AND CONNECTIONS Cooling

1

402200R1

HOUSING

fan

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

4шт.

2

66495C2

RADIATOR

ASSY, carbureted engine tractors

1шт.

2

66496C2

RADIATOR

ASSY, diesel engine tractors

1шт.

179858

SUPPORT

SCREW, 7/16-14 x 1 hex-hd cap

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

142745

NUT, WING

NUT, 5/16-18 znd wing

1шт.

3

GASKET, radiator baffle, furnish 28.0 in. from 4 ft. length marked 73217C1

2шт.

4

47240D

PAD

radiator

4шт.

23042R1

WASHER

17/32 x 1 x 22 ga C-Z (or as required)

1шт.

5

532029R1

CAP ASSY.

CAP ASSY, radiator

1шт.

6

539787R1

COCK, DRAIN

COCK, 1/4 drain

1шт.

7

402204R1

HOSE,1.50" ID x 6.60", SAE 20R2

RADIATOR HOSE Gas, , CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A, Outlet (Carburated Engine Tractors) 1.50" ID x 6.60", SAE 20R2

1шт.

7

402205R1

LARGE HOSE,50.80 mm ID x 213.90 mm, SAE 100R2

RADIATOR HOSE, Diesel, CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A OR SAE 20R4 CLASS D1, Outlet (Diesel Engine Tractors) 50.80 mm ID x 213.90 mm, SAE 100R2

1шт.

7

402205R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

8

995224R1

CLAMP

hose, 2 for carbureted and 1 for diesel engine tractors

1шт.

9

995223R1

CLAMP

hose, diesel engine tractors

1шт.

10

402206R1

HOSE,1.50" ID, 2.00" ID x 6.65", SAE 20R2

RADIATOR HOSE, Gas, CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A, Inlet (Carburated Engine Tractors) 1.50" ID, 2.00" ID x 6.65", SAE 20R2

1шт.

10

402207R1

LARGE HOSE,50.80 mm ID x 179.83 mm, SAE 20R2

RADIATOR HOSE, Diesel , CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A, Inlet (Diesel Engine Tractors) 50.80 mm ID x 179.83 mm, SAE 20R2

1шт.

If looking for a radiator hose that looks exactly like the picture try Part# 1502065C1.

1шт.

10

402207R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

11

995224R1

CLAMP

hose

1шт.

12

995223R1

CLAMP

hose

1шт.

13

537162R1

FILLING STRIP

GASKET, lower radiator

1шт.

14

389838R1

FOAM

BAFFLE, foam air hose protective, diesel engine tractors

1шт.

15

527471R1

PULLEY

water pump, gasoline engine tractors

1шт.

15

401124R2

PULLEY

water pump, diesel engine tractors

1шт.

16

532031R2

V-BELT,0.38" W x 52.48" L

Fan, Gasoline engine tractors 0.38" W x 52.48" L

1шт.

16

534311R1

V-BELT,0.50" W x 61.12" L

Fan, Diesel engine tractors 0.50" W x 61.12" L

1шт.

17

401125R1

SPACER

fan, gasoline engine tractors

1шт.

18

527472R1

FAN

BLADE ASSY, fan

1шт.

(P/N 527472R1) - 4 blade

1шт.

18

527473R1

FAN

BLADE ASSY, fan, tractors w/grove attachment

1шт.

(P/N 527473R1) - 6 blade

1шт.

181321

BOLT,Hex, 1/4" - 28 x 1 3/4", Gr 5

SCREW, 1/4-28 x 1-3/4 hex-hd cap, carbureted engines

4шт.

181312

BOLT,Hex, 1/4" - 28 x 11/16", Gr 5

1/4-28 x 11/16 hex-hd cap, Diesel engines

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
