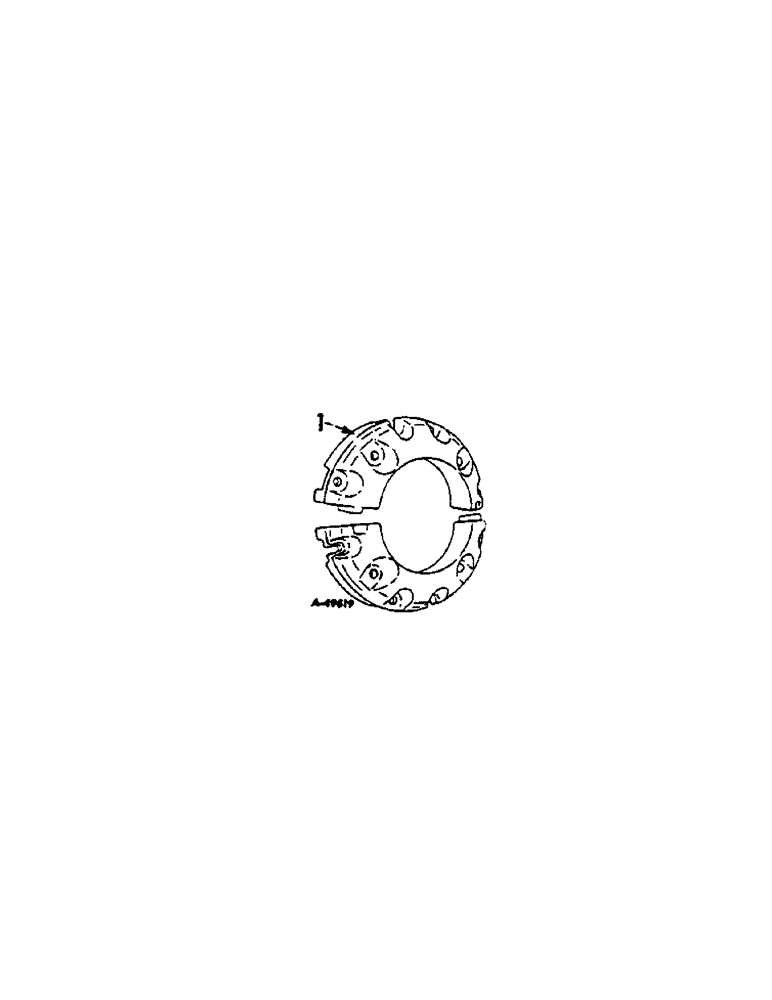

Запчасти Case IH 674 (02-02[2]) - MISCELLANEOUS, REAR WHEEL WEIGHTS Accessories & Attachments / Miscellaneous
![Схема запчастей Case IH 674 - (02-02[2]) - MISCELLANEOUS, REAR WHEEL WEIGHTS Accessories & Attachments / Miscellaneous](https://partsell.ru/storage/images/caseih/811872.png)
№
Артикул
Название
Примечание
Количество
1
365321R2
WEIGHT
rear wheel, 75 lbs, used w/24 in. integral disc wheel, used w/28 or 30 in. wheel, first position
4шт.
365333R1
BOLT,Sht Sq Nk, 5/8" - 11 x 3"
rear wheel weight mounting
8шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8-11 C-Z hex.
8шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
16шт.
1
365321R2
WEIGHT
rear wheel, 75 lbs, used w/24 in. integral wheel, used w/28 or 30 in. wheel, second position
4шт.
365332R2
SQUARE BOLT
BOLT, rear wheel weight mounting
8шт.
425-1410
JAM NUT,Jam, 5/8"-11, G5
5/8-11 C-Z hex. jam
8шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
1
369509R1
WEIGHT
rear wheel, 75 lbs, used w/24 in. attached clamp or power adj. rear wheels, first position
4шт.
366646R1
BOLT,Sht Sq Nk, 5/8" - 11 x 3 3/4", Gr 2
rear wheel weight mounting
8шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8-11 C-Z hex.
16шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
1
369509R1
WEIGHT
rear wheel, 75 lbs, used w/24 in. attached clamp or power adj. rear wheels, second position
4шт.
369508R1
BOLT,5/8" - 11 x 5 3/4"
rear wheel weight mounting
8шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
1
366645R1
WEIGHT
rear wheel, 75 lbs, used w/26 in. wheels, first position
4шт.
366646R1
BOLT,Sht Sq Nk, 5/8" - 11 x 3 3/4", Gr 2
rear wheel weight mounting
8шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8-11 C-Z hex.
16шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
1
366645R1
WEIGHT
rear wheel, 75 lbs, used w/26 in. wheels, second or third position
4шт.
366647R1
BOLT,Sq Hd, 5/8" - 11 x 5 1/2"
rear wheel weight mounting
8шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
Выбрано товаров: 29
