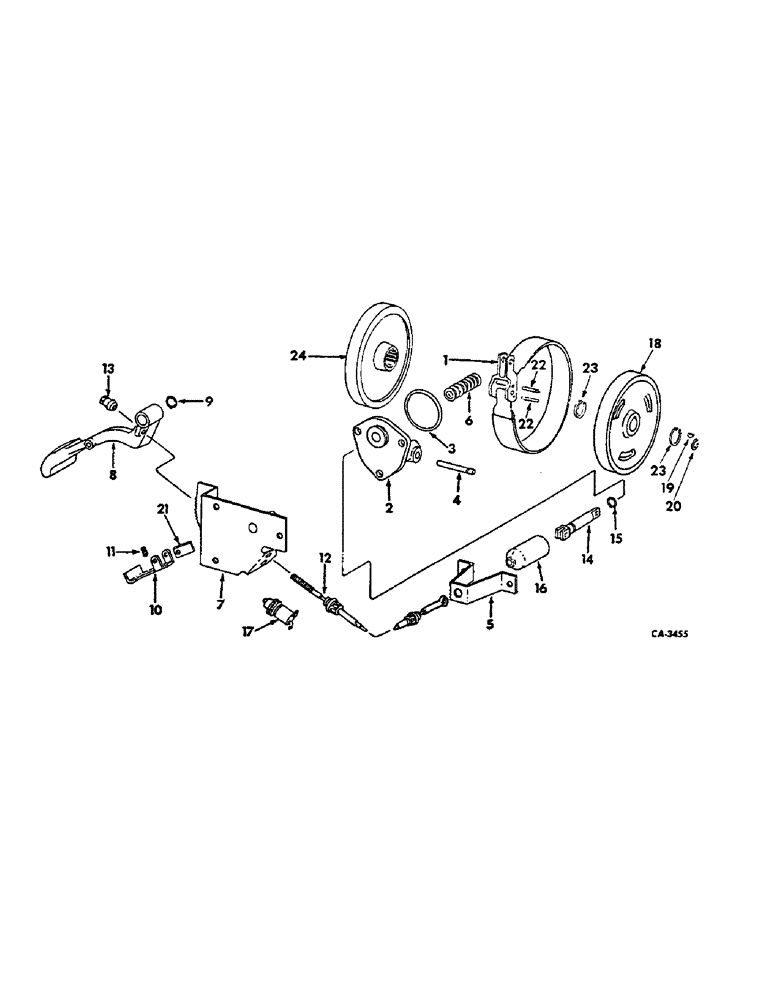

Запчасти Case IH 674 (04-03) - BRAKES, PARK LOCK (5.1) - BRAKES

1

401992R3

BAND

ASSY, brake and actuating toggle

1шт.

16616R1

CLEVIS PIN,5/16" x .940"

PIN, 5/16 x 31/32 rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

2

401997R1

PIVOT

parking brake

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

3

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

2-9/16 x 2-3/4 x 3/32

1шт.

4

401998R1

PIVOT PIN

PIN, parking brake pivot

1шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

1шт.

5

401999R1

SUPPORT

BRACKET, cable hsg anchor lower

1шт.

6

402000R1

SPRING

parking brake return

1шт.

7

402001R2

BRACKET

ASSY, parking brake ratchet

1шт.

8

402005R3

LEVER

parking brake hand

1шт.

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4 45 deg angle drive lub

1шт.

9

269181R1

SNAP RING,#75, Ext

Ring, Snap, , parking brake hand lever #75, Ext

1шт.

10

404493R2

HANDLE

parking brake pawl

1шт.

Q1329

HEADED PIN,1/4" x 1 3/4"

PIN, 1/4 x 1-3/4 std-hd

1шт.

16558R1

WASHER

17/64 x 5/8 x .036

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

11

402731R1

SPRING

pawl handle

1шт.

12

402012R1

CABLE

ASSY, parking brake

1шт.

13

402013R1

NUT

5/16-24 adjustable pivot

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

148150

HAIR PIN COTTER,3/8" Retainer

SPRING, 3/8 retainer

2шт.

14

402014R1

PLUNGER

parking brake pivot

1шт.

702269R1

HEADED PIN,5/16" x 15/16"

PIN, 5/16 x 15/16 std-hd

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .051

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

15

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 x 1/16 pivot plunger

1шт.

16

402015R1

BOOT

cable protection

1шт.

17

SWITCH, park brake warning light, refer to engine controls and switches listing, section 8

1шт.

18

399828R1

HUB

brake drum, not used on row crop

1шт.

19

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

Not used on row crop #15, 1/4" x 1", HT

1шт.

20

327058R1

RING, SNAP

RING, brake drum, not used on row crop

1шт.

21

534318R2

BAR

1шт.

22

535544R1

PIN

anchor

2шт.

23

67628C1

CIRCLIP

SHIM, bevel pinion, .093 (or as required)

2шт.

23

67575C1

CIRCLIP

SHIM, bevel pinion, .090 (or as required)

2шт.

23

67574C1

CIRCLIP

SHIM, bevel pinion, .087 (or as required)

2шт.

23

67573C1

SNAP RING,2.13mm Thk, Ext

SHIM, bevel pinion, .084 (or as required)

2шт.

23

67572C1

CIRCLIP

SHIM, bevel pinion, .081 (or as required)

2шт.

23

66077C1

CIRCLIP

SHIM, bevel pinion, .078 (or as required)

2шт.

23

67571C1

CIRCLIP

SHIM, bevel pinion, .075 (or as required)

2шт.

23

67570C1

CIRCLIP

SHIM, bevel pinion, .072 (or as required)

2шт.

23

67569C1

CIRCLIP

SHIM, bevel pinion, .069 (or as required)

2шт.

23

67568C1

CIRCLIP

SHIM, bevel pinion, .066, row crop (or as required)

2шт.

24

66074C1

HUB

brake drum, row crop

1шт.
