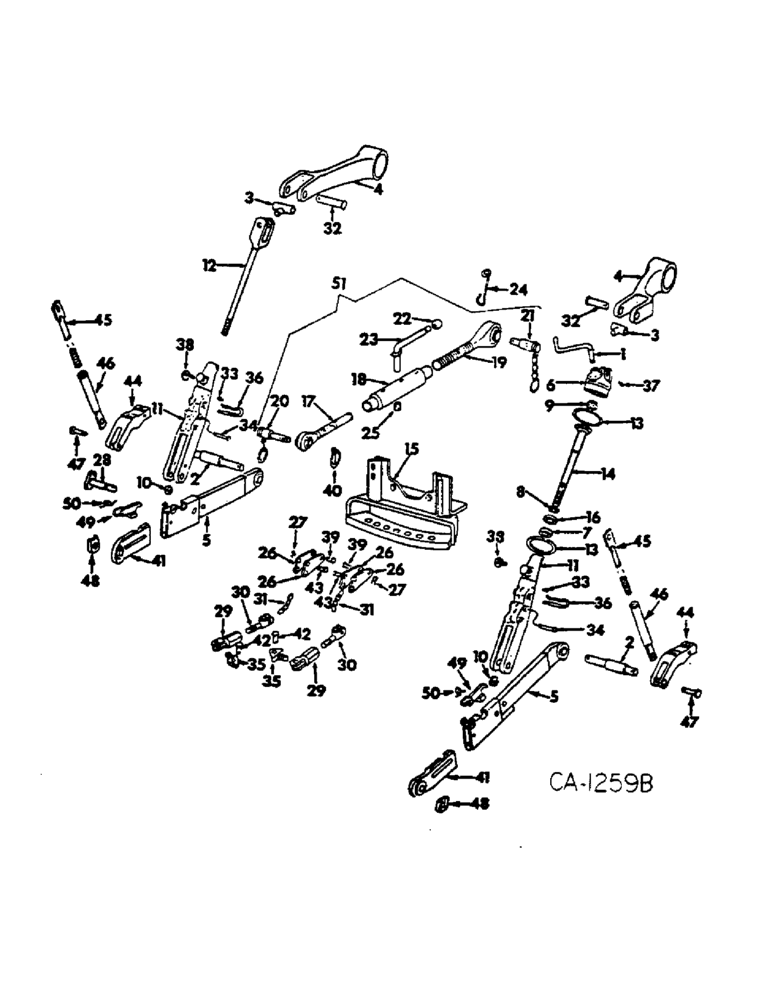

Запчасти Case IH 674 (09-01) - FRAME, THREE POINT HITCH (12) - FRAME

.

ATTACHMENT, three point hitch stabilizer, 529340R91, consists of Ref. 44 - 47

1шт.

.

ATTACHMENT, three point hitch stabilizer, 529341R91, consists of Ref. 44 - 47, row crop tractors

1шт.

.

ATTACHMENT, three point hitch, 402633R91, consists of Ref. 1 - 43, 48 and 49

1шт.

.

ATTACHMENT, three point hitch, 527931R91, row crop tractors, consists of Ref. 1 - 43 and 49

1шт.

1

527943R1

CRANK

HANDLE, lift RH link leveling screw

1шт.

.

3072424R1

SPRING

leveling screw handle

1шт.

2

67829C1

PIN,28.57mm OD x 108.61mm L

lower link, only has one step down with hole one end

2шт.

.

538406R1

COTTER PIN

PIN, quick attachable cot.

2шт.

3

704207R3

PIVOT

SWIVEL, leveling screw

2шт.

.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

.

3069069R1

PIN

5/8 x 3-3/4 hardened

2шт.

.

3044309R1

PIN

5/8 x 3-3/8 hd

1шт.

4

402634R2

ROCKER ARM

ARM, rockshaft

2шт.

5

403011R1

LINK

ASSY, front section LH lower

1шт.

5

527970R1

LOWER LINK

LINK ASSY, front section LH lower, row crop tractors

1шт.

5

403012R1

LINK ASSY, front section RH lower

1шт.

5

527971R1

LOWER LINK

LINK ASSY, front section RH lower, row crop tractors

1шт.

6

3072422R2

HOUSING

leveling screw

1шт.

Will no longer be tapped for 1/8 NPT threads.

1шт.

7

3069064R1

BEARING

leveling screw

1шт.

8

3105187R1

COLLAR,25.4mm ID x 34.92mm OD x 7.92mm L

lift RH link leveling screw brg

1шт.

9

3069063R1

GEAR

pinion

1шт.

.

142506

LATCH

Pin, Grooved, 3/16" x 3/4", Type A

1шт.

10

527937R1

NUT

lift LH and RH link yoke rod adj

2шт.

11

402643R3

HOUSING

lift link yoke LH

1шт.

11

402643R3

HOUSING

lift link yoke RH

1шт.

12

527940R91

YOKE

ASSY, lift LH link

1шт.

12

527935R11

CLEVIS

YOKE ASSY, lift LH link, row crop tractors

1шт.

12

527948R91GV

LEVELLING DEVICE

Value, Yoke Assy.

1шт.

.

617937R1

PIN,1/4" x 7/8", Coiled

1шт.

13

3069065R1

LOCK NUT

leveling screw brg

2шт.

14

69992C91

SCREW

ASSY, leveling

1шт.

14

69993C91

SET SCREW

SCREW ASSY, leveling, row crop tractors

1шт.

.

617937R1

PIN,1/4" x 7/8", Coiled

1шт.

15

403025R11

SUPPORT

ASSY, swinging drawbar

1шт.

.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 hex-hd cap

5шт.

.

19904R1

DOWEL,1/2" x 1"

PIN, 1/2 x 1 dowel

2шт.

16

3044346R91

BALL BEARING

BEARING, leveling screw

1шт.

17

527996R1

SCREW

SCREW, RH thd upper

1шт.

18

528003R1

TURNBUCKLE

1шт.

.

272139

END PLATE

1-1/8-7 unc hex. lock

1шт.

19

527994R1

SCREW

ASSY, LH thd upper

1шт.

20

528081R1

PIN ASSY.

PIN ASSY, upper link cat I

1шт.

21

528084R1

HITCH PIN

PIN ASSY, upper link cat II

1шт.

.

530049R1

CLIP, SPRING

PIN, quick attachment cot.

1шт.

22

3048296R1

BUTTON

KNOB, turnbuckle rod

2шт.

23

65958C1

ROD

ASSY, turnbuckle

1шт.

.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .074 plain

1шт.

.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

24

530050R3

CLIP,ELECTRICAL

CLIP, upper link storage

1шт.

.

23042R1

WASHER

17/32 x 1 x .030 C-Z

1шт.

.

391047R1

BOLT,Shldr, Hex, 3/8" - 16 x 1.18"

BOLT, Shoulder

1шт.

25

899896R1

SPRING

turnbuckle rod

1шт.

26

403036R1

LARGE PLATE

STRAP, limiter chain adj

4шт.

27

460047R1

CLIP, SPRING

PIN, quick attachable cot.

2шт.

27

538406R1

COTTER PIN

PIN, quick attachable

1шт.

28

402645R1

PIN

ASSY, lift link pivot

2шт.

.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

29

527978R1

YOKE,7/8" - 14

ASSY, limiter chain

2шт.

30

70622C1

CLEVIS,7/8" - 14

ASSY, limiter

2шт.

31

403038R1

CHAIN (AG)

CHAIN, lateral limiter

2шт.

.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

2шт.

32

3044309R1

PIN

rockshaft arm hd

2шт.

.

720631R1

LINCH PIN

PIN, rockshaft arm cot.

2шт.

33

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

2шт.

34

68804C1

CLEVIS PIN,7.94mm OD x 58.74mm L

PIN, lift link yoke float

2шт.

.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

35

527985R1

EYEBOLT,Eye, 7/8" - 14 x 1.90"

2шт.

.

19853R1

LOCK NUT,7/8"-14

NUT, 7/8-14 nylon insert hex.

2шт.

36

520174R11

LINCH PIN,7.92mm OD x 88.91mm L

PIN ASSY, lift link lock

2шт.

37

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

38

533189R1

PIN

ASSY, lower link drawbar

2шт.

39

403043R1

PIN

limiter chain front

2шт.

.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

2шт.

40

533189R1

PIN

ASSY, implement

1шт.

41

403019R1

LOWER LINK

LINK ASSY, rear section LH lower

1шт.

.

19903R1

PIN,1/2" x 1 3/4", Coiled

1шт.

41

403020R1

LOWER LINK

LINK ASSY, rear section RH lower

1шт.

.

19903R1

PIN,1/2" x 1 3/4", Coiled

1шт.

42

528112R2

PIN,15.77mm OD x 54.61mm L

limiter chain

2шт.

.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

2шт.

43

403037R1

PIN

limiter chain

4шт.

44

529342R3

BRACKET

stabilizer mounting

2шт.

44

529343R1

BRACKET

stabilizer mounting, row crop tractors

2шт.

.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 znd hex-hd cap

2шт.

.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 znd hex-hd cap

2шт.

.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

.

535888R1

CLIP

stabilizer holding

1шт.

45

380578R1

ROD

stabilizer end

2шт.

46

529344R1

TUBE

stabilizer end rod

2шт.

46

529345R1

TUBE

stabilizer end rod, row crop tractors

2шт.

47

529346R1

PIN

stabilizer end rod tube

2шт.

.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

48

404787R1

SHIELD

pin

2шт.

49

403023R1

LATCH

rear section

2шт.

.

591261R1

PIN,3/8" x 2 1/8", Coiled

2шт.

50

403024R1

SPRING

rear section

2шт.

51

528079R91

UPPER LINK

LINK ASSY, upper, consists of Ref. 17 - 23 and 25

1шт.

.

530116R91

ACCESSORIES

PARTS ACCESSORY, bushing and pin adapter, for use w/category I tools and implements when mounted on a category II three point hitch, consists of

1шт.

.

380583R1

BUSHING

lower link category I short

2шт.

.

380584R1

BUSHING

lower link category I long

2шт.

.

11484R

BUSHING

SPACER, lower link long bushing

2шт.
