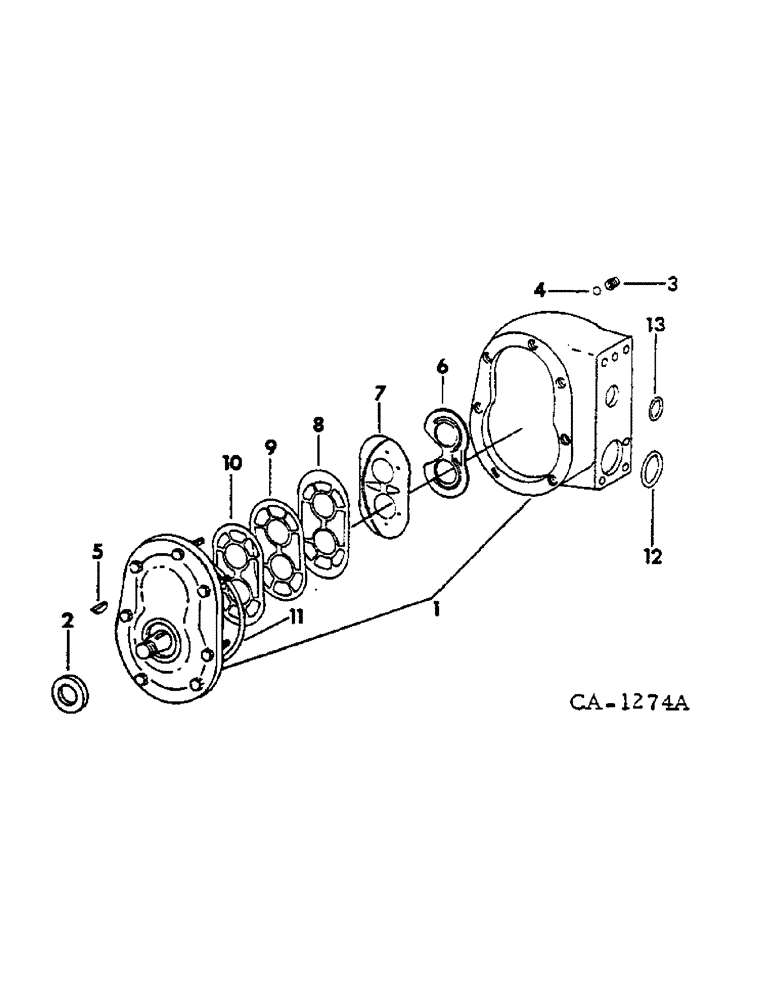

Запчасти Case IH 674 (10-25) - HYDRAULICS, HYDRAULIC GEAR PUMP (07) - HYDRAULICS

1

PUMP ASSY, hyd gear, on orders for pump 67248C91 furnish pump 128180C91

1шт.

1

128180C91

PUMP, HYDRAULIC

PUMP ASSY, hyd gear, optional w/66513C91

1шт.

1

84573150R

REMAN-HYD PUMP

674 INTERNATIONAL DIESEL TRACTOR (NORTH AMERICA), PUMP ASSY, hyd gear (1/73-12/77), Reman for New PN 128180C91

1шт.

1

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

373244R91

SEAL

SEAL, pump shaft oil

1шт.

3

371523R1

SPRING

ball check, replaces 383663R1

1шт.

4

16007R1

BALL

7/32 dia. cr-stl

1шт.

5

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Drive gear #6, 5/32" x 5/8", HT

1шт.

6

PLATE, thrust, not serviced separately, furnish o-ring and gasket service package 67249C93

1шт.

7

DIAPHRAGM, pressure, not serviced separately, furnish o-ring and gasket service package 67249C93

1шт.

8

SEAL, diaphragm, not serviced separately, furnish o-ring and gasket service package 67249C93

1шт.

9

GASKET, backup, not serviced separately, furnish o-ring and gasket service package 67249C93

1шт.

10

GASKET, protector, not serviced separately, furnish o-ring and gasket service package 67249C93

1шт.

11

O-RING, pump cover, not serviced separately, furnish o-ring and gasket service package 67249C93

1шт.

12

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

suction port

1шт.

13

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

pressure port

1шт.

67249C93

PACKAGE,SERVICE

PACKAGE, hyd pump o-ring and gasket service, used w/pump 67248C91, consists of (1) plate 397824R1 (NSS), (1) diaphragm 71397C1 (NSS), (1) seal 67968C1 (NSS), (1) gasket 538260R1 (NSS), (1) gasket 631016C1 (NSS), (1) o-ring 24753R1-

1шт.

73234C91

PACKAGE,SERVICE

PACKAGE, o-ring and gasket service, used w/pump 128180C91

1шт.
