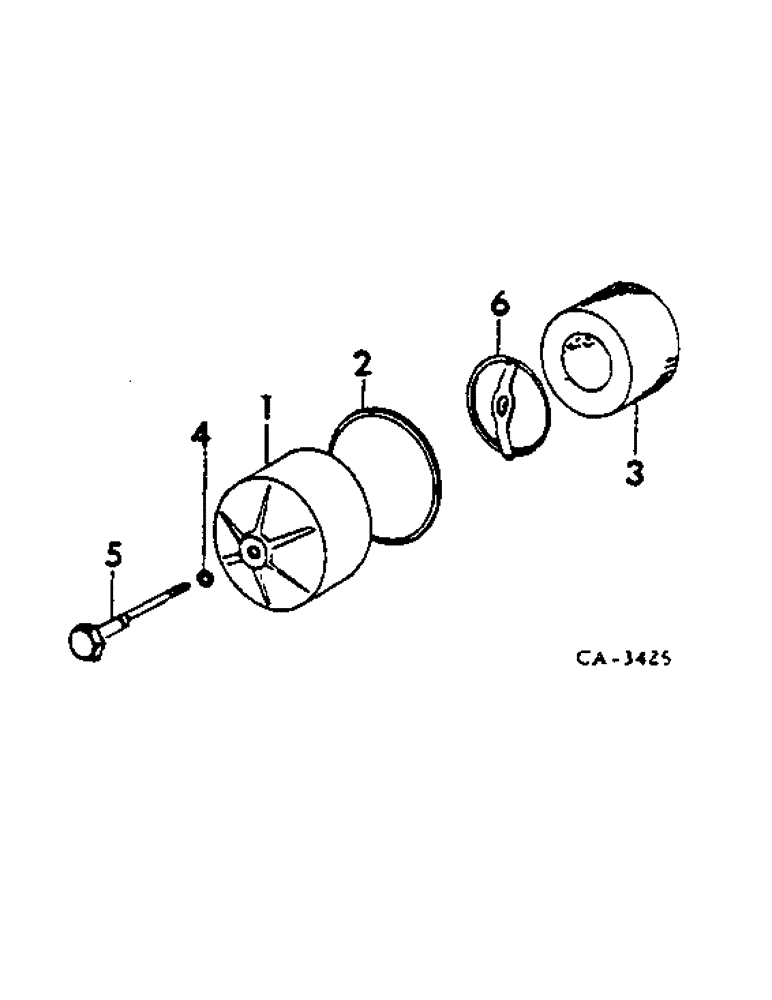

Запчасти Case IH 674 (10-24) - HYDRAULICS, OIL FILTER (07) - HYDRAULICS

1

68209C1

CASE

SHELL ASSY

1шт.

2

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

Oil filter case

1шт.

3

ELEMENT, filter, not serviced separately, furnish oil filter element service package

1шт.

4

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 5/8 x 3/32, replaces 355966R1, filter case seal

1шт.

5

68202C1

BOLT

BOLT, filter mtg

1шт.

6

405464R2

VALVE

AND SCREEN ASSY, by-pass

1шт.

530144R92

FILTER, ELEMENT

PACKAGE, oil filter element service, consists of (1) gasket 405462R1, (1) o-ring 355966R1, (1) element (NSS)

1шт.
