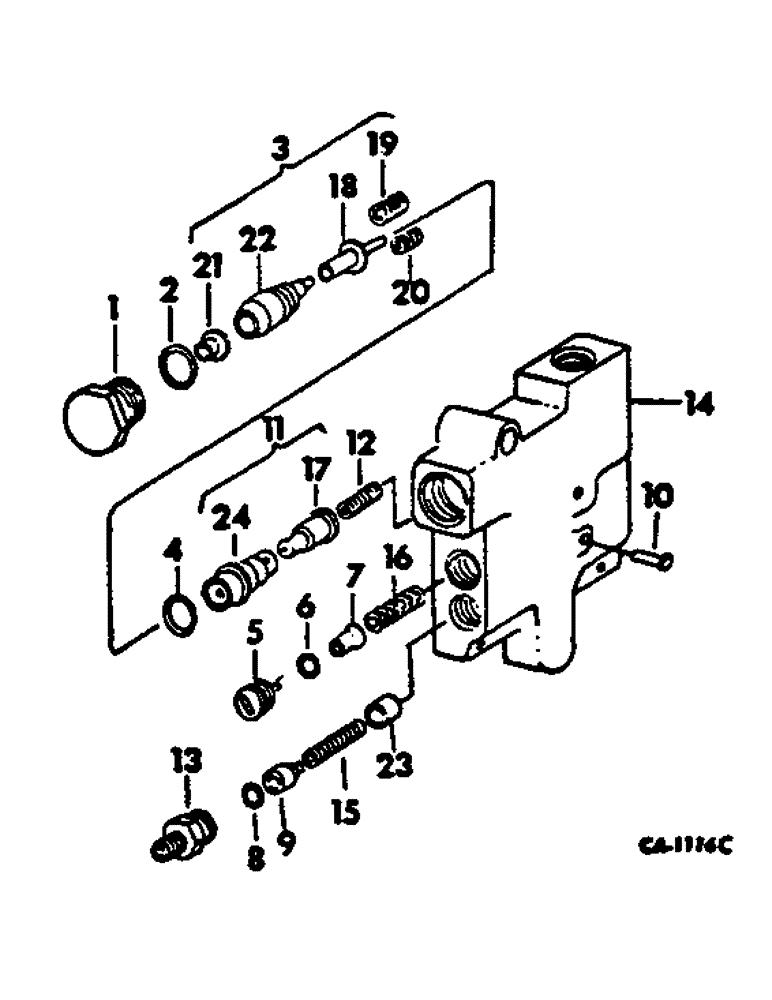

Запчасти Case IH 674 (10-22) - HYDRAULICS, UNLOADING AND FLOW CONTROL VALVE (07) - HYDRAULICS

59098C93

VALVE

ASSY, unloading and flow control

1шт.

1

545494R2

PLUG

unloading valve

1шт.

2

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 in. OD tube

1шт.

3

376762R11

PISTON ASSY.

PISTON ASSY, unloading valve

1шт.

4

238-6212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 6, 90 Duro

1шт.

5

399851R1

PLUG

check valve

1шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

7

389587R3

CHECK VALVE

VALVE, check poppet

1шт.

8

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

9

58367C1

GUIDE

spring

1шт.

10

617057R1

PIN,1/4" x 1", Coiled

1шт.

11

530138R1

BODY

ASSY, unloading valve

1шт.

12

530141R1

SPRING

unloading

1шт.

13

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 znd 37 deg hyd flared tube short swivel

1шт.

14

BODY, unloading and flow control valve, not serviced separately, furnish valve assy. 59098C93

1шт.

15

530142R1

SPRING

flow control valve

1шт.

16

535547R1

SPRING

check poppet

1шт.

17

VALVE, not service seperately order 530138R1

1шт.

18

ROD, not service seperately order 376762R11

1шт.

19

SPRING, inner, not service seperately order 376762R11

1шт.

20

SPRING, outer, not service seperately order 376762R11

1шт.

21

RETAINER, not service seperately order 376762R11

1шт.

22

PISTON, unloading valve, not service seperately order 376762R11

1шт.

23

VALVE, flow control, not service seperately order 59098C93

1шт.

24

BODY, not service seperately order 530138R1

1шт.
