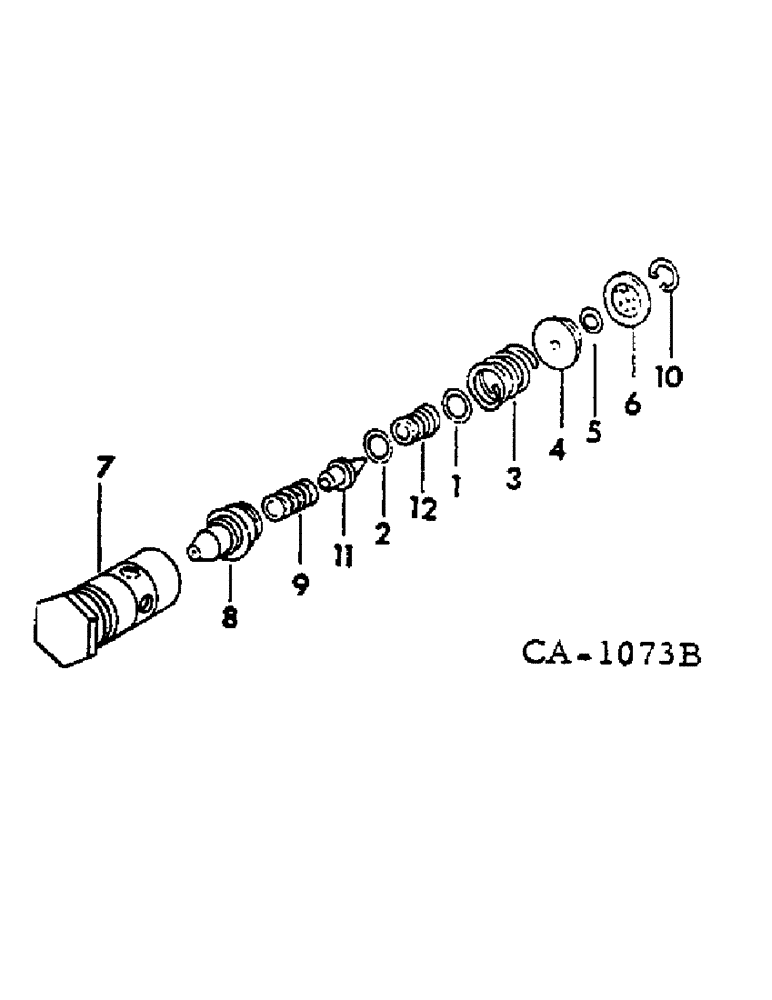

Запчасти Case IH 674 (10-21) - HYDRAULICS, PILOT RELIEF VALVE (07) - HYDRAULICS

399858R92

VALVE

ASSY, pilot relief

1шт.

1

379181R1

O-RING,0.614" ID x 0.07" Width

5/16 x 7/16 x 1/16, class 5

1шт.

2

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16 x 7/16 x 1/16

1шт.

3

386040R1

SPRING

poppet return

1шт.

4

386042R1

PLATE

orifice

1шт.

5

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

11/16 x 13/16 x 1/16

1шт.

6

386073R91

SCREEN

ASSY, pilot relief valve

1шт.

7

BODY, relief valve, not serviced separately, furnish valve assy 399858R92

1шт.

8

POPPET, pilot relief valve, not serviced separately, furnish valve assy 399858R92

1шт.

9

SPRING, pilot relief, not serviced separately, furnish valve assy 399858R92

1шт.

10

RING, cap retaining, not serviced separately, furnish valve assy. 399858R92

1шт.

11

POPPET, not serviced separately, furnish valve assy. 399858R92

1шт.

12

SEAT, valve, not serviced separately, furnish valve assy, 399858R92

1шт.
