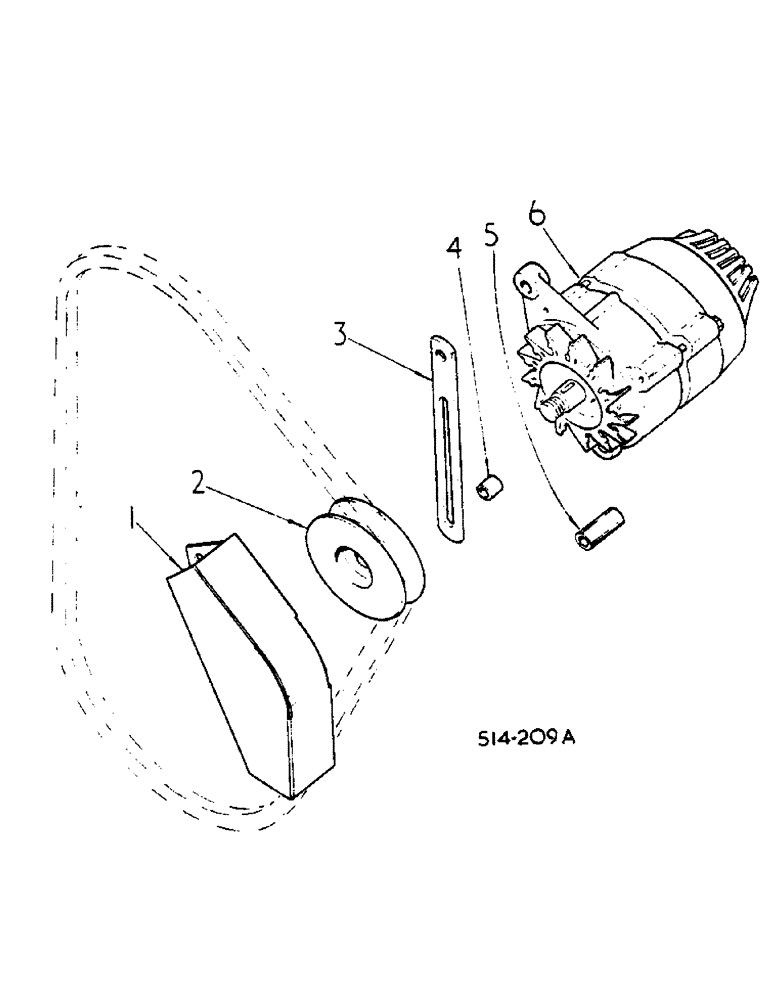

Запчасти Case IH 674 (08-02) - ALTERNATOR AND CONNECTIONS (06) - ELECTRICAL

1

3113673R2

SHIELD

cpte. alternator

1шт.

2

3113672R1

PULLEY

alternator

1шт.

3

3113336R1

BRACE

alternator

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

11/32 X 11/16 X .065

1шт.

4

3068374R1

SPACER

alternator brace

1шт.

187953

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

103320

LOCK WASHER,5/16"

1шт.

5

3113678R1

SPACER

alternator mounting

1шт.

6

3113331R91

ALTERNATOR

Lucas 15 ACR, for components, see list of parts under details or alternator

1шт.

272392

NUT,Hex, 5/16" - 18 x 4 3/4", Gr 5

5/16 X 4-3/4 hex hd

1шт.

120393

BEARING WASHER,5/16", SAE

11/32 X 11/16 X .065

1шт.
