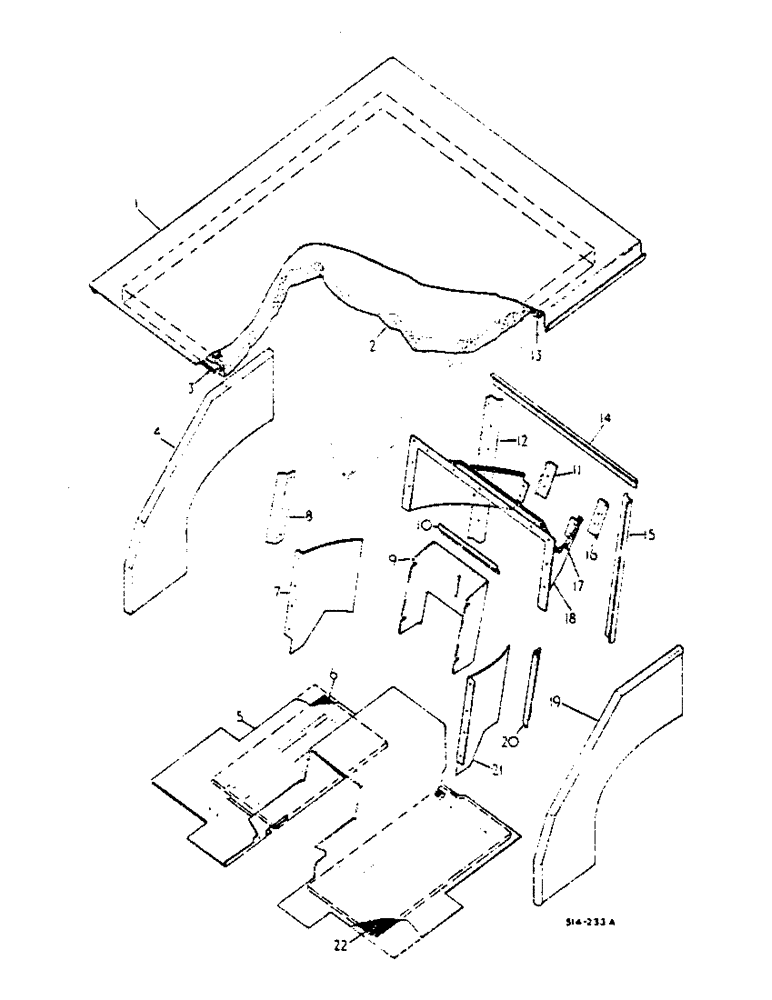

Запчасти Case IH 674 (13-23) - CAB INSULATION, DE-LUXE (05) - SUPERSTRUCTURE

3116451R91

KIT, safety cladding

1шт.

For tractors without automatic hitch and with outside check chains.

1шт.

1

KIT, safety cab cladding - factory application - - C.A.V. injection

1шт.

For tractors with automatic hitch and with outside check chains.

1шт.

3116459R91

KIT, safety cab cladding cpte.

1шт.

1

3116277R91

ROOF

PANEL, cpte.

1шт.

For tractors with automatic hitch and with outside check chains.

1шт.

2

3116278R1

LINING

INSULATOR

1шт.

For tractors with automatic hitch and with outside check chains.

1шт.

3

3113576R1

RUBBER SEAL

roof

2шт.

For tractors with automatic hitch and with outside check chains.

1шт.

4

3116280R1

PANEL, SIDE

INSULATOR ASSY, fender R.H.

1шт.

5

3112607R2

MAT

floor cpte.

1шт.

6

3116300R1

INSULATOR

floorplate R.H.

1шт.

7

3116291R1

INSULATOR

lower rear panel R.H.

1шт.

8

3116294R1

ANGLE

retaining R.H.

1шт.

19297R1

SPARE PART 1/4 reg lock cad

2шт.

3116385R1

SCREW

1/4 X 1-1/8 cross rec pan hd mach

2шт.

9

3116292R1

RUBBER

INSULATOR, steering support

1шт.

10

3116295R1

RETAINER

insulator

1шт.

11

3116289R1

PLATE

retaining R.H.

1шт.

24405R1

SCREW

no.12-14 X 1 pan hd cross

1шт.

RECESS tap type AB

2шт.

12

3116298R1

RETAINER

insulator side R.H.

1шт.

3115384R1

no.10 X 1 hex washer hd

6шт.

13

3113577R1

RUBBER SEAL

roof side

2шт.

For tractors with automatic hitch and with outside check chains.

1шт.

14

3116296R1

RETAINER

insulator top

1шт.

3116384R1

SELF-TAP SCREW

no.10 X 1 hex washer hd

7шт.

15

3116297R1

RETAINER

insulator side L.H.

1шт.

3116384R1

SELF-TAP SCREW

no. 10 X 1 hex washer hd

6шт.

16

3116288R1

PLATE

retaining L.H.

1шт.

24405R1

SCREW

no. 12-14 X 1 pan hd cross rec tap type AB

2шт.

17

3116287R1

STRIP

MOULDING, insulator

1шт.

18

3116286R1

PANEL

INSULATOR ASSY, instrument

1шт.

19

3116279R1

PANEL, SIDE

INSULATOR ASSY, fender L.H.

1шт.

20

3116293R1

ANGLE

retaining L.H.

1шт.

19297R1

SPARE PART 1/4 reg lock cad

2шт.

3116385R1

SCREW

1/4 X 1-1/8 cross rec pan hd mach

2шт.

21

3116290R1

PANEL, SIDE

INSULATOR, lower rear panel L.H.

1шт.

22

3116299R1

PANEL, SIDE

INSULATOR, floor plate L.H.

1шт.

3116274R91

top frame and fenders, not illustrated

1шт.

For tractors with automatic hitch and with outside check chains.

1шт.

1092861R1

PRODUCT GRAPHIC

fuel control, not illustrated

1шт.

For tractors without automatic hitch and with outside check chains.

1шт.

For tractors with automatic hitch and with outside check chains.

1шт.

1092869R1

DECAL

PRODUCT-GRAPHIC, fuel control, illustration shows parts as in an assembled form, not illustrated

1шт.

For tractors fitted with draft control, inside check chains and for use with rowcrop axles.

1шт.
