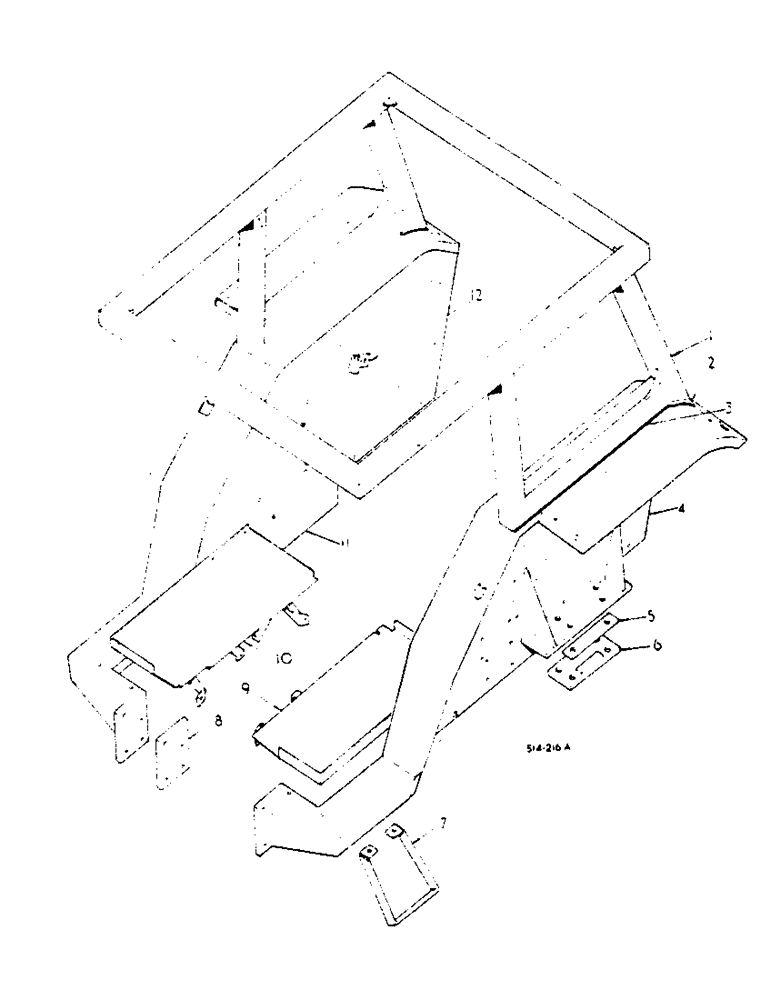

Запчасти Case IH 674 (13-15) - SAFETY FRAME (05) - SUPERSTRUCTURE

3113198R93

FRAME ASSY, safety with frame 3112382R94 and tool box 708194R92

1шт.

3113680R91

FRAME

ASSY, with frame 3112382R94

1шт.

3112382R94

FRAME

ASSY, safety cpte.

1шт.

1

3113531R1

FRAME

safety, top

1шт.

2

3113328R1

INSERT

2шт.

3

3112388R1

SEAL

SEAL, wing piping

2шт.

4

3112389R3

FENDER

ASSY, L.H.

1шт.

5

3112534R1

SHIM

axle carrier

2шт.

6

3112396R1

PLATE

axle clamping cpte.

2шт.

7

3112896R1

STEP

foot assy R.H.

1шт.

7

3112895R1

STEP

foot assy L.H.

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

4шт.

8

3112395R1

PLATE

SPARE PART front spacer

2шт.

9

3112393R1

PLATE

floor cpte. L.H.

1шт.

10

3112394R2

floor cpte. R.H.

1шт.

11

3112390R4

FENDER

ASSY, R.H.

1шт.

12

3113107R1

SUPPORT ASSY.

SOCKET, lower rear panel retaining

2шт.

109084

NUT,1/4"-20, G5

2шт.

179795

TILLAGE BLADE

1/4 X 3/4 hex hd cap

2шт.

80682

LOCK WASHER,1/4"

2шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

3/4-10 X 2-1/4 hex hd cap, lower frame to clutch hsg, not illustrated

8шт.

17287R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

SCREW, 3/4-10 X 7-1/2 hex hd cap, not illustrated

8шт.

220081

NUT

3/4-10 hex, lower frame to axle carrier, not illustrated

8шт.

179812

GEAR

5/16-18 X 1/2 hex hd cap, not illustrated

6шт.

103320

LOCK WASHER,5/16"

Fender to rear top cover, Not illustrated

6шт.

179812

GEAR

5/16-18 X 1/2 hex hd cap, not illustrated

2шт.

103320

LOCK WASHER,5/16"

Fender to trans shift hsg and draft control hsg, Not illustrated

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Not Illustrated

3шт.

103321

LOCK WASHER,3/8"

Fender to park brake bracket, Not illustrated

3шт.

19284R1

BOLT,Sq Nk, 3/8" - 16

3/8-16 sq nk crg, not illustrated

4шт.

102635

NUT,3/8"-16, G5

Not Illustrated

4шт.

103321

LOCK WASHER,3/8"

Not Illustrated

4шт.

120394

WASHER,3/8", SAE

.406 X .812 X .051, fender to floor plate, not illustrated

4шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

Not Illustrated

4шт.

103323

LOCK WASHER,1/2"

Not Illustrated

4шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Not Illustrated

2шт.

103321

LOCK WASHER,3/8"

Floor plate to clutch hsg, Not illustrated

2шт.

443087

STUD

no.4 X 5/16 froove drive, safety frame, approval and serial no. plate, not illustrated

2шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

3/4-10 X 2-1/4 hex hd cap, not illustrated

4шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex, top frame to fender, not illustrated

4шт.
