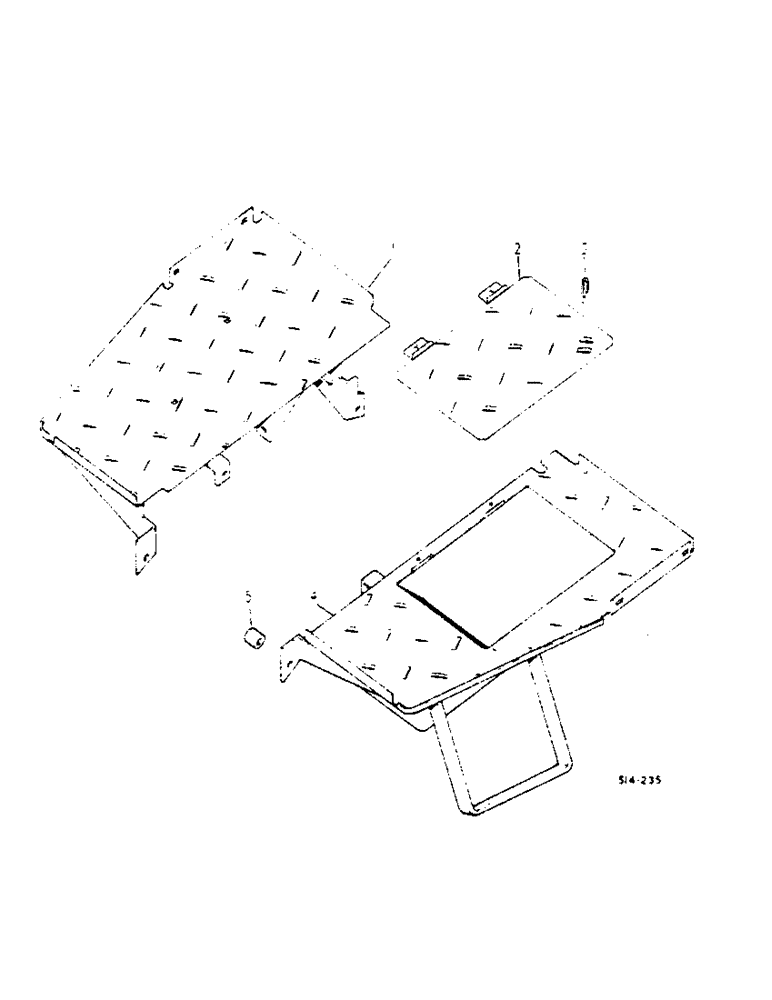

Запчасти Case IH 674 (13-07) - PLATFORM, MOUNTING STEP AND TOOL BOX (05) - SUPERSTRUCTURE

1

528523R2

STEP

PLATFORM ASSY, R.H.

1шт.

19284R1

BOLT,Sq Nk, 3/8" - 16

3/8-16 X 3/4 short sq nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

103323

LOCK WASHER,1/2"

2шт.

103321

LOCK WASHER,3/8"

3шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

2шт.

2

538421R1

COVER ASSY

tool

1шт.

3

528917R1

RING

finger pull

1шт.

4

528910R2

PLATFORM ASSY.

L.H.

1шт.

19284R1

BOLT,Sq Nk, 3/8" - 16

3/8-16 X 3/4 short sq nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

103323

LOCK WASHER,1/2"

2шт.

103321

LOCK WASHER,3/8"

3шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

2шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4-20 X 5/8 C-Z slt pan hd

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

5

528909R1

SPACER

L.H. platform

1шт.
