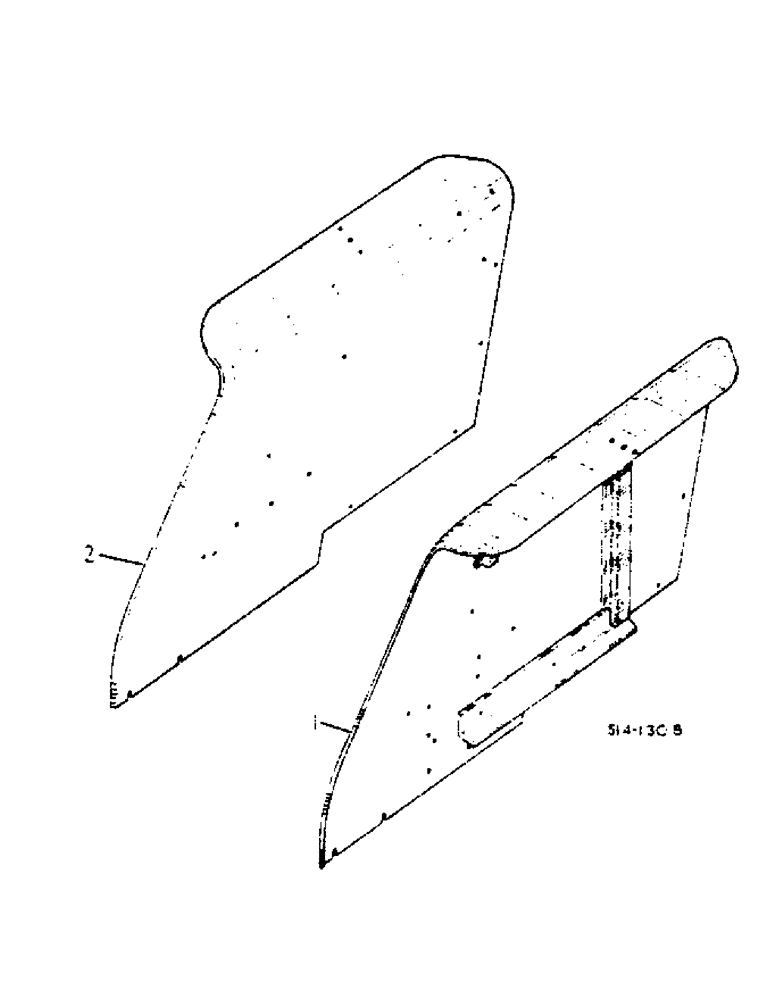

Запчасти Case IH 674 (13-06) - REAR FENDERS, CROWN TYPE (05) - SUPERSTRUCTURE

1

538641R1

FENDER ASSY.

FENDER, L.H. with product graphic

1шт.

2

530015R1

FENDER ASSY.

FENDER R.H.

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

6шт.

80681

LOCK WASHER,5/16"

To rear top cover

6шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

To transmission shift hsg or draft control hsg

2шт.

181163

SCREW,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 hex hd cap

4шт.

116121

LOCK WASHER,1/2"

To axle carrier

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 X 5/8 hex hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

To parking brake bracket

3шт.

3113657R1

PLUG

side and tail light blanking, not illustrated

4шт.

3113430R1

PLUG

side and tail light blanking, not illustrated

2шт.
