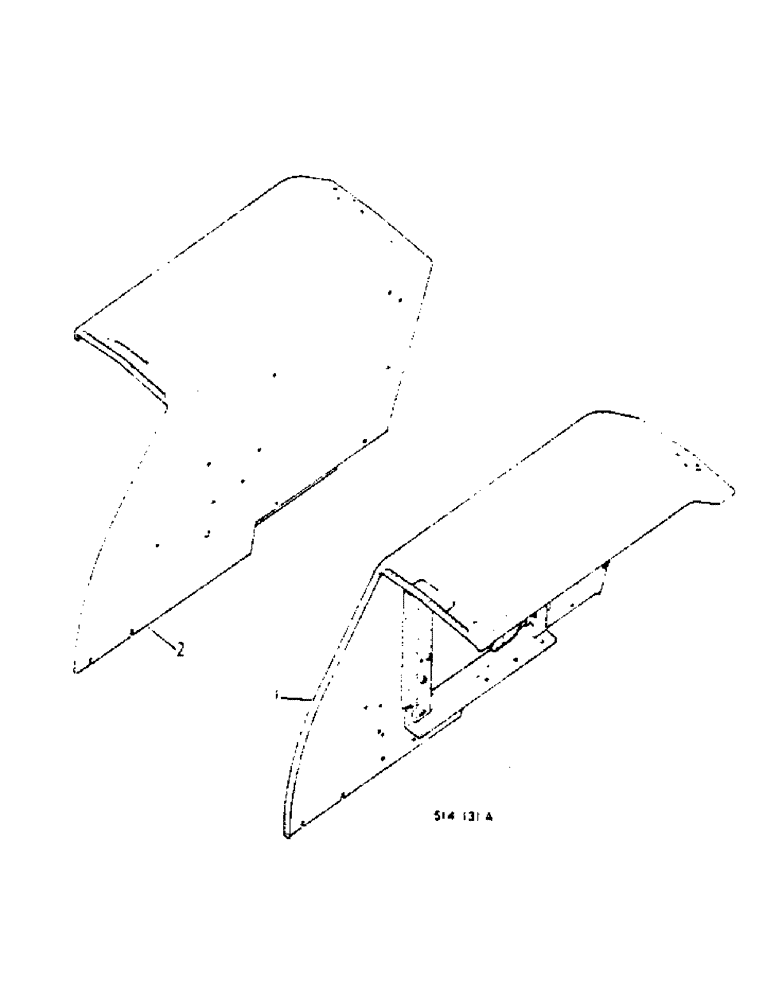

Запчасти Case IH 674 (13-05) - REAR FENDERS, FLAT TOP (05) - SUPERSTRUCTURE

1

538644R4

FENDER

with product graphic

1шт.

On orders for fenders 538644R1, 531003R3 order R4 fender with lamp 3116573R91 two screw 145 193.

1шт.

2

531003R4

FENDER

ASSY R.H.

1шт.

On orders for fenders 538644R1, 531003R3 order R4 fender with lamp 3116573R91 two screw 145 193.

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16-18 X 1-1/2 hex hd cap

2шт.

80681

LOCK WASHER,5/16"

To rear top cover

6шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

To transmission shift hsg or draft control hsg

2шт.

181163

SCREW,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 hex hd cap

4шт.

116121

LOCK WASHER,1/2"

To axle carrier

4шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 X 5/8 hex hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

To parking brake bracket

3шт.
