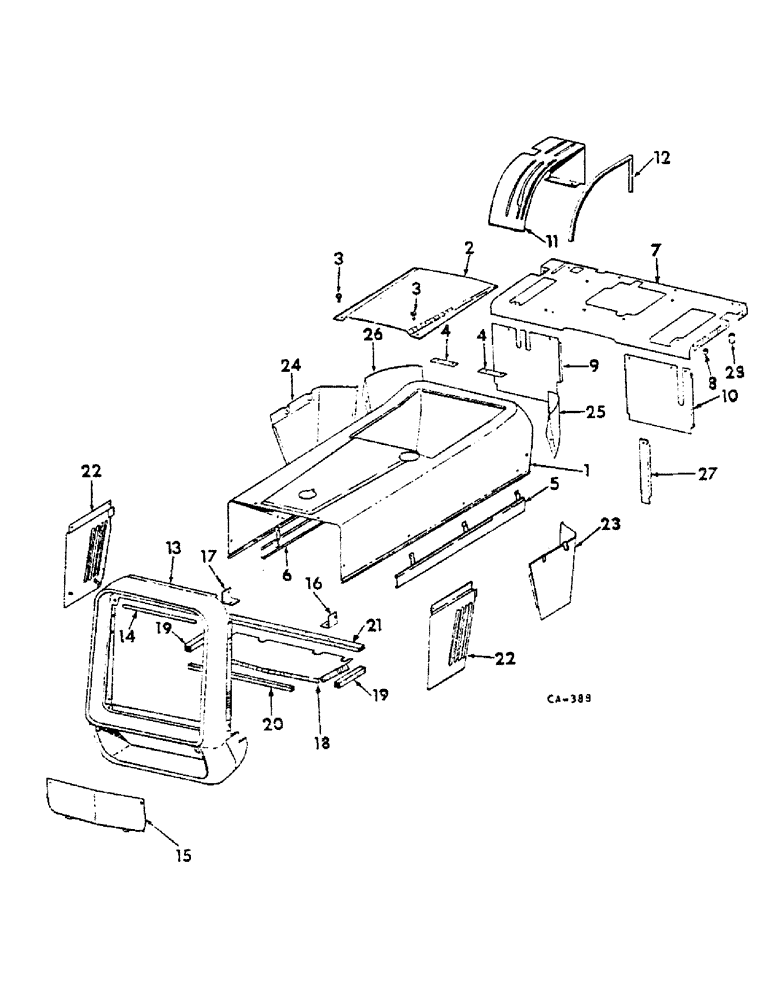

Запчасти Case IH 674 (13-02) - HOOD AND PANELS (05) - SUPERSTRUCTURE

1

405422R1

HOOD ASSY, tractors with underslung exhaust

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

2шт.

534458R1

NUT

hex 10-24 lock

6шт.

3479

WASHER,7/32" x 9/16" x .060"

7/32 X 9/16 X 16 GA

6шт.

381052R1

BOLT,Sl Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 C-Z hex washer hd cap

6шт.

1

406417R1

NO LONGER SERVICED

HOOD ASSY, tractors with vertical exhaust

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

2шт.

534458R1

NUT

hex 10-24 lock

6шт.

3479

WASHER,7/32" x 9/16" x .060"

7/32 X 9/16 X 16 GA

6шт.

381052R1

BOLT,Sl Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 C-Z hex washer hd cap

6шт.

534308R1

SHIELD

SHEET, asbestos

1шт.

534458R1

NUT

hex 10-24 lock

2шт.

3479

WASHER,7/32" x 9/16" x .060"

7/32 X 9/16 X 16 GA

2шт.

2

401933R11

COVER

ASSY, rear hood, glass fibre

1шт.

2

3113425R1

COVER

ASSY, rear hood, sheet metal, optional

1шт.

3118071T1

SEAL, rear hood cover

1шт.

3118072R1

SEAL ASSY.

rear hood cover

1шт.

3

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

2шт.

3

376787R1

WASHER

2шт.

4

406698R1

STRIP

rear hood cover retainer

2шт.

155937

SCREW,Cross Flat Hd, #10 - 24 x 1/2"

10-24 X 5/8 cr rec f hd mach

4шт.

106497

LOCK WASHER,#10

4шт.

110633

NUT,#10-24

4шт.

5

538362R1

PANEL

ASSY, lower hood LH

1шт.

6

538363R1

PANEL

ASSY, lower hood R.H.

1шт.

157728

SCREW

1/4-20 X 5/8 C-Z cr rec truss hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

2шт.

7

528640R3

COVER

ASSY, rear top

1шт.

172449

SCREW,Hex, 5/8" - 18 x 1/2"

5/16-18 X 1/2 hex hd tap

5шт.

80681

LOCK WASHER,5/16"

5шт.

120368

NUT,5/16"-24, G5

5шт.

8

401941R1

SPACER

mounting, short

2шт.

9

527858R2

ANGLE

CHANNEL ASSY, rear vertical RH

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 X 1/2 C-Z hex hd tap

2шт.

10

528638R1

CHANNEL

ASSY, rear vertical LH

1шт.

180018

CONNECTING LINK

SCREW, 1/4-20 X 1/2 C-Z hex hd tap

3шт.

10

528473R1

PLATE

SECTION ASSY, vertical inner, tractors with hand operated drum brake

1шт.

11

529457R31

COVER

ASSY, hitch control lever

1шт.

12

- NOT USED -

1шт.

13

537180R1

HOUSING

ASSY, radiator grille

1шт.

103321

LOCK WASHER,3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

14

530854R1

MOLDING

air baffle edge

1шт.

15

402427R1

PANEL

ASSY, grille lower front

1шт.

157728

SCREW

1/4-20 X 5/8 C-Z cr rec truss hd mach

2шт.

16

406696R1

BRACKET

grille housing angle L.H.

1шт.

17

406697R1

BRACKET

grille housing angle R.H.

1шт.

180144

RETAINER

7/16-14 X 7/8 C-Z hex hd cap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

2шт.

18

402457R1

BAFFLE

radiator lower

1шт.

19

389838R1

FOAM

GASKET, radiator baffle lower

2шт.

20

370181R1

GASKET

radiator baffle

1шт.

21

394788R1

GASKET

radiator baffle

1шт.

22

402458R1

PANEL

ASSY, grille side L.H.

1шт.

22

402459R1

PANEL

ASSY, grille side R.H.

1шт.

172439

SPACER

1/4-28 X 1/2 C-Z slt hex hd cap

4шт.

103319

LOCK WASHER,1/4"

2шт.

109084

NUT,1/4"-20, G5

2шт.

120392

WASHER,1/4", SAE

9/32 X 5/8 X .051

2шт.

23

538366R1

PANEL

lower side rear L.H.

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 X 5/8 hex washer hd cap

3шт.

24

538367R1

PANEL

lower side rear R.H.

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 X 5/8 hex washer hd cap

3шт.

25

402423R1

PANEL

L.H.

1шт.

26

402424R1

PANEL

R.H.

1шт.

27

528475R1

SPARE PART ASSY, verticle outer, tractor with hand operated drum brake

1шт.

28

401940R2

SPARE PART mounting

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

529384R11

HOUSING

ASSY, trans shift, not illustrated

1шт.
