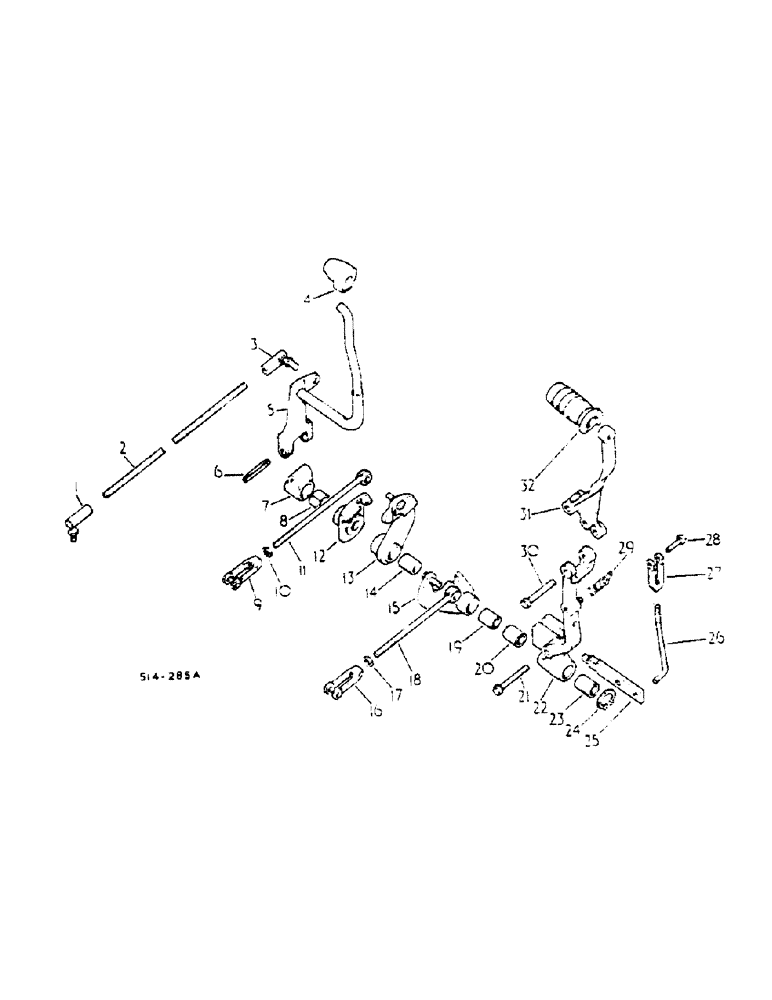

Запчасти Case IH 674 (07-36) - TRANSMISSION CONTROLS, SYNCHROMESH DRIVE (04) - Drive Train

1

537469R1

SWING JOINT

3/8-24 X 1-3/32 ball

1шт.

1

392594R1

END ASSY.

JOINT, 3/8-24 X 1-3/32 ball, optional

1шт.

103026

NUT,3/8"-24, G5

1шт.

2

528122R1

ROD

speed shift lever

1шт.

3

537469R1

SWING JOINT

3/8-24 X 1-3/32 ball

1шт.

3

392594R1

END ASSY.

JOINT, 3/8-24 X 1-3/32 ball, optional

1шт.

103026

NUT,3/8"-24, G5

1шт.

4

379022R2

KNOB

speed shift lever

1шт.

5

530532R1

LEVER

ASSY, speed shift

1шт.

6

366281R1

PIN,3/8" x 2", Coiled

1шт.

7

530932R1

HUB ASSY.

transmission shift hand lever

1шт.

615192R1

WASHER

29/32 X 1-1/4 X .0299

1шт.

8

539245R1

BUSHING

1шт.

9

161003C1

NO LONGER SERVICED

CLEVIS CLEVIS, 3/8-24 X 2-1/4 rod end

1шт.

9

213-316

ADJUSTABLE CLEVIS,3/8" - 24

3/8-24 X 2-3/16 short rod end, optional

1шт.

865197R1

CLEVIS PIN,3/8" x 1.218"

3/8 X 1-7/32 rod end

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

10

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

11

528141R1

ROD ASSY.

range shift rear

1шт.

12

528123R1

PIVOT ASSY.

GATE ASSY, range shift

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

1шт.

13

528126R2

LEVER ASSY.

idler shaft inner

1шт.

Q3641

WASHER

13/32 X 3/4 X .020

1шт.

107761

COTTER PIN,1/16" x 5/8"

1шт.

14

539245R1

BUSHING

1шт.

15

528129R1

LEVER ASSY.

idler shaft outer

1шт.

Q3641

WASHER

13/32 X 3/4 X .020

1шт.

107761

COTTER PIN,1/16" x 5/8"

1шт.

16

161003C1

NO LONGER SERVICED

CLEVIS CLEVIS, 3/8-24 X 2-1/4 rod end

1шт.

16

213-316

ADJUSTABLE CLEVIS,3/8" - 24

3/8-24 X 2-3/16 short, adj rod, optional

1шт.

865197R1

CLEVIS PIN,3/8" x 1.218"

3/8 X 1-7/32 rod end

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

17

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

18

528139R1

ROD ASSY.

range shift front

1шт.

19

539245R1

BUSHING

1шт.

20

539245R1

BUSHING

1шт.

21

22963R1

HEADED PIN,5/16" x 2 1/4"

5/16 X 2-1/4 std hd

1шт.

22

530933R1

LEVER

ASSY, range shift

1шт.

95-11034

WASHER,1/4"

11/32 X 11/16 X .051

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

23

539245R1

BUSHING

1шт.

24

454331R1

SNAP RING,#87, Ext

Shift lever

1шт.

25

528134R1

LATCH

range shift lever

1шт.

26

528135R1

ROD

range shift lever

1шт.

95-11034

WASHER,1/4"

11/32 X 11/16 X .051

1шт.

107762

WASHER,3/32" x 5/8"

1шт.

27

104037

CLEVIS

5/16-24 X 2-1/4 rod end

1шт.

27

161002C1

NO LONGER SERVICED

CLEVIS CLEVIS, 5/16-24 X 2-1/4 rod end, optional

1шт.

28

39374D

CLEVIS PIN,5/16" x 1 1/16"

5/16 X 1-1/16 rod end

1шт.

29

528136R1

SPRING

lever shift return

1шт.

30

22963R1

HEADED PIN,5/16" x 2 1/4"

5/16 X 2-1/4 std hd

1шт.

31

528137R1

LEVER

range shift upper

1шт.

32

528138R1

HANDLE

range shift upper leve;

1шт.

426372

HEX SOC SCREW,3/8" - 16 x 2 3/4"

3/8-16 X 2-3/4 ZN soc hd cap

1шт.
