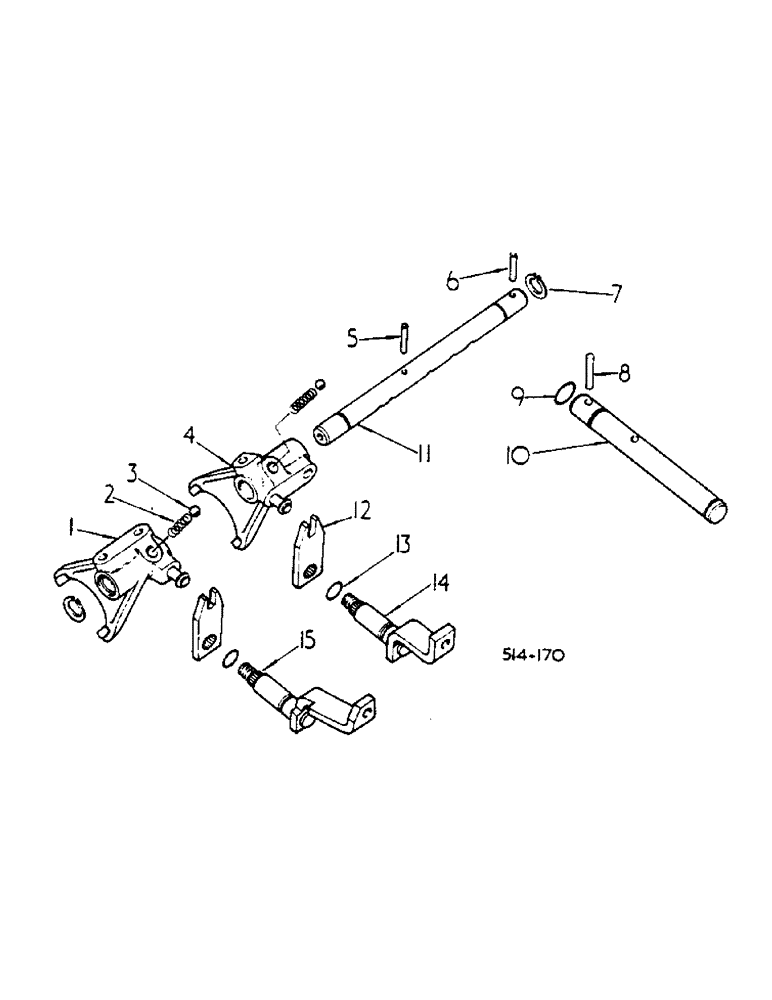

Запчасти Case IH 674 (07-35) - GEAR SHIFT MECHANISM, RANGE TRANSMISSION (04) - Drive Train

1

538911R4

FORK

front

1шт.

2

534053R1

SPRING

poppet ball

2шт.

3

17013R1

BALL,13/32" Dia

2шт.

3

16013R1

BALL

13/32 cr stl, optional

1шт.

4

538912R4

FORK

rear

1шт.

4

402148R1

EXCITER

FORK

1шт.

5

20122R1

PIN,1/4" x 1 1/2", Coiled

1шт.

6

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

7

661652R1

SNAP RING,#75, Ext

Shift fork rail

3шт.

8

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

1шт.

9

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 X 7/8 X 3/32

1шт.

10

402152R1

SHAFT

range trans shift lever idler

1шт.

11

537473R1

RAIL ASSY.

range shift fork

1шт.

12

405169R2

ARM

range shift inner

2шт.

19605R1

LOCK NUT,1/2"-13, GB

1/2-13 nylon insert

2шт.

13

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 X 3/4 X 3/32

2шт.

14

405167R2

ARM

ASSY, range shift outer rear

1шт.

Q3501

WASHER

25/32 X 1-1/4 X .060

2шт.

15

405164R2

ARM

ASSY, range shift outer front

1шт.

Q3501

WASHER

25/32 X 1-1/4 X.060

2шт.
