Запчасти Case IH 674 (07-25) - INDEPENDENT POWER TAKE OFF DUAL SPEED (04) - Drive Train

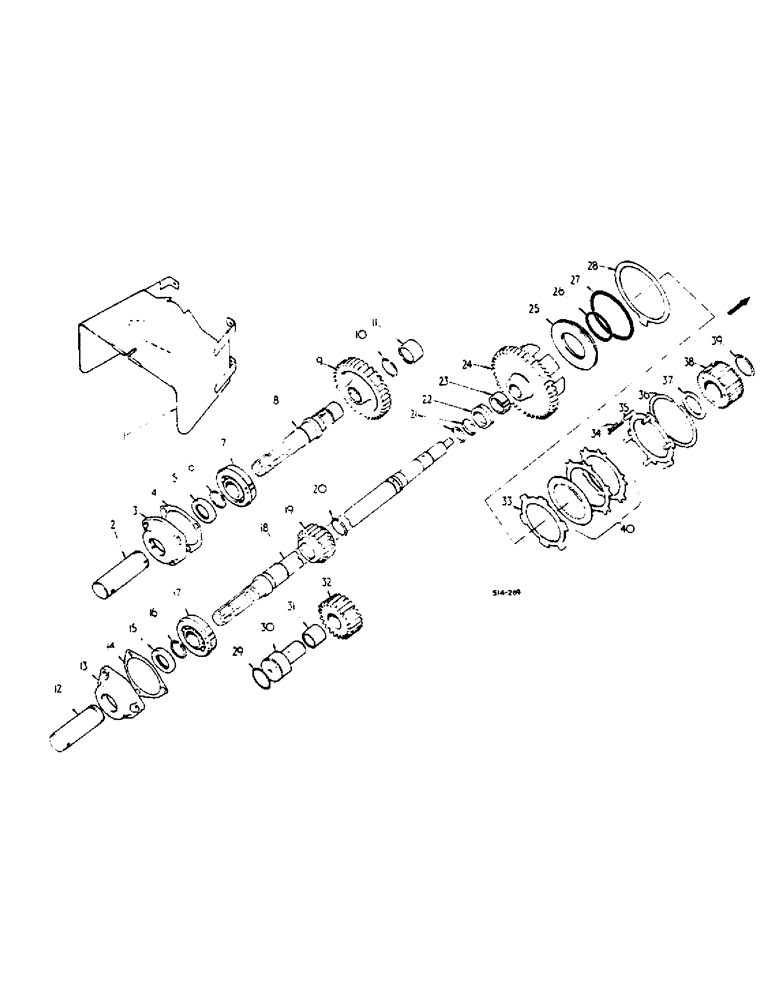

Схема запчастей Case IH 674 - (07-25) - INDEPENDENT POWER TAKE OFF DUAL SPEED (04) - Drive Train
16
4
23
25
29
32
9
21
22
24
39
33
35
10
40
14
3
30
8
36
31
11
27
37
38
2
7
20
5
13
17
26
19
12
6
15
18
28
34

Артикул

Название

Примечание

Количество

1

401734R1

GUARD ASSY.

SHIELD ASSY, IPTO safety

1шт.

1

528481R1

SHIELD

ASSY, IPTO safety, tractors with hand operated drum brake

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

2

406808R1

TUBE

ASSY, IPTO shaft protection

1шт.

3

401725R1

NO LONGER SERVICED

FLANGE/Retired FLANGE, IPTO shaft brg.

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

4

399843R2

GASKET

shaft brg. retainer

1шт.

5

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

shaft

1шт.

6

607186R1

SNAP RING,#156, Ext

Brg

1шт.

7

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

shaft ball

1шт.

8

3113017R1

SHAFT

upper output

1шт.

9

66192C1

GEAR

upper driven -36T-

1шт.

10

336000R1

SNAP RING,#175, 1.640", Ext

driven gear retainer

1шт.

11

112821R91

NEEDLE BEARING

shaft needle

1шт.

11

528103R91

BEARING, NEEDLE

shaft, optional

1шт.

12

406808R1

TUBE

ASSY, IPTO shaft protection

1шт.

13

401725R1

NO LONGER SERVICED

FLANGE/Retired FLANGE, IPTO shaft bearing

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

14

399843R2

GASKET

shaft brg. retainer

1шт.

15

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

shaft

1шт.

16

607186R1

SNAP RING,#156, Ext

Brg

1шт.

17

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

shaft

1шт.

17

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

shaft

1шт.

17

533615R1

BEARING

shaft ball

1шт.

17

538962R1

BEARING, shaft ball, optional

1шт.

18

66485C1

SHAFT ASSY.

1000 RP, 6 spline

1шт.

18

66180C1

SHAFT

ASSY, 1000 RPM, 21 spline

1шт.

19

404232R1

GEAR

lower shaft drive -21T-

1шт.

20

336000R1

SNAP RING,#175, 1.640", Ext

driven gear retainer

1шт.

21

166972R1

RING

shaft sealing

2шт.

22

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

lower shaft

1шт.

23

565232R1

BEARING

lower shaft needle

1шт.

24

66068C1

GEAR

clutch cup -44T, with provision for side PTO

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

25

401722R1

PISTON

clutch

1шт.

26

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

piston seal, inner

1шт.

27

401724R1

SEAL,0.551" ID x 0.07" Width

piston seal, outer

1шт.

28

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO brake

1шт.

29

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 X 2-1/4 X 3/32

1шт.

30

401726R1

SHAFT

IPTO idler

1шт.

31

570450R1

BEARING

idler shaft needle

1шт.

31

528105R91

BEARING, NEEDLE

idler shaft, optional

1шт.

32

401727R1

PINION

GEAR, idler -24T-

1шт.

33

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

piston return

1шт.

34

66182C1

SPRING

piston return

6шт.

35

66186C1

PLATE

ASSY, clutch backing

1шт.

20020R1

DOWEL,5/16" x 1"

5/16 X 1 dowel

6шт.

36

401720R1

CIRCLIP

backing plate

1шт.

37

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

38

66183C2

HUB ASSY.,45T

clutch

1шт.

39

401756R1

SNAP RING,#206, 1.936", Ext

1шт.

40

66193C91

PACKAGE

clutch plate, service, consists of

1шт.

L

OIL SEAL

DISC

5шт.

L

OIL SEAL

PLATE

8шт.

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

1шт.

66182C1

SPRING

6шт.

1092810R1

PRODUCT GRAPHIC

IPTO speed, not illustrated

1шт.

1092807R1

DECAL

PRODUCT-GRAPHIC, IPTO speed warning, not illustrated

1шт.

Выбрано товаров: 59
