Запчасти Case IH 674 (07-23) - INDEPENDENT POWER TAKE OFF SINGLE (04) - Drive Train

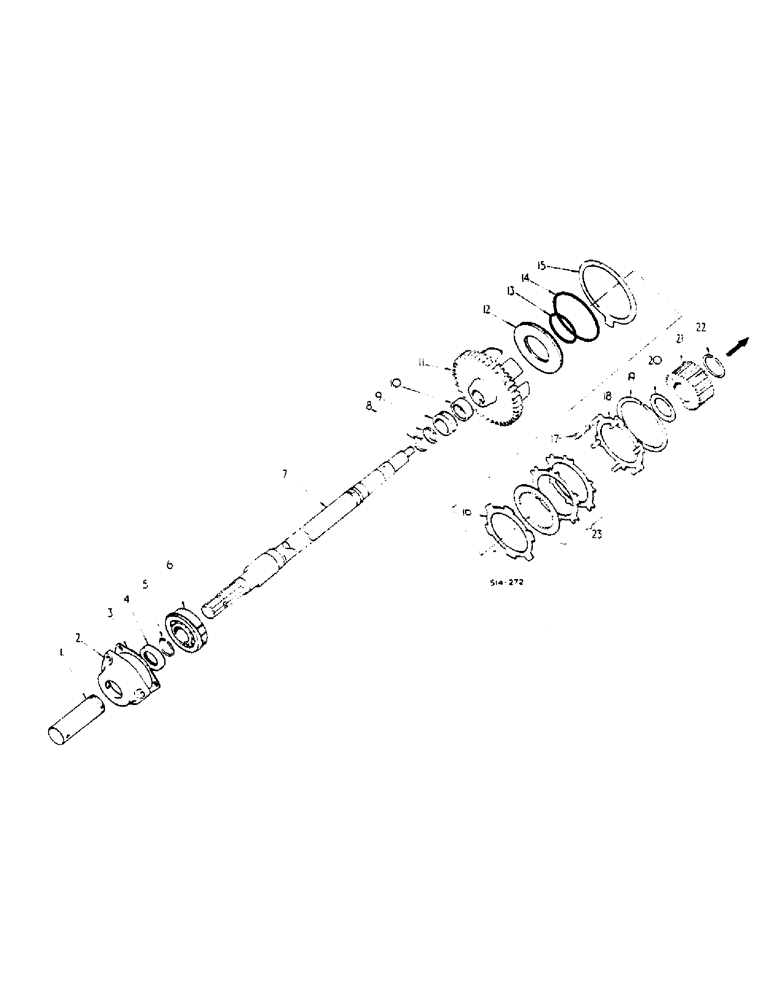

Схема запчастей Case IH 674 - (07-23) - INDEPENDENT POWER TAKE OFF SINGLE (04) - Drive Train
23
2
17
3
19
10
22
5
1
12
6
11
14
20
21
15
13
18
4
8
9
7

Артикул

Название

Примечание

Количество

1

406808R1

TUBE

ASSY, IPTO shaft protection

1шт.

2

401725R1

NO LONGER SERVICED

FLANGE/Retired FLANGE, IPTO shaft bearing

1шт.

Belt Pulley Drive For Use with Belt Pulley Attachment.

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

3

399843R2

GASKET

shaft brg. retainer

1шт.

4

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

shaft

1шт.

Belt Pulley Drive For Use with Belt Pulley Attachment.

1шт.

5

607186R1

SNAP RING,#156, Ext

Brg

1шт.

6

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

shaft

1шт.

6

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

shaft

1шт.

6

533615R1

BEARING

shaft

1шт.

6

538962R1

BEARING, shaft ball, optional

1шт.

7

66485C1

SHAFT ASSY.

compressor drive

1шт.

7

66180C1

SHAFT

ASSY, belt pulley drive

1шт.

Belt Pulley Drive For Use with Belt Pulley Attachment.

1шт.

8

166972R1

RING

shaft sealing

2шт.

9

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

lower shaft

1шт.

10

565232R1

BEARING

lower shaft needle

1шт.

11

66068C1

GEAR

clutch cup -44T, with provision for side P.T.O.

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

12

401722R1

PISTON

clutch

1шт.

13

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

piston seal, inner

1шт.

14

401724R1

SEAL,0.551" ID x 0.07" Width

piston seal, outer

1шт.

15

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO brake

1шт.

16

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

piston return

1шт.

17

66182C1

SPRING

piston return

6шт.

18

66186C1

PLATE

ASSY, clutch backing

1шт.

20020R1

DOWEL,5/16" x 1"

5/16 X 1 dowel

6шт.

19

401720R1

CIRCLIP

backing plate

1шт.

20

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

21

66183C2

HUB ASSY.,45T

clutch

1шт.

22

401756R1

SNAP RING,#206, 1.936", Ext

1шт.

23

66193C91

PACKAGE

clutch plate, service, consists of

1шт.

L

OIL SEAL

DISC

5шт.

L

OIL SEAL

PLATE

8шт.

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

1шт.

66182C1

SPRING

6шт.

1092811R1

DECAL

PRODUCT-GRAPHIC, IPTO speed, for synchromesh drive tractors, not illustrated

1шт.

1092807R1

DECAL

PRODUCT-GRAPHIC, IPTO speed warning, for synchromesh tractors, not illustrated

1шт.

Belt Pulley Drive For Use with Belt Pulley Attachment.

1шт.

Выбрано товаров: 41
