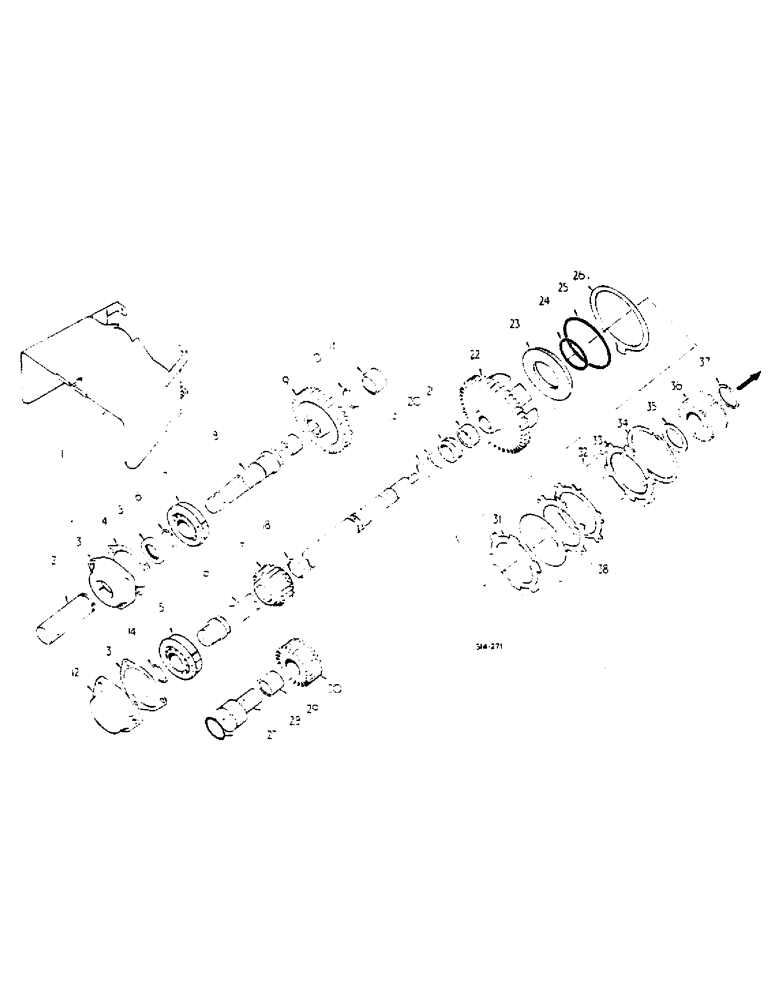

Запчасти Case IH 674 (07-21) - INDEPENDENT POWER TAKE OFF SINGLE SPEED (04) - Drive Train

1

401734R1

GUARD ASSY.

SHIELD ASSY, I.P.T.O. safety

1шт.

1

528481R1

SHIELD

ASSY, I.P.T.O. safety, tractors with hand operated drum brakes

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

2

406808R1

TUBE

ASSY, IPTO shaft protection

1шт.

3

401725R1

NO LONGER SERVICED

FLANGE/Retired FLANGE, IPTO shaft brg.

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

4

399843R2

GASKET

shaft brg. retainer

1шт.

5

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

shaft

1шт.

6

607186R1

SNAP RING,#156, Ext

Brg

1шт.

7

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

shaft ball

1шт.

8

3113017R1

SHAFT

upper output

1шт.

9

404237R1

PINION

GEAR, upper driven -36T-

1шт.

10

336000R1

SNAP RING,#175, 1.640", Ext

driven gear retainer

1шт.

11

112821R91

NEEDLE BEARING

shaft needle

1шт.

11

528103R91

BEARING, NEEDLE

shaft, optional

1шт.

12

66191C1

FLANGED BEARING

IPTO shaft bearing

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

13

399843R2

GASKET

shaft brg. retainer

1шт.

14

607186R1

SNAP RING,#156, Ext

Brg

1шт.

15

BEARING, shaft ball

1шт.

15

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

shaft ball

1шт.

16

66189C1

SHAFT ASSY.

IPTO driving

1шт.

17

404232R1

GEAR

lower shaft drive -21T-

1шт.

18

336000R1

SNAP RING,#175, 1.640", Ext

driven gear retainer

1шт.

19

166972R1

RING

shaft sealing

2шт.

20

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

lower shaft

1шт.

21

565232R1

BEARING

lower shaft needle

1шт.

22

66068C1

GEAR

clutch cup -44T, with provision for side P.T.O.

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

23

401722R1

PISTON

clutch

1шт.

24

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

piston seal, inner

1шт.

25

401724R1

SEAL,0.551" ID x 0.07" Width

piston seal, outer

1шт.

26

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO brake

1шт.

27

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 X 2-1/4 X 3/32

1шт.

28

401726R1

SHAFT

IPTO idler

1шт.

29

570450R1

BEARING

idler shaft needle

1шт.

29

528105R91

BEARING, NEEDLE

idler shaft, optional

1шт.

30

401727R1

PINION

GEAR, idler -24T-

1шт.

31

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

piston return

1шт.

32

66182C1

SPRING

piston return

6шт.

33

66186C1

PLATE

ASSY, clutch backing

1шт.

20020R1

DOWEL,5/16" x 1"

5/16 X 1 dowel

6шт.

34

401720R1

CIRCLIP

backing plate

1шт.

35

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

36

66183C2

HUB ASSY.,45T

clutch

1шт.

37

401756R1

SNAP RING,#206, 1.936", Ext

1шт.

38

66193C91

PACKAGE

clutch plate, service, consists of

1шт.

L

OIL SEAL

DISC

5шт.

L

OIL SEAL

PLATE

8шт.

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

1шт.

701724R1

O-RING

1шт.

66182C1

SPRING

6шт.

1092847R1

DECAL

PRODUCT-GRAPHIC, IPTO speed, for synchromesh drive tractors, not illustrated

1шт.
