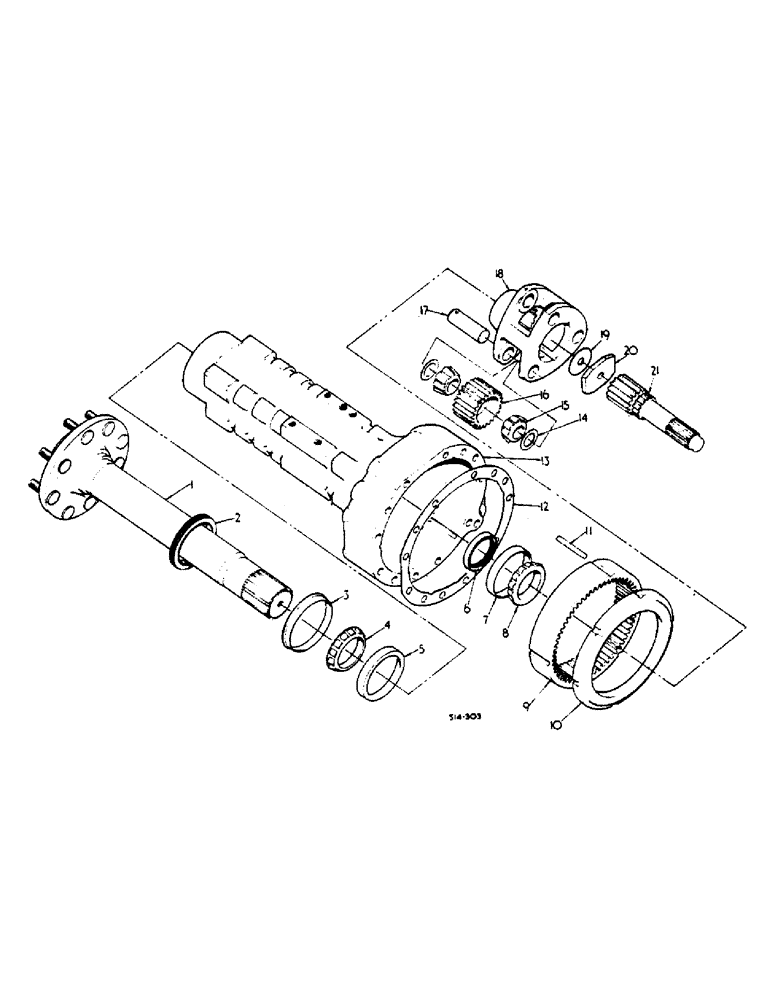

Запчасти Case IH 674 (07-17) - REAR AXLE, CARRIER AND CONNECTIONS (04) - Drive Train

1

404345R13

HALF SHAFT

AXLE ASSY, rear

2шт.

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT, rear wheel

16шт.

3047575R2

NUT,Wheel, 5/8"-18

rear wheel

16шт.

1

528441R11

SPARE PART

AXLE ASSY, rear, tractors with hand operated drum brake

2шт.

528440R1

BOLT

rear wheel

16шт.

113914

SCREW

5/16-18 X 1 slt f hd mach

4шт.

1

527353R11

AXLE, REAR

AXLE REAR rear, row crop

2шт.

2

105471C1

OIL SEAL

rear axle, outer

2шт.

3

399796R1

SLEEVE

SLEEVE, wear

2шт.

4

ST2129

BEARING ASSY,77.79mm ID x 23.01mm W

rear axle, outer

2шт.

4

383970R91

BEARING ASSY,3.0635" ID x 4.7822" OD x 0.6875, 0.9688"

rear axle, outer

2шт.

4

383971R91

BEARING CONE

rear axle, outer, optional

2шт.

5

ST988

BEARING CUP,121.44mm OD x 17.46mm W

rear axle, outer cup

2шт.

5

572901R1

BEARING, CUP,121.4552 mm OD x 24.7091 mm

rear axle outer cup

2шт.

5

388266R1

BEARING, rear axle, outer cup, optional

2шт.

6

399798R91

OIL SEAL

rear axle, inner

2шт.

6

530102R91

OIL SEAL

rear axle, inner, optional

2шт.

7

972466R1

BEARING CUP,112.7252 mm OD x 25.5016 mm

BEARING, rear axle, inner cup

2шт.

7

379379R1

BEARING CUP

rear axle, inner, optional

2шт.

8

972465R91

BEARING ASSY,69.8565 mm ID x 25.311 mm

ASSY, rear axle, inner cone

2шт.

8

399800R91

BEARING ASSY

ASSY, rear axle, inner, optional

2шт.

9

535317R1

GEAR, RING

RING, GEAR 66T

2шт.

10

399760R1

RING

brake, outer disc

2шт.

11

529686R1

DOWEL

PIN

6шт.

12

399762R1

GASKET

rear axle carrier

2шт.

13

399801R1

AXLE CARRIER

rear, L.H.

1шт.

13

528444R1

AXLE CARRIER

rear, L.H. tractors with hand operated brake

1шт.

13

399803R1

AXLE CARRIER

rear, R.H.

1шт.

13

528445R1

AXLE CARRIER

rear, R.H., tractors with hand operated brake

1шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

5/8-11 X 4-1/4 hex hd cap, Course Threads

22шт.

13

527355R1

AXLE CARRIER

rear, L.H.

1шт.

13

527356R1

AXLE CARRIER

rear, R.H., row crop

1шт.

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

SCREW, 5/8-11 X 4-1/2 hex hd cap, Course Threads

20шт.

18285R1

SPARE PART SCREW, /5/8-11 X 6-1/4 hex hd cap

2шт.

14

65421C1

SHIM KIT

PACKAGE, planet gear, service

1шт.

15

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

ASSY, planet gear

12шт.

16

66128C1

PLANETARY GEAR

6шт.

17

399812R1

SHAFT

PIN, planet

6шт.

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.

18

404344R2

GEAR

CARRIER, planet gear

2шт.

19

65422C1

SHIM KIT

PACKAGE, rear axle

1шт.

20

399748R1

SPACER

planet carrier ret.

2шт.

20668R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

5/8-18 X 1-1/2 hex hd cap

2шт.

21

404343R1

SHAFT

planetary drive R.H.

1шт.

21

404342R1

SHAFT

planetary drive L.H.

1шт.

373941R2

SOCKET WRENCH

TOOL, 1-5/16 handle box, not illustrated

1шт.

385718R2

EXTENSION

wrench, for rear wheel hub bolts, row crops

1шт.
