Запчасти Case IH 674 (07-15) - DIFFERENTIAL LOCK (04) - Drive Train

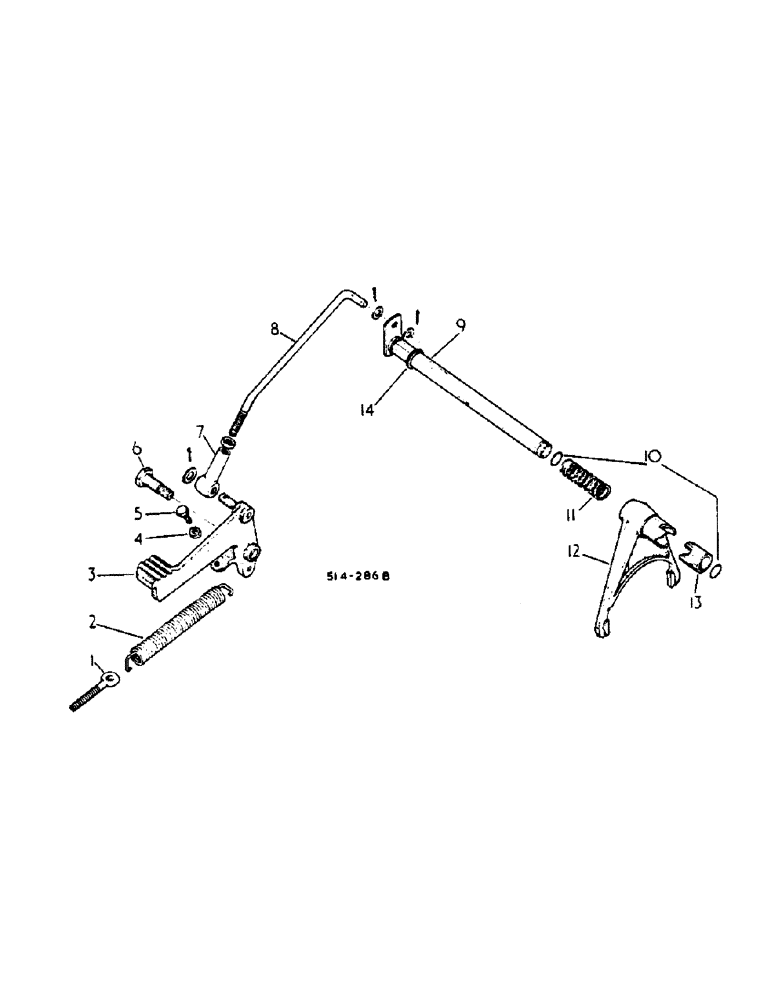

Схема запчастей Case IH 674 - (07-15) - DIFFERENTIAL LOCK (04) - Drive Train
2
1
11
7
1
1
1
12
5
10
4
14
8
3
6
13
9

Артикул

Название

Примечание

Количество

1

530046R1

BOLT

pedal return spring eye

1шт.

102635

NUT,3/8"-16, G5

2шт.

2

527886

SPRING

diff. lock pedal return

1шт.

3

66441C1

PEDAL

diff. lock

1шт.

11002VA

WASHER

17/32 X 7/8 X 1/16

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

4

109084

NUT,1/4"-20, G5

1шт.

5

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

6

527885R1

BOLT

BOLT, diff. lock pedal return

1шт.

7

527880R1

END

diff. lock pedal return

1шт.

8

527879R1

ROD

diff. lock pedal

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

Q1597

WASHER

13/32 X 3/4 X 1/16

2шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

9

65346C1

SHAFT

ASSY, diff. lock

1шт.

365704R1

PIN,1/8" x 5/8", Coiled

674, Serial Range: 103408-103675

1шт.

On orders for shaft 65346C1, furnish 527871R1 with fork 527874R3, cam 827877R1 and pin 19885R1.

1шт.

365704R1

PIN,1/8" x 5/8", Coiled

674, Serial Range: 103764-104256

1шт.

On orders for shaft 65346C1, furnish 527871R1 with fork 527874R3, cam 827877R1 and pin 19885R1.

1шт.

9

527871R1

SHAFT ASSY.

diff. lock, 674, Serial Range: -103497

1шт.

9

527871R1

SHAFT ASSY.

diff. lock, Serial Range: 103676-103763

1шт.

9

527871R1

SHAFT ASSY.

diff. lock, 674, Start Serial: 104257

1шт.

10

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 X 3/4 X 3/32

2шт.

11

527878R1

SPRING

diff. lock for actuating

1шт.

12

65438C1

FORK ASSY, diff. lock shaft, 674, Serial Range: 103408-103675

1шт.

On orders for fork 65348C1, furnish fork 527874R3 with shaft 527871R1, cam 527877R1 and pin 19885C1.

1шт.

12

65438C1

FORK ASSY, diff. lock shaft, 674, Serial Range: 103764-104256

1шт.

On orders for fork 65348C1, furnish fork 527874R3 with shaft 527871R1, cam 527877R1 and pin 19885C1.

1шт.

12

527874R3

FORK

ASSY, diff. lock shaft

1шт.

13

527877R1

CAM

diff. lock shaft

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

674, Serial Range: -103497

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

, Serial Range: 103676-103763

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

674, Start Serial: 104257

1шт.

14

551658R1

WASHER

25/32 X 1-1/4 X 22 GA

1шт.

14

Q3501

WASHER

25/32 X 1-1/4 X 16 GA, as required

1шт.

237672R1

PAD

diff. lock pedal, used with two piece pedal, not illustrated

1шт.

16809R1

SPARE PART 1/2 X 1-5/16 rod end, not illustrated

1шт.

11002VA

WASHER

17/32 X 7/8 X 1/16, not illustrated

1шт.

103384

COTTER PIN,1/8" x 3/4"

Used with two piece pedal, not illustrated

1шт.

65350C1

NO LONGER SERVICED

PIN, diff. lock cam actuating, order shaft 527871R1, fork 527784R3, cam 527877R1 and pin 19885R1, 674, Serial Range: 103408-103675

1шт.

65350C1

NO LONGER SERVICED

PIN, diff. lock cam actuating, order shaft 527871R1, fork 527784R3, cam 527877R1 and pin 19885R1, 674, Serial Range: 103704-104256

1шт.

Выбрано товаров: 41
