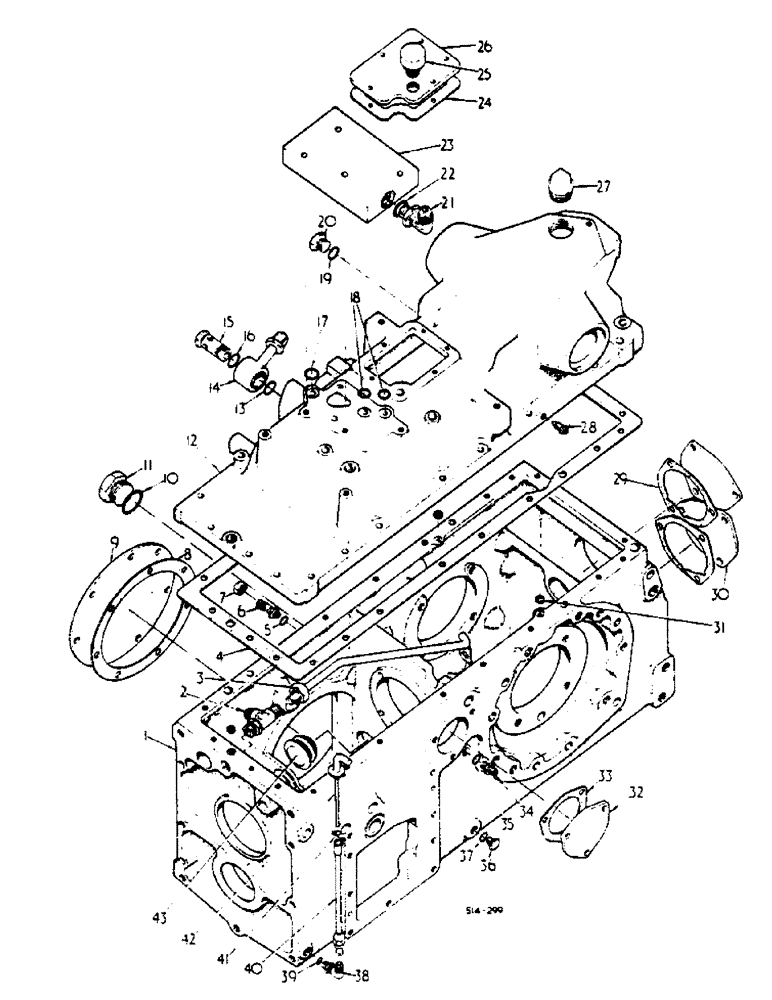

Запчасти Case IH 674 (07-10) - REAR FRAME COVER AND CONNECTIONS (04) - Drive Train

1

399848R41

FRAME

ASSY, rear, also includes bearing 399820R91 or 527746R91 and 362251R91 in range transmission

1шт.

327412R1

PLUG,Cup, 13/16"

13/16 cup

1шт.

3113103R1

PLUG

3/4-14 automotive hex hd pipe

2шт.

349373R1

PLUG

1-1/4 cup

1шт.

19904R1

DOWEL,1/2" x 1"

2шт.

19875R1

DOWEL,5/8" x 1 1/2"

PIN, 5/8

1шт.

386194R1

PLUG,Cup, 3/4"

3/4 cup

2шт.

512870R1

PLUG,Cup, 2 1/4"

2-1/4 cup

1шт.

19846R1

DOWEL,1/2" x 1 1/4"

PIN, 1/2 X 1-1/4

1шт.

70129R1

PLUG,Cup, 2"

cored hole

1шт.

23828R1

PLUG,Cup, 2 1/2"

2-1/2 cup

1шт.

330222R1

PLUG,Cup, 1 7/8"

1-7/8 cup

1шт.

151162R1

PLUG,Cup, 1 3/8"

1-3/8 cup

1шт.

327413R1

PLUG

1-1/2 cup

1шт.

2

9411131

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

3/4-16 C-Z 37 deg hyd flared tube adj str thd 90 deg transfer, pump outlet tube

1шт.

3

68393C1

TUBE ASSY.

return

1шт.

4

538649R91

PACKAGE

rear frame cover gasket, with three seals 406734R1 -

1шт.

6

9411128

TEE,7/16"-20, 37 Degree x 7/16"-20, O-Ring Run

7/16-20 C-Z 37 deg hyd flared tube adj str hd 90 deg, R.H. brake tube

1шт.

7

9403369

CAP,37 Degree, 7/16"-20

7/16-20 C-Z 37 deg hyd flared tube, R.H. brake tube

1шт.

8

405739R2

GASKET

side PTO cover

1шт.

9

405738R1

COVER

side PTO

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

7шт.

10

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube

1шт.

11

9410363

PLUG

1-5/16-12 str thd o-ring boss

1шт.

12

529381R94

COVER ASSY

rear frame

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

4шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

179846

LEVER

11шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8-16 X 2-5/8 hex hd cap

2шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

1/2-13 X 1-5/8 hex hd cap

2шт.

179888

LEVER

1/2-13 X 1-7/8 hex hd cap

4шт.

444695

PLUG

3/8-18 autom. hex soc hd pipe

1шт.

444697

PLUG,Hex Soc, 3/8"-18

3/8-18 autom. hex soc hd pipe

1шт.

444698

PLUG

3/8-18 C-Z autom. hex soc hd pipe

1шт.

386194R1

PLUG,Cup, 3/4"

3/4 cup

1шт.

5

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

373553R1

PLUG,Cup, 7/8"

7/8 cup

1шт.

41600

PLUG, 1-1/8 cup

1шт.

35

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

24469R1

PLUG,Cup, 3 1/4"

3-1/4 cup

2шт.

37

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

103321

LOCK WASHER,3/8"

14шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

3шт.

231-1408

LOCK NUT,1/2"-13, GB

1/2-13 nylon insert

3шт.

536855R1

PLUG

3/4-16 C-Z str hd o-ring boss

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

531143R2

STUD

top cover long

2шт.

531144R1

STUD

top cover short

2шт.

13

384376R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

15/16 X 1-1/16 X 1/16, Start Serial: 101955

1шт.

14

66762C1

PIPE,0.625" OD, 3.5" Length

TUBE ASSY, inlet union, Start Serial: 101955

1шт.

14

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared, Serial Range: -101954

1шт.

15

66766C1

PLUG

inlet union, Start Serial: 101955

1шт.

16

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

17

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/16 X 7/8 X 3/32 auxiliary valve manifold

1шт.

18

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 X 3/4 X 3/32 auxiliary valve manifold

2шт.

19

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

20

9410359

PLUG

=3/4-16 C-Z str thd o-ring boss

1шт.

21

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube adj str thd 90 deg, auxiliary valve manifold

1шт.

22

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

23

529382R1

MANIFOLD

aux valve

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

24

399996R1

GASKET

linkage access cover

1шт.

25

65970C1

BREATHER

ASSY, hyd unit housing

1шт.

26

65969C1

COVER

linkage access

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

5шт.

27

20953R1

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

1-3/4 -11 X 1/2 NPTE

1шт.

28

82301R1

BLEEDER,3/8" - 24 x 117mm

brake bleed

2шт.

29

399843R2

GASKET

IPTO cover

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

30

399842R1

COVER

rear frame IPTO

2шт.

31

406734R1

SEAL

teflon

3шт.

32

528448R1

PLATE

parking brake pivot hole blanking, tractors with hand operated drum brake

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

3шт.

33

528449R1

GASKET

pivot hole blanking plate

1шт.

34

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

7/16-20 C-Z 37 deg hyd flared

1шт.

TUBE short swivel, L.H. brake inlet tube

1шт.

36

9410356

PLUG

7/16-20 str thd o-ring boss

1шт.

38

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube adj str thd 90 deg oil level gauge tube

1шт.

39

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube

1шт.

40

528059R1

TUBE

rear frame oil level gauge

1шт.

41

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 X 3/8 X 1/16

1шт.

42

528054R1

DIPSTICK

GAUGE ASSY, rear frame oil level

1шт.

43

527748R1

PLUG

oil reservoir

1шт.
