Запчасти Case IH 674 (07-09) - CLUTCH (04) - Drive Train

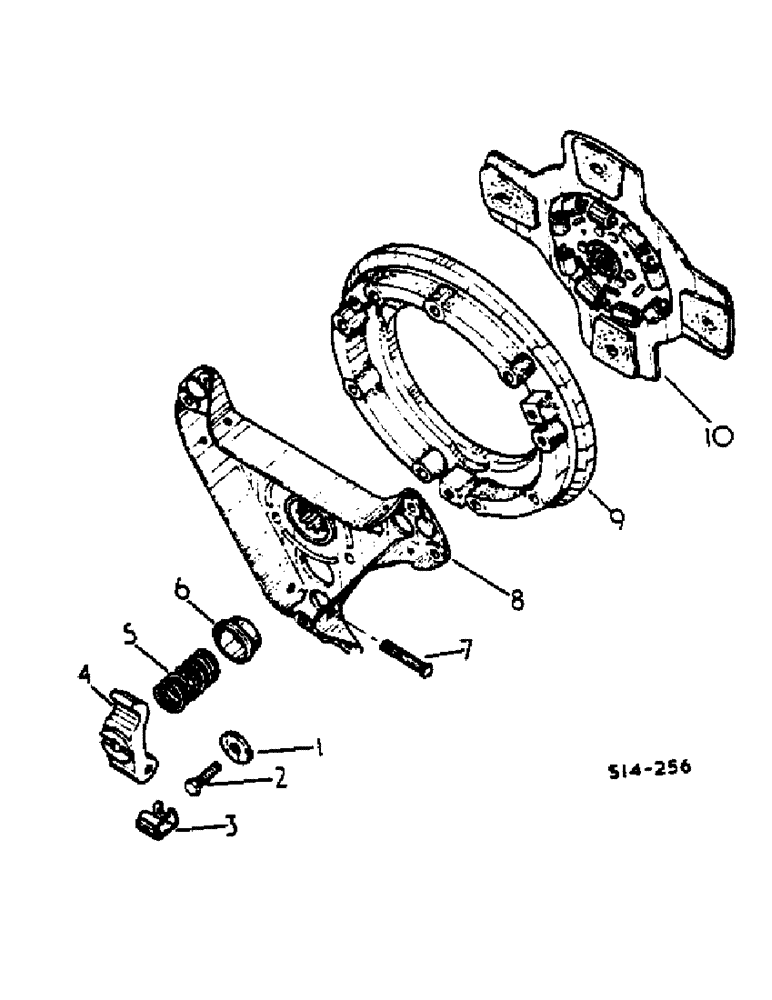

Схема запчастей Case IH 674 - (07-09) - CLUTCH (04) - Drive Train
2
10
7
6
8
3
9
5
1
4

Артикул

Название

Примечание

Количество

70716C1

COVER ASSY

clutch pressure plate, consists of ref nos 1 to 9 -

1шт.

68211C91

COVER

ASSY, clutch pressure plate, order 70716C1 -

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

6шт.

1

WASHER

3шт.

2

69911C1

KIT

cover parts with screw, cup, nut, and washer

1шт.

NUT, 5/16-24 hex jam

3шт.

3

CLIP, return

3шт.

4

69912C1

KIT

lever and pivot pin

1шт.

5

69910C2

KIT

pressure spring and cup

1шт.

6

CUP, spring

3шт.

7

PIN, pivot

3шт.

8

69914C1

HUB ASSY.

KIT, bracket and hub

1шт.

9

69913C1

KIT

pressure plate

1шт.

10

530402R3

DISC

PLATE ASSY, clutch drive

1шт.

Выбрано товаров: 15
