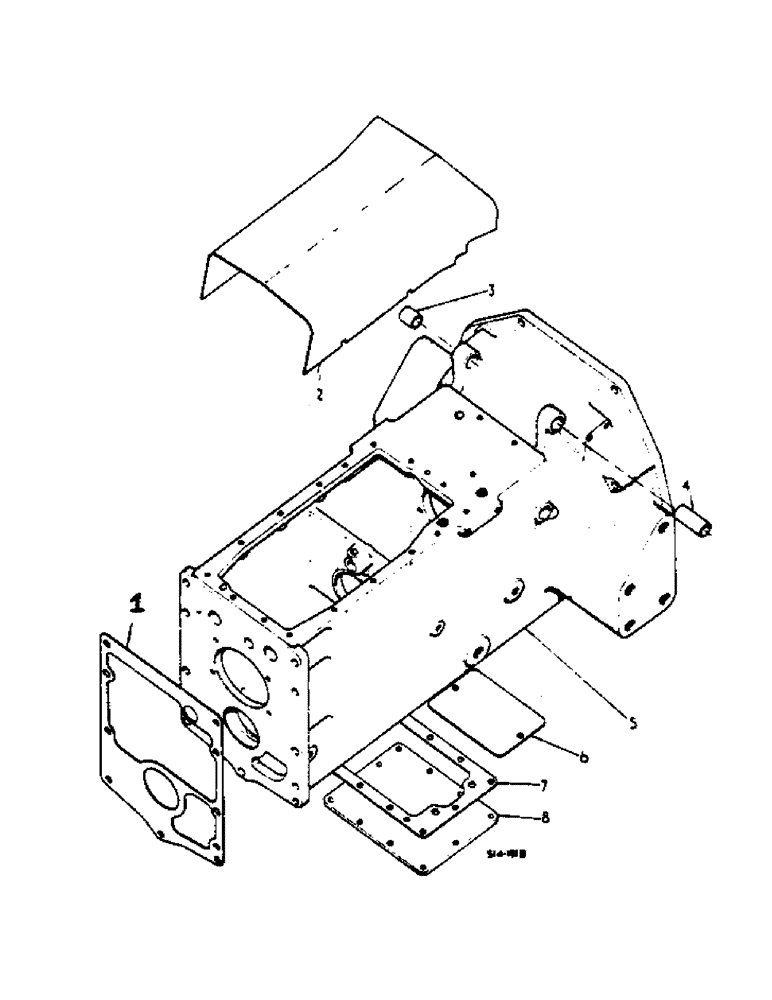

Запчасти Case IH 674 (07-07) - CLUTCH HOUSING AND CONNECTIONS (04) - Drive Train

1

399814R3

GASKET

clutch hsg. to rear frame

1шт.

2

66290C1

COVER

ASSY, clutch housing

1шт.

445957

INDICATOR

1/4-20 X 3/8 C-Z SLT pan hd mach

4шт.

3

539245R1

BUSHING

clutch and brake shaft

1шт.

4

537099R1

NO LONGER SERVICED

BUSHING, L.H. brake pedal pivot

1шт.

4

539834R1

BUSHING,22.35mm ID x 25.47mm OD x 68.07mm L

L.H. brake pedal pivot, optional

1шт.

5

537097R94

HOUSING

ASSY, clutch, also includes bearing 399820R1 or 527746R91 in speed transmission

1шт.

340340

BOLT, 1/2-13 X 1-1/2 hex hd cap to rear frame

9шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1/2-13 X 3-1/2 hex hd cap thru spacer and cap to clutch housing

2шт.

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

Thru spacer clutch hsg to crankcase

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Thru spacer to clutch housing

4шт.

186295

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1/2-13 X 5-1/2 hex hd

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

2шт.

3113103R1

PLUG

3/4-14 automotive hex hd pipe

1шт.

327411R1

PLUG,Cup, 5/8"

5/8 cup

1шт.

9410359

PLUG

3/4-16 str thd o-ring boss

1шт.

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1/2 od tube, T.A. pressure port plug

1шт.

19962R1

DOWEL,3/8" x 3/4"

1шт.

20556R1

DOWEL,1/2" x 3/4"

1шт.

19904R1

DOWEL,1/2" x 1"

2шт.

6

399817R1

COVER

clutch compartment

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

7

402556R2

GASKET

clutch housing bottom rear cover

1шт.

8

402182R1

COVER

clutch housing bottom rear cover

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

11шт.
