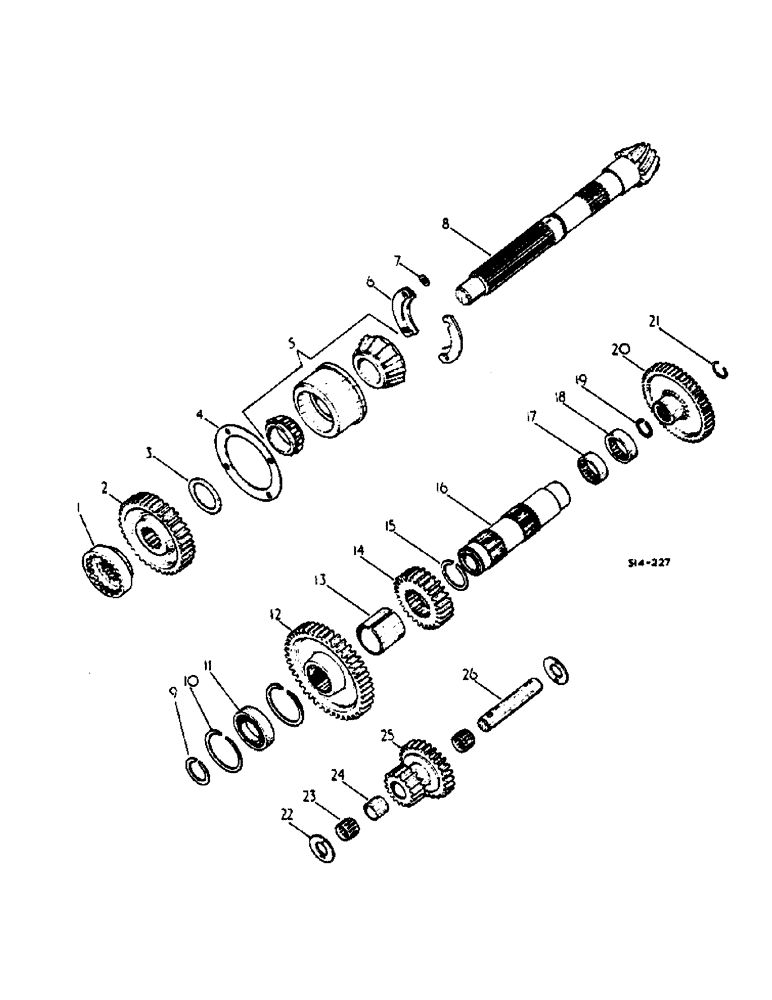

Запчасти Case IH 674 (07-05) - RANGE TRANSMISSION IN REAR FRAME (04) - Drive Train

1

399830R2

COLLAR

hi-speed shift

1шт.

2

65782C1

GEAR

fwd.rev sliding -41T, speed train type D -

1шт.

2

399462R1

GEAR

fwd/rev sliding -42T, speed train type B -

1шт.

3

65788C1

WASHER

bevel pinion shaft thrust

1шт.

4

SHIM, main shaft brg. retainer .004

1шт.

4

SHIM, main shaft brg. retainer .007 - order package 65423C1 -

2шт.

5

65783C92

BEARING ASSY,53.9815 mm ID x 116.84 mm OD x 66.675 mm

ASSY, main shaft

1шт.

6

65784C2

RETAINER

ASSY main shaft brg.

2шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

7

65787C1

WASHER

brg. retainer screw

4шт.

8

65779C1

GEAR, BEVEL

BEVEL GEAR SET matched -11/52, consists of

1шт.

L

OIL SEAL

SHAFT

1шт.

L

OIL SEAL

GEAR

1шт.

9

327068R1

RING, SNAP

RING SNAP countershaft brg. ext.

1шт.

10

399832R1

RING, SNAP

RING SNAP countershaft brg. int

2шт.

11

69843C91

BALL BEARING,49.994 mm ID x 79.994 mm OD x 15.94 mm

countershaft front

1шт.

11

ST572

BEARING, BALL,50 mm ID x 80 mm OD x 16 mm

countershaft front

1шт.

11

360635R91

BEARING, BALL

countershaft front

1шт.

11

528101R91

BEARING, BALL

countershaft front

1шт.

11

528102R91

BEARING, BALL

countershaft front

1шт.

11

3047867R91

BEARING, BALL

countershaft front

1шт.

11

3069304R91

BALL BEARING

countershaft front, optional

1шт.

12

404097R1

GEAR

constant mesh -46T-

1шт.

13

399835R1

BUSHING

countershaft gears

1шт.

14

404100R1

PINION

GEAR, lo range driving -27T, speed train type D -

1шт.

14

404099R1

GEAR

lo range driving -25T, speed train type B -

1шт.

15

398264R1

SNAP RING,#215, 2.026", Ext

lo range driving gear ret

1шт.

16

404096R1

SHAFT

range transmission

1шт.

17

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

countershaft

1шт.

17

527746R91

BEARING, NEEDLE

countershaft, optional

1шт.

18

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

pump drive gear

1шт.

18

527747R91

BEARING, NEEDLE

pump drive gear, optional

1шт.

19

399837R1

SNAP RING,#118, 1.121", Ext

pump drive gear retainer

1шт.

20

404218R1

GEAR

pump drive -55T-

1шт.

21

533266R1

RING, SNAP

RING SNAP IPTO front driven shaft rear

1шт.

22

3112846R1

THRUST WASHER

idler

2шт.

23

3112844R91

BEARING, NEEDLE

reverse idler gear

2шт.

23

3113041R91

ROLLER CAGE BEARING

reverse idler gear needle, optional

2шт.

24

3112845R1

SPACER

idler bearing

1шт.

25

3112843R1

GEAR

rev idler 18 and 27T - speed train type D -

1шт.

25

3112842R1

GEAR

rev idler 20 and 25T - speed train type B -

1шт.

26

399838R2

SHAFT

reverse idler

1шт.

65423C1

SHIM KIT

PACKAGE, main shaft brg. cage, service, not illustrated

1шт.
