Запчасти Case IH 674 (07-03) - DIFFERENTIAL LOCK, MACHINE FITTED W/ISO MOUNTED CAB (04) - Drive Train

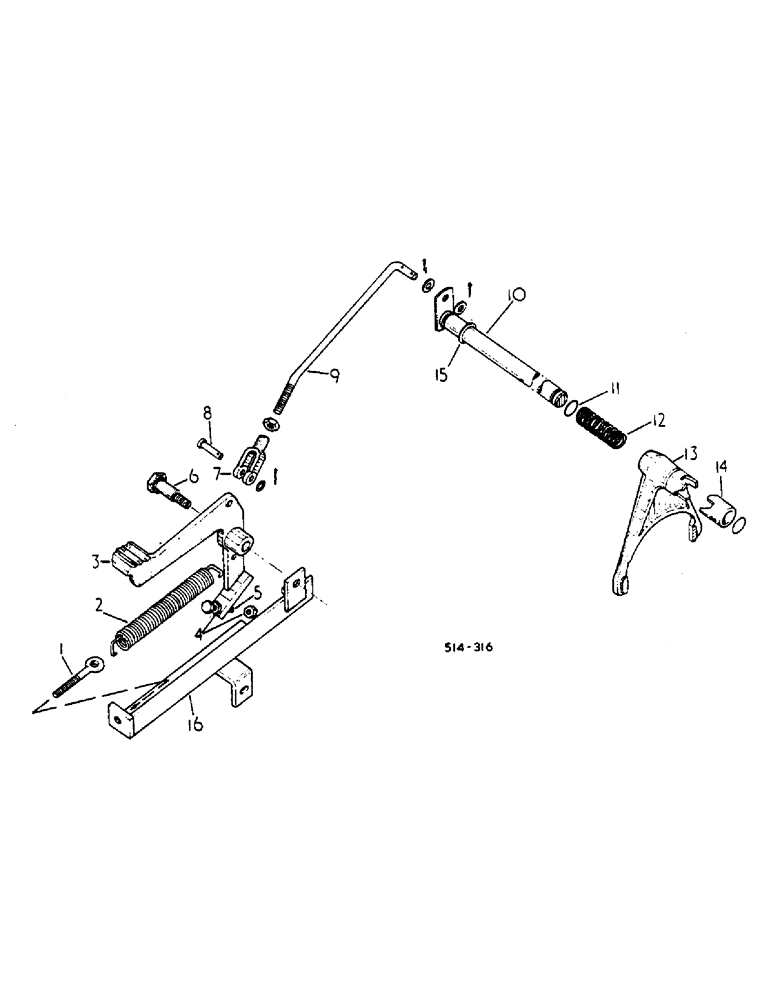

Схема запчастей Case IH 674 - (07-03) - DIFFERENTIAL LOCK, MACHINE FITTED W/ISO MOUNTED CAB (04) - Drive Train
15
1
3
6
5
1
11
2
14
8
16
13
9
7
1
10
4
12
1

Артикул

Название

Примечание

Количество

1

530046R1

BOLT

pedal return spring eye

1шт.

125-10003

NUT,3/8"-16, G5, LH

3/8 hex

2шт.

120396

WASHER

.531 X 1.062 X .074

1шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

2

527886R1

VALVE SPRING

diff lock pedal return

1шт.

3

3116181R1

PEDAL

diff lock

1шт.

4

109084

NUT,1/4"-20, G5

2шт.

5

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

6

3116897R1

BOLT,Lock, 9/16" - 12 x 2.38"

diff lock pedal pivot

1шт.

7

753984R1

CLEVIS,3/8" - 16

rod end

1шт.

8

NLS

NO LONGER SERVICED

3/8 X 1-1/16 clevis

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

Q1597

WASHER

13/32 X 3/4 X 1/16

1шт.

9

3116187R1

ROD, cpte. diff lock pedal

1шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

Q1597

WASHER

13/32 X 3/4 X 1/16

2шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

10

527871R1

SHAFT ASSY.

diff lock

1шт.

11

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 X 3/4 X 3/32

2шт.

12

527878R1

SPRING

diff lock fork actuating

1шт.

13

527874R1

NO LONGER SERVICED

FORK ASSY, diff lock shaft

1шт.

14

527877R1

CAM

diff lock shaft

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

15

551658R1

WASHER

25/32 X 1-1/4 X 22

1шт.

Q3501

WASHER

25/32 X 1-1/4 X 16, as required

1шт.

16

3116182R1

SUPPORT ASSY.

diff lock pedal

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

NLS

NO LONGER SERVICED

.531 X 1.062 X .074

1шт.

103323

LOCK WASHER,1/2"

1шт.

Выбрано товаров: 29
