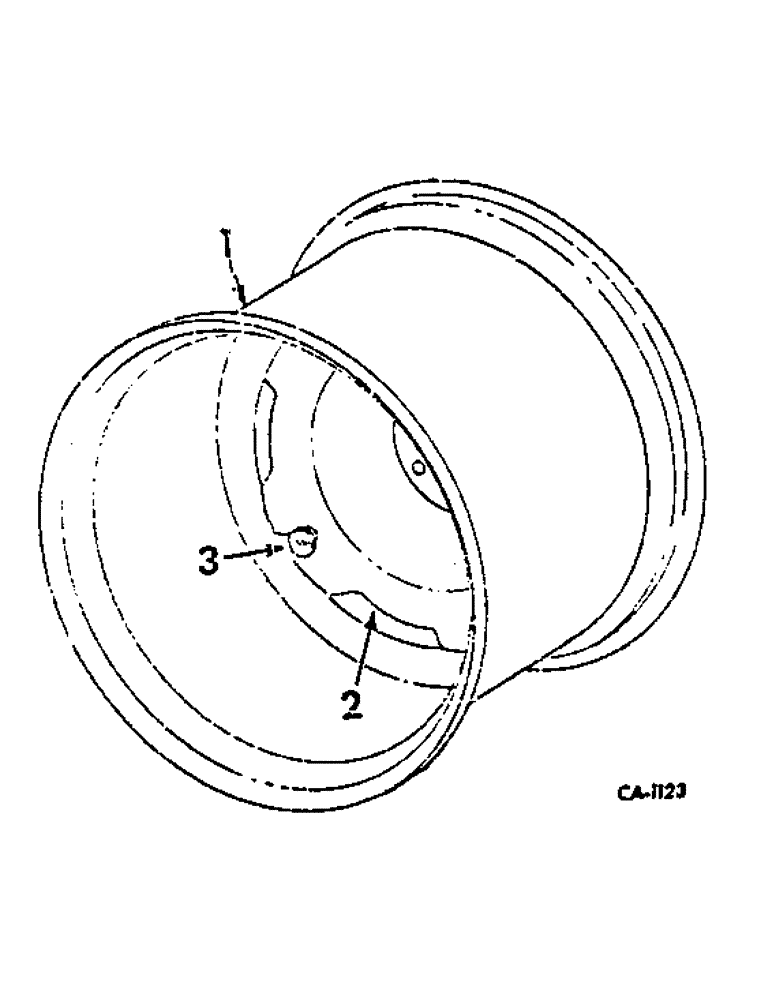

Запчасти Case IH 674 (15-03) - REAR WHEELS Wheels & Traction

527256R91

WHEEL

ASSY, W11-36 rear

2шт.

3113316R91

WHEEL

ASSY, W11-38 rear

2шт.

527253R91

WHEEL

ASSY, DW14-30 rear

2шт.

3113317R91

WHEEL

ASSY, 14-34 rear

2шт.

3113432R91

WHEEL

ASSY, W15LX30

2шт.

1

406949R1

RIM

with lugs W11-36 rear wheel, used with wheel assy 527256R91 -

1шт.

1

3113462R1

RIM

with lugs W11-38 rear wheel, used with wheel assy 3113316R91 -

1шт.

1

406944R1

RIM

WHEEL with lugs DW14-30 rear wheel, used with wheel assy 527253R91 -

1шт.

1

3113464R1

RIM

WHEEL with lugs W14-34 rear wheel, used with wheel assy 3113317R91 -

1шт.

1

3073513R91

RIM

WHEEL ASSY, rear wheel, row crop

2шт.

1

3116540R1

RIM

WHEEL LUG ASSY - used with wheel assy 3113432R91 -

1шт.

2

406950R1

DISC

WHEEL, rear 36 in wheel

1шт.

2

3113463R1

DISC, WHEEL

rear 38 in wheel

1шт.

2

406942R1

DISC

WHEEL, rear 30 in wheel

1шт.

2

406948R1

WHEEL DISC

rear 34 in wheel

1шт.

2

3069092R1

DISC

WHEEL, disc 38 in wheel, row crop

2шт.

2

3116404R1

DISC

WHEEL, rear

2шт.

3

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

rear wheel rim mtg

8шт.

406952R1

WASHER

rear wheel rim mtg

8шт.

406954R1

NUT, rear wheel rim mtg bolt

8шт.

3

3073516R1

BOLT

rim clamp, row crop

16шт.

363018R1

NUT

rim clamp, row crop

16шт.

3

3116403R1

BOLT (SPREADER)

12шт.

102639

NUT,5/8"-11, G5

12шт.

934233R1

LOCK WASHER

5/8 spring med

12шт.

389539R1

CLAMP

rear wheel hub, not illustrated

4шт.

14-1480

BOLT,Hex, 7/8" - 14 x 5", Gr 5

7/8-19 X 4-3/4 hex hd cap, row crop, not illustrated

8шт.
