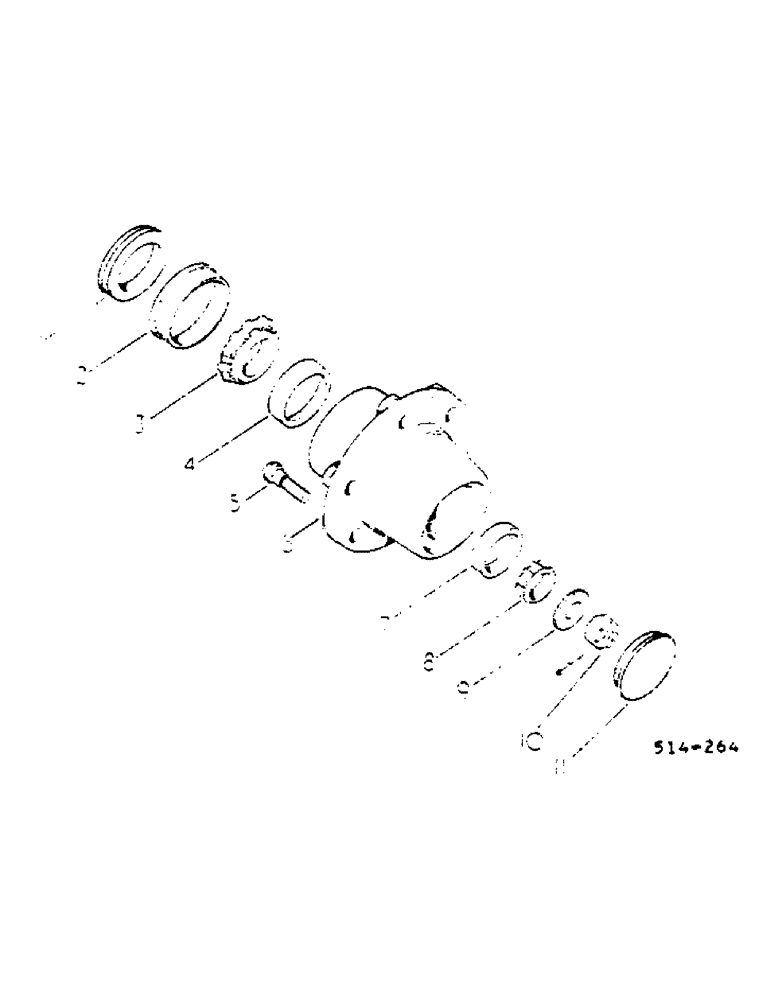

Запчасти Case IH 674 (14-09) - FRONT WHEEL HUB, BEARINGS AND CAP Suspension

1

69761C1

SEAL

front wheel dust

2шт.

1

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

front wheel dust

2шт.

1

372438R91

SEAL ASSY.

front wheel dust

2шт.

1

372474R91

SEAL ASSY.

front wheel dust, optional

2шт.

2

67328C1

SEALING RING

SEALRING wear

2шт.

3

400987C91

BEARING ASSY,1.7817" ID x 2.892" OD x 0.77, 0.62"

ASSY, inner

2шт.

3

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

ASSY, inner, optional

2шт.

4

400988C1

BEARING, CUP

Inner

2шт.

4

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

inner, optional

2шт.

5

528803R1

BOLT,1/2" - 20 x 1.75"

Mounting

12шт.

6

67527C91

HUB ASSY.

front wheel

2шт.

7

538491R1

BEARING, CUP

Outer

2шт.

7

536054R1

BEARING CUP,60mm OD x 11.94mm W

outer cup, optional

2шт.

8

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

ASSY, outer

2шт.

8

538492R91

BEARING CONE

ASSY, outer, optional

2шт.

9

67537C1

WASHER

outer bearing retainer

2шт.

10

427639

SLOTTED NUT,3/4"-16, G5

3/4-16 slt hex

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

2шт.

11

612884R1

HUB CAP

front wheel hub

2шт.
