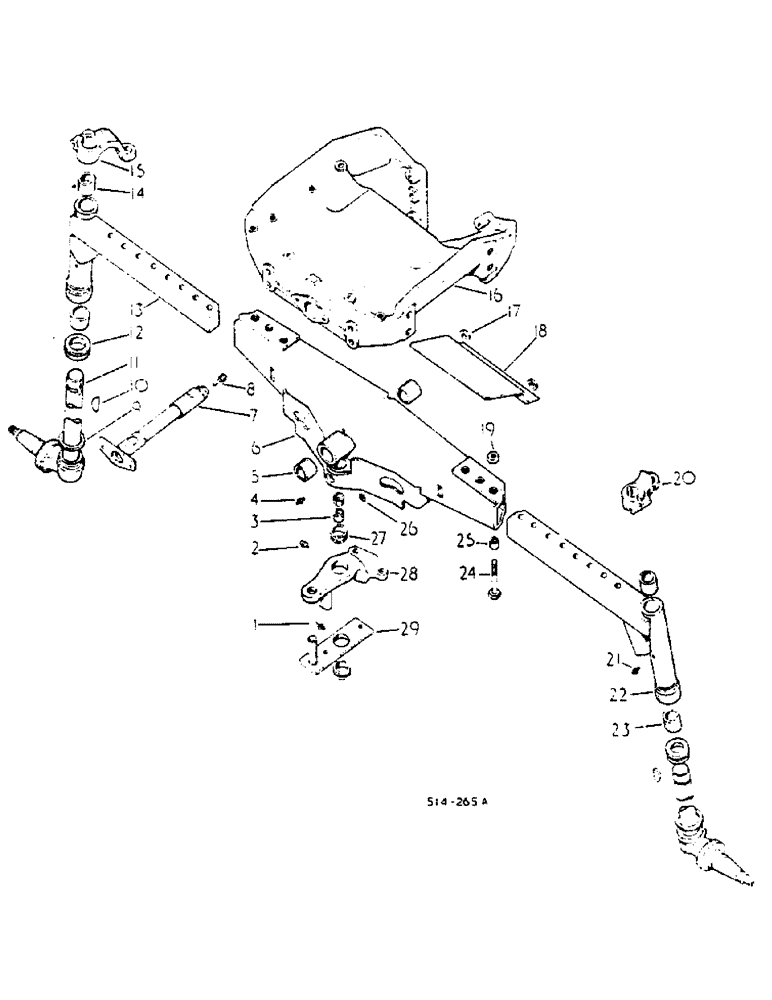

Запчасти Case IH 674 (14-07) - FRONT AXLE, STRAIGHT, HEAVY DUTY Suspension

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

High spindle

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

1шт.

3

405574R1

BUSHING

support

2шт.

3

376160R1

BUSHING,25.4mm ID x 28.7mm OD x 19.3mm L

support, optional

1шт.

4

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4 65 deg angle drive type

1шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

pivot

2шт.

6

3116435R91

FRONT AXLE

ASSY, front

1шт.

7

539128R1

SHAFT ASSY.

front axle pivot

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

8

273252

WASHER

FITTING, 1/8-27 PTF 90 deg angle club

1шт.

9

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt

2шт.

10

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

11

67535C91

KNUCKLE

ASSY. steering, low spindle

2шт.

11

67526C91

KNUCKLE

ASSY. steering, high spindle

2шт.

12

405831R91

BEARING

steering knuckle thrust

2шт.

12

369131R91

THRUST BEARING

steering knuckle thrust

2шт.

12

527295R91

THRUST BEARING,44.45mm ID x 68.4mm OD x 17.6mm W

steering knuckle thrust, optional

2шт.

13

3116437R91

EXTENSION ASSY.

front axle R.H., high spindle

1шт.

13

3116580R91

EXTENSION ASSY.

front axle R.H., low spindle

1шт.

14

376099R1

BUSHING

2шт.

15

67525C1

ARM

steering knuckle R.H.

1шт.

102637

NUT,1/2"-13, G5

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

16

405587R4

BOLSTER

front

1шт.

NLS

NO LONGER SERVICED

5/8-11 X 2-1/2 hex hd cap

6шт.

24970R1

BOLT

5/8-11 x 2-1/2 Twelve pt flange, Optional

6шт.

17

534813R1

SPACER

bolster air baffle

2шт.

18

534812R1

BAFFLE

bolster air

1шт.

271567

BRACKET,Hex, 5/8" - 11 x 3 1/4", Gr 5

5/8-11 X 3-1/4 hex hd cap

2шт.

369936R1

WASHER

bolster air baffle

2шт.

19

405576R1

NUT

front axle

4шт.

20

67524C1

ARM

steering knuckle L.H.

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

102637

NUT,1/2"-13, G5

1шт.

21

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 drive type str lub

2шт.

22

3116436R91

EXTENSION ASSY.

front axle L.H., high spindle

1шт.

22

3116579R91

EXTENSION ASSY.

front axle L.H., low spindle

1шт.

23

376099R1

BUSHING

2шт.

24

271465

FLEXIBLE HOSE

SCREW, 3/4-16 X 4-3/4 hex hd cap

6шт.

25

539569R1

BUSHING

SPACER

6шт.

26

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

1шт.

27

379748R1

BUSHING

2шт.

28

67499C91

ARM ASSY.

P.S. centre

1шт.

29

405580R11

BAR ASSY.

PC cyl.

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

, Serial Range: -101642

2шт.

67976

STRIP steering centre arm bolt lock, Start Serial: 101643

1шт.
