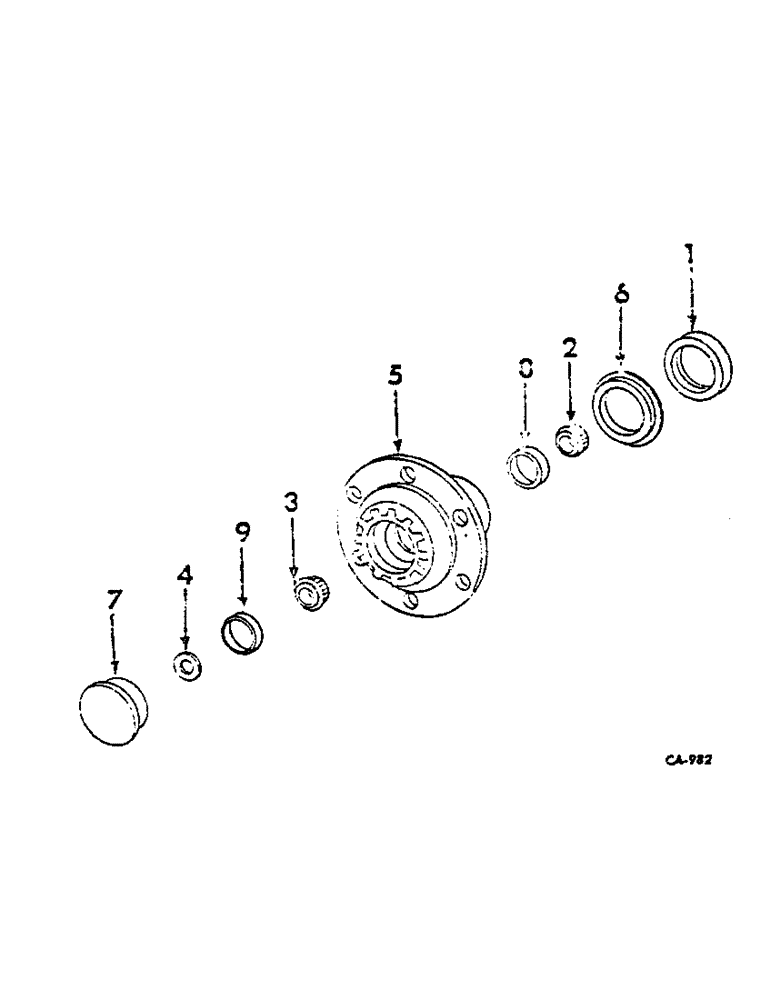

Запчасти Case IH 674 (14-05) - FRONT WHEEL HUB, BEARINGS AND CAP Suspension

1

405835R91

SEAL

front dust wheel

2шт.

1

530104R91

SEAL

front dust wheel, optional

2шт.

2

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

ASSY, inner

2шт.

2

371897R91

BEARING ASSY,1.315" ID x 2.5625" OD x 0.72"

ASSY, inner, optional

2шт.

3

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy, Outer

2шт.

3

371907R91

ROLLER BEARING,0.8437" ID x 1.9687" OD x 0.72"

ASSY, outer cone, optional

2шт.

4

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

outer bearing retainer

2шт.

427639

SLOTTED NUT,3/4"-16, G5

3/4-16 slt hex

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

2шт.

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt

2шт.

5

406294R11

HUB

ASSY, front wheel

2шт.

528803R1

BOLT,1/2" - 20 x 1.75"

Mounting

12шт.

6

406295R2

RING

wear

2шт.

7

612884R1

HUB CAP

front wheel hub

2шт.

8

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner

2шт.

8

371898R1

BEARING, CUP

Inner, Optional

2шт.

9

371883R1

BEARING CUP

Outer

2шт.

9

371908R1

BEARING CUP

Outer, optional

2шт.
