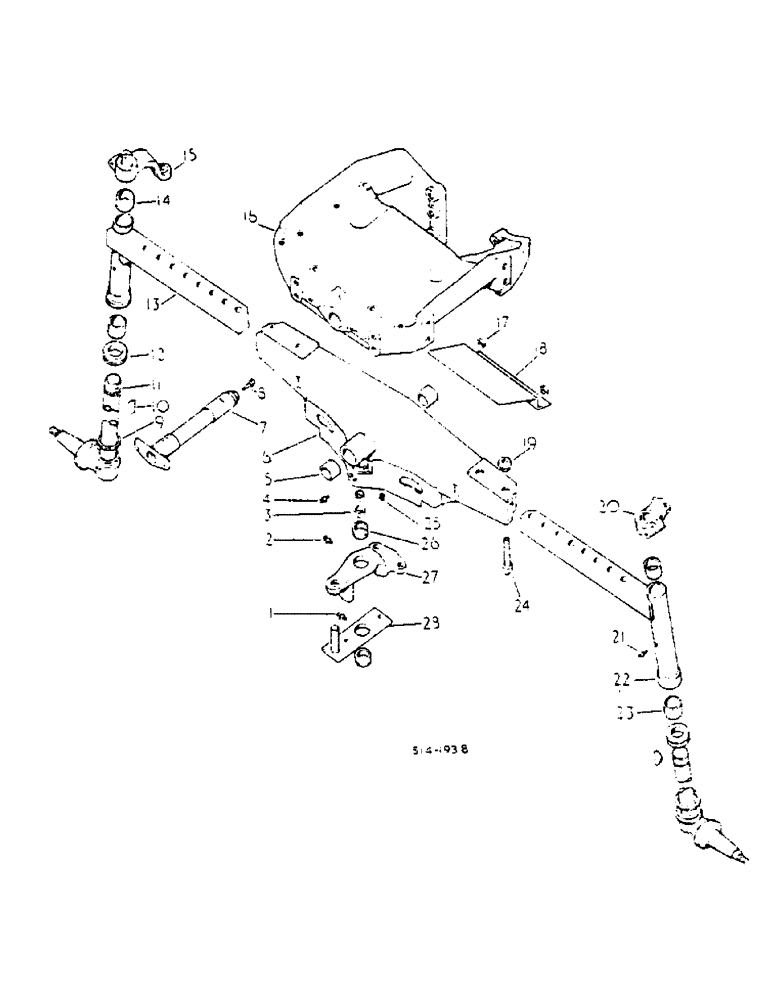

Запчасти Case IH 674 (14-02) - FRONT AXLE, STRAIGHT Suspension

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

1шт.

3

405574R1

BUSHING

support

2шт.

3

376160R1

BUSHING,25.4mm ID x 28.7mm OD x 19.3mm L

support, optional

1шт.

4

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4 65 deg angle drive type

1шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

pivot

2шт.

6

539161R92

CENTER AXLE

ASSY, front

1шт.

7

539128R1

SHAFT ASSY.

front axle pivot

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

8

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 pte 90 deg angle lub

1шт.

9

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt

2шт.

10

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

11

405840R12

KNUCKLE

ASSY. steering, low spindle

2шт.

11

527292R91

STEERING KNUCKLE

ASSY, high spindle, Serial Range: -101082

2шт.

11

67526C91

KNUCKLE

ASSY. steering, high spindle, Start Serial: 101083

2шт.

Includes 674/100130, 100133, 100161, 100618, TO 100624, 100635,100637, 100849, 100938 TO 100942, 100959, 100962, 100963,100969, 100974, 100975, 100977, 100979, 100980, 100982, 100986, 100995, 101003, 101000, 101008, 101015, 101025, 101026, 101027, 101029, 101031, 101033, 101036, 101038 TO 101042, 101047, 101049, 101050,101053, 101056, 101057, 101074, 101079, 101080.

1шт.

12

405831R91

BEARING

steering knuckle thrust

2шт.

12

527295R91

THRUST BEARING,44.45mm ID x 68.4mm OD x 17.6mm W

steering knuckle thrust, optional

2шт.

13

67531C91

EXTENSION

ASSY, front axle R.H., high spindle

1шт.

13

67533C91

EXTENSION ASSY.

ASSY, front axle R.H., low spindle

1шт.

14

376099R1

BUSHING

2шт.

15

67525C1

ARM

steering knuckle R.H., Start Serial: 102198

1шт.

Includes 674/100130, 100133, 100161, 100618, TO 100624, 100635,100637, 100849, 100938 TO 100942, 100959, 100962, 100963,100969, 100974, 100975, 100977, 100979, 100980, 100982, 100986, 100995, 101003, 101000, 101008, 101015, 101025, 101026, 101027, 101029, 101031, 101033, 101036, 101038 TO 101042, 101047, 101049, 101050,101053, 101056, 101057, 101074, 101079, 101080.

1шт.

15

527802R1

ARM

steering knuckle R.H., Serial Range: -102197

1шт.

102637

NUT,1/2"-13, G5

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

16

405587R4

BOLSTER

front

1шт.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8-11 X 2-1/2 hex hd cap

6шт.

24970R1

BOLT

5/8-11 x 2-1/2 Twelve pt flange, Optional

1шт.

17

534813R1

SPACER

bolster air baffle

2шт.

18

534812R1

BAFFLE

bolster air

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8-11 X 3-1/4 hex hd cap

2шт.

369936R1

WASHER

boslter air baffle

2шт.

19

405576R1

NUT

front axle

4шт.

20

67524C1

ARM

steering knuckle L.H., Start Serial: 102198

1шт.

Includes 674/100130, 100133, 100161, 100618, TO 100624, 100635,100637, 100849, 100938 TO 100942, 100959, 100962, 100963,100969, 100974, 100975, 100977, 100979, 100980, 100982, 100986, 100995, 101003, 101000, 101008, 101015, 101025, 101026, 101027, 101029, 101031, 101033, 101036, 101038 TO 101042, 101047, 101049, 101050,101053, 101056, 101057, 101074, 101079, 101080.

1шт.

20

527801R1

ARM

SPARE PART steering knuckle R.H., Serial Range: -102197

1шт.

21

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 drive type str lub

2шт.

22

67530C91

EXTENSION

ASSY, front axle L.H., high spindle

1шт.

22

67532C91

EXTENSION ASSY.

ASSY, front axle L.H., low spindle

1шт.

23

376099R1

BUSHING

1шт.

24

271645

RING,Hex, 3/4" - 16 x 4 3/4", Gr 5

3/4-16 X 4-3/4 hex hd cap

4шт.

539569R1

BUSHING

SPACER

1шт.

24

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder, Optional

4шт.

25

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

1шт.

26

379748R1

BUSHING

2шт.

27

67499C91

ARM ASSY.

PS centre, Start Serial: 102198

1шт.

Includes 674/100130, 100133, 100161, 100618, TO 100624, 100635,100637, 100849, 100938 TO 100942, 100959, 100962, 100963,100969, 100974, 100975, 100977, 100979, 100980, 100982, 100986, 100995, 101003, 101000, 101008, 101015, 101025, 101026, 101027, 101029, 101031, 101033, 101036, 101038 TO 101042, 101047, 101049, 101050,101053, 101056, 101057, 101074, 101079, 101080.

1шт.

27

405585R11

ARM

PS centre, Serial Range: -102197

1шт.

28

405580R11

BAR ASSY.

PC cyl

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

, Serial Range: -101642

2шт.

67976C1

PLATE, LOCKING

STRIP, steering center arm bolt lock, Start Serial: 101643

1шт.
