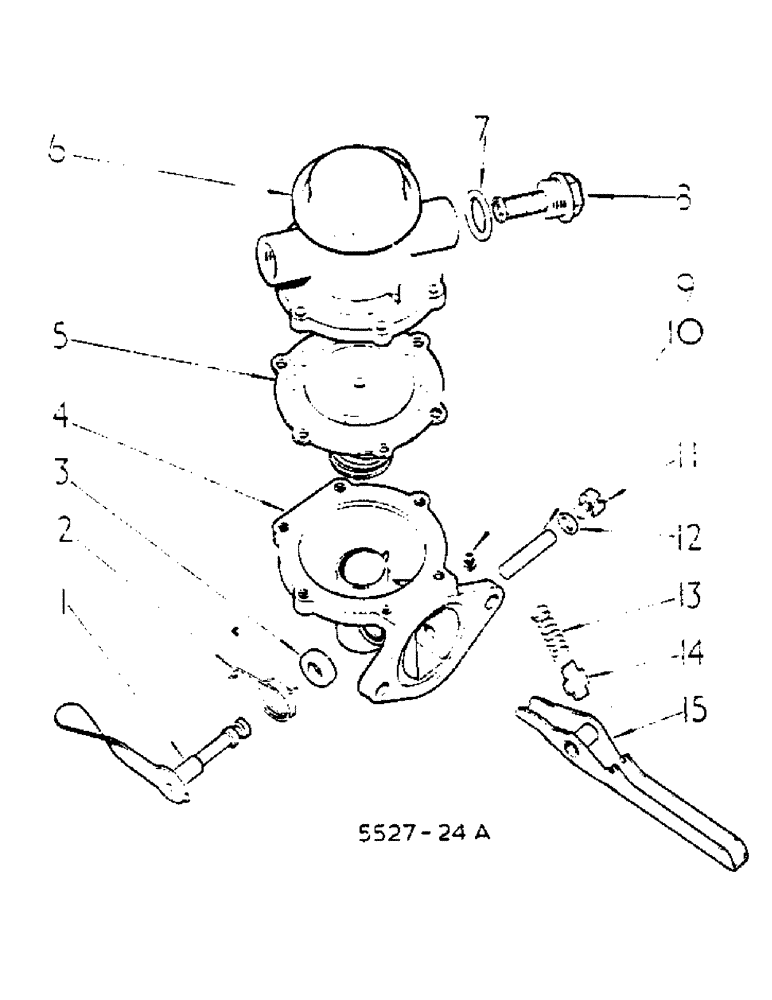

Запчасти Case IH 674 (12-52) - FUEL FEED PUMP, C.A.V. INJECTION Power

3132697R91

FUEL PUMP

cpte., feed

1шт.

1

3132334R1

HANDLE

cpte.

1шт.

2

3132332R1

SPRING

SPARE PART extension

1шт.

3

3132333R1

SPARE PART

1шт.

4

3132836R1

HOUSING

UNDERBODY, cpte pump

1шт.

5

3132798R1

DIAPHRAGM

pump

1шт.

6

3132796R1

HEAD

cpte pump

1шт.

3132330R1

SCREW

fill hd slto mach

6шт.

7

933850R1

SEALING RING,M15 x 19 x 1.5

packing

1шт.

8

3132797R1

FILTER

fuel

1шт.

9

3132331R1

SCREW

oval head sltd

1шт.

10

3132337R1

SPLIT PIN/SAFETY PIN

AXLE, pump lever

1шт.

11

3132336R1

SCREW

PLUG, drain locking

1шт.

12

3132335R1

RING

drain plug packing

1шт.

13

3132339R1

SPRING

compression

1шт.

14

3132338R1

RETAINER

HOLDER, spring

1шт.

15

3132340R1

LEVER

pump

1шт.
