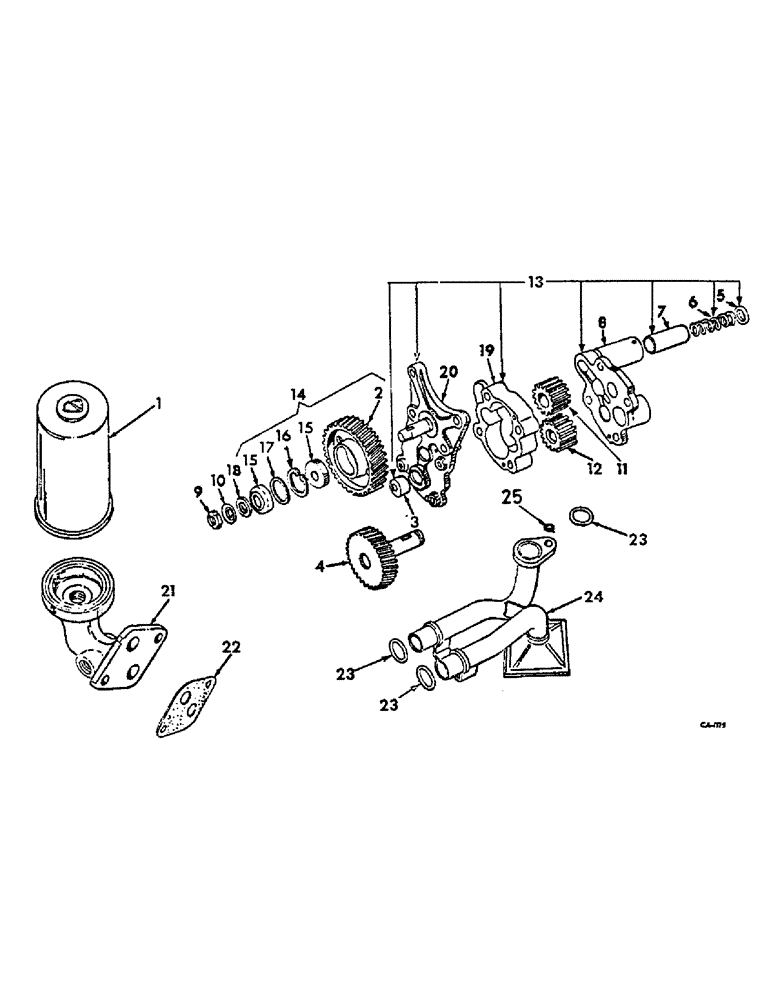

Запчасти Case IH 674 (12-49) - LUBRICATING OIL PUMP AND FILTER Power
№
Артикул
Название
Примечание
Количество
3136431R91
PUMP
ASSY, oil, consists of ref. nos. 2 thru 20 -
1шт.
103320
LOCK WASHER,5/16"
4шт.
NLS
NO LONGER SERVICED
SCREW, 5/16-18 X 1 hex soc hd cap
4шт.
1
398080R2
ENGINE OIL FILTER
oil, optional
1шт.
2
GEAR, not serviced separately
1шт.
3
BUSHING, not serviced separately
1шт.
4
3136444R91
GEAR
ASSY, drive
1шт.
5
3139620R1
SPRING WASHER
spring
1шт.
6
3136264R1
SPRING
pressure relief valve
1шт.
7
3055202R2
VALVE
piston relief
1шт.
8
COVER ASSY, oil pump, not serviced separately,order carrier assy 3136441R91 -
1шт.
9635082
NUT,5/16" - 18, Gr 5
4шт.
103387
COTTER PIN,1/8" x 1 1/2"
1шт.
13-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
4шт.
103320
LOCK WASHER,5/16"
4шт.
9
3035295R1
NUT, shaft
1шт.
10
3055296R1
WASHER
PLATE, locking
1шт.
11
3132328R1
GEAR
idler
1шт.
12
3132502R1
GEAR
oil pump
1шт.
13
3136441R91
ENGINE OIL PUMP
CARRIER ASSY, with three pin 932597R1
1шт.
932597R1
LOCK PIN,M10 x 14, Slotted
Roll
3шт.
14
3056852R11
IDLER GEAR
ASSY, idler
1шт.
15
3055293R91
TAPERED BEARING
ASSY
2шт.
15
3055294R91
TAPERED BEARING
ASSY, optional
2шт.
16
933579R1
SNAP RING,M35, Int
1шт.
17
3055292R1
WASHER
WASHER
1шт.
18
3055371R1
WASHER
idler gear
1шт.
19
CASE, oil pump gear, not serviced separately
1шт.
20
CARRIER, not serviced separately
1шт.
21
3136047R1
HEAD
SOCKET, oil filter
1шт.
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
933620R1
BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk
Disc
2шт.
103883
PIPE PLUG,Slotted, Headless, 1/8" NPT
1шт.
22
3055237R1
GASKET
oil filter socket
1шт.
23
3055199R1
O-RING
3шт.
24
3132781R92
PIPE
ASSY, oil pressure and suction
1шт.
24933R1
HEX SOC SCREW,7/16"-14 x 3 3/4"
1шт.
103322
LOCK WASHER,7/16"
1шт.
25
712222R1
O-RING
NG
1шт.
444687
PLUG,Hex Soc, 1/8"-27
Pipe, For blanking off oil pressure switch, Not Illustrated
1шт.
Выбрано товаров: 41
