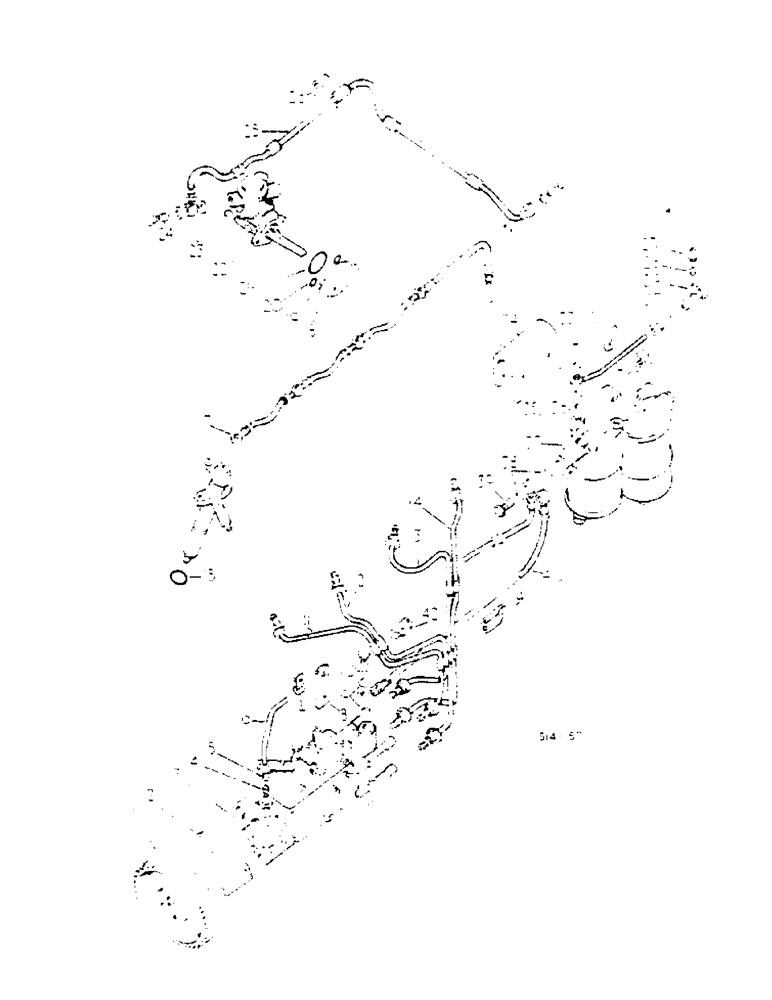

Запчасти Case IH 674 (12-40) - FUEL INJECTION PUMP AND CONNECTIONS Power

1

3114179R91

GEAR ASSY, injection pump

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

3шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

.335 X .748 X .098

3шт.

2

3138779R1

GASKET

fuel injection pump

1шт.

3

3138782R91

PUMP

ASSY, fuel injection pump, synchromesh drive tractors for components, see list of parts under details of fuel injection pump

1шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

103320

LOCK WASHER,5/16"

3шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

.335 X .748 X .098

3шт.

3144256R1

SLEEVE

sealing

1шт.

3144255R1

NUT,16 mm Length

inverted flared tube

1шт.

4

3138820R1

SLEEVE

ball

1шт.

5

3144255R1

NUT,16 mm Length

1шт.

6

3138818R1

HOSE

PIPE, fuel filter to injection pump

1шт.

7

3059647R1

CLAMP

CLIP, fuel lines

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

1шт.

8

3132174R1

LINK

fixing fuel lines

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

1шт.

9

E135042

SEALING RING

SEALRING

2шт.

10

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

hollow

1шт.

11

3138796R91

PIPE

ASSY, injection cyl -1

1шт.

12

3138798R91

PIPE

ASSY, injection cyl -2

1шт.

13

3138800R91

PIPE

ASSY, injection cyl -3

1шт.

14

3138802R91

PIPE

ASSY, injection cyl -4

1шт.

15

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

4шт.

16

3138785R91

NOZZLE INJECTION

HOLDER ASSY, for components, see list of parts unde details of injector assy

4шт.

425-115

NUT,5/16"-24, G5

8шт.

17

3055606R91

LINE

PIPE, leak

1шт.

18

3055391R22

NO LONGER SERVICED

FLANGE/Retired FLANGE

1шт.

19

3055388R1

STUD

2шт.

20

3132869R1

O-RING

2шт.

21

3055389R2

O-RING,2.5mm Thk x 32mm ID, 70 Duro

1шт.

22

3132697R92

FEED PUMP

ASSY, fuel, for components, see list of parts under details of fuel feed pumps

1шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

933682R1

BELLEVILLE WASHER,M6 Bolt Size x 12.6mm OD x 0.7mm Thk

DISC, spring

2шт.

23

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

2шт.

24

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

hollow

2шт.

25

3138815R1

TUBE

PIPE, fuel

1шт.

26

3132052R1

CLIP

fuel line

2шт.

103320

LOCK WASHER,5/16"

2шт.

3136366R1

SPACER

distance ring

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

27

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

coupling

2шт.

28

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

cutting

2шт.

29

3138814R1

TEE

SPARE PART

1шт.

30

3138823R1

TUBE

overflow

1шт.

31

3138822R1

CLAMP

fuel line

1шт.

50793H

WASHER

1шт.

32

3138821R1

LATCH

BAR, fuel line

1шт.

33

3138812R1

SCREW

hollow

1шт.

34

3138817R1

SPARE PART SUPPORT, fuel filter

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

2шт.

35

933697R1

SEALING RING,M10 x 13.5 x 1

3шт.

36

795864R91

VALVE

ASSY, ball check

1шт.

37

3138816R91

NO LONGER SERVICED

FILTER, twin, for components, see list of parts under details of twin fuel filter

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

38

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

2шт.

39

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

hollow

2шт.

40

3138819R1

LINE

HOSE, overflow

1шт.

41

3132768R1

CLAMP

pipe

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

1шт.

42

3132770R1

COLLAR

pipe

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

2шт.

ref

Part No.

English

1шт.

3138795R91

PIPE

injection, set of four, consists of

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

3132770R1

COLLAR

2шт.

3138768R1

CLAMP

1шт.

109084

NUT,1/4"-20, G5

1шт.

3138796R91

PIPE

1шт.

3138798R91

PIPE

1шт.

3138800R91

PIPE

1шт.

3138802R91

PIPE

1шт.

3052189R1

BELLEVILLE WASHER

3шт.
