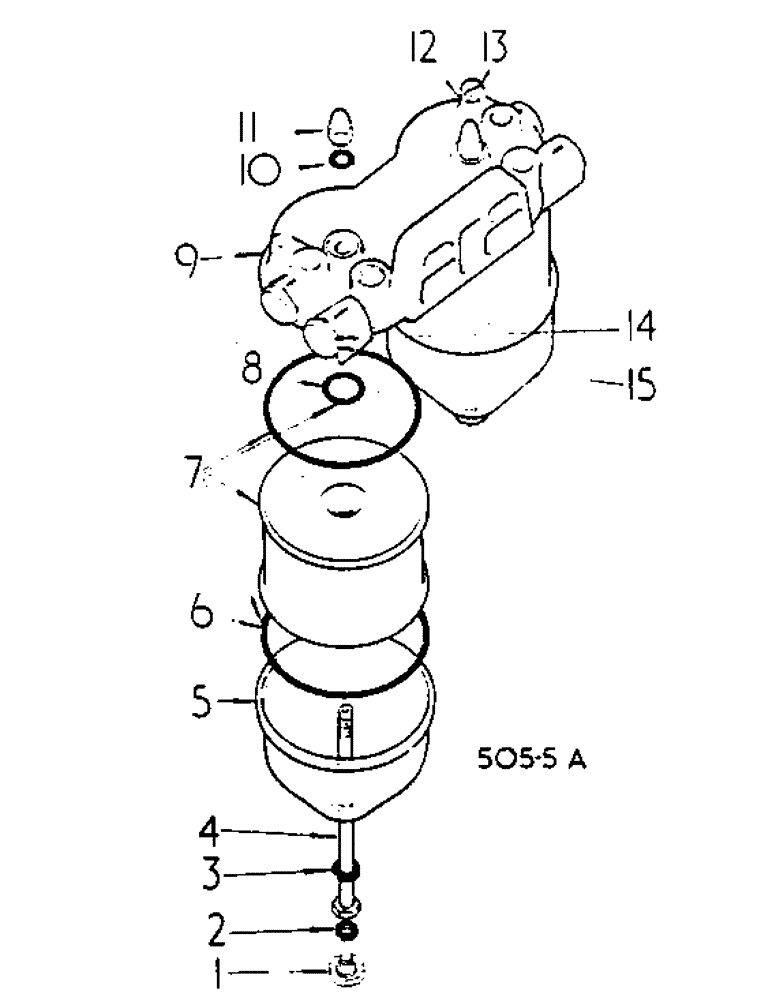

Запчасти Case IH 674 (12-39) - FUEL FILTER, TWO STAGE Power

3144227R91

FILTER

fuel, two stage

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Disc

2шт.

1

3144475R1

SCREW

drain

2шт.

2

3144476R2

RING,7.2mm ID x 12mm OD x 1.5mm Thk

packing

2шт.

3

3144480R1

RING,8.1mm ID x 16mm OD x 2mm Thk

packing

2шт.

4

3144479R1

BOLT,Hex, M8 x 148mm, Cl 8.8

hollow

2шт.

5

3144478R1

FILTER BOWL

glass

2шт.

6

3144472R1

RING

packing

4шт.

7

3044506R93

FILTER, FUEL

PACKAGE, element with rings

2шт.

7

3144477R91

FILTER

PACKAGE, element with rings, optional

2шт.

8

3144779R1

RING

packing

2шт.

9

3144484R1

HEAD

1шт.

10

3144474R1

RING,8mm ID x 13mm OD x 1.5mm Thk

packing

2шт.

11

3144473R1

CROWN NUT

crown

2шт.

12

757760R1

RING

packing

2шт.

13

3144780R1

SCREW

air vent

1шт.

14

712616R1

PLUG,Hex, M14 x 1.5

Packing

1шт.

15

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

1шт.
