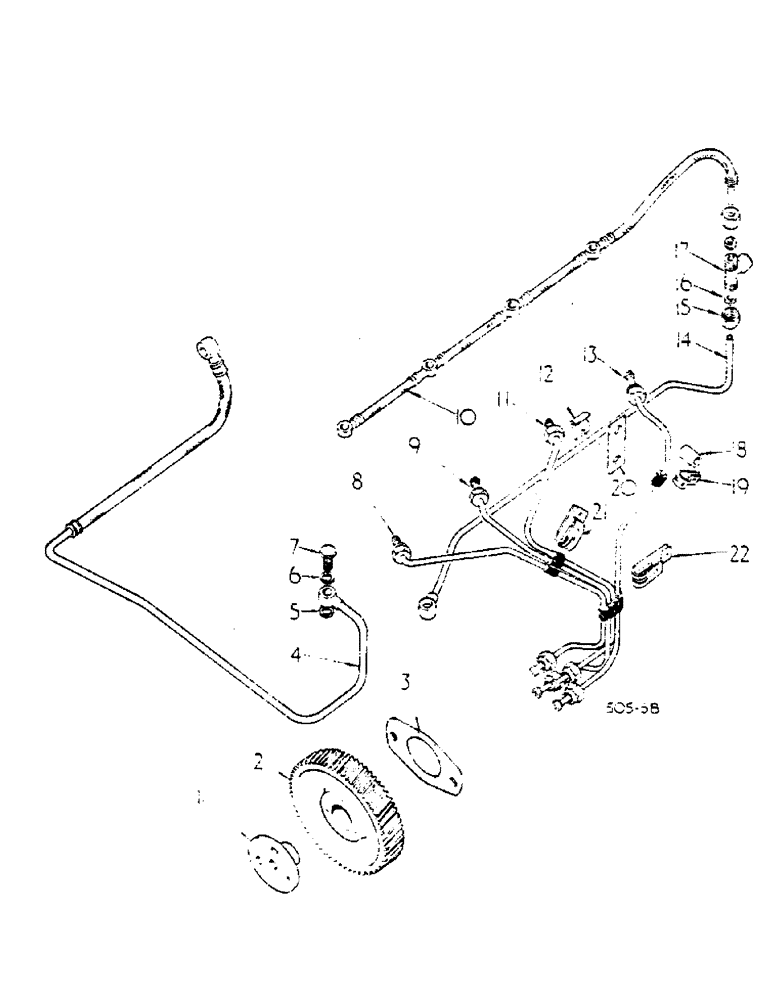

Запчасти Case IH 674 (12-36) - FUEL INJECTION CONNECTIONS Power

1

3055067R1

HUB

injection pump gear

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

8.5 X 19 X 2.5 MM

3шт.

2

3056885R3

PINION

GEAR, injection pump

1шт.

3

3055384R1

GASKET

fule injection pump

1шт.

4

3136077R2

FUEL HOSE

filter to injection pipe

1шт.

3132052R1

CLIP

fuel wine

2шт.

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

hollow

1шт.

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

2шт.

5

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

6

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

1шт.

7

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

hollow

1шт.

8

3144237R91

TUBE

PIPE ASSY, injection cyl no.1, Bosch injection CR pump

1шт.

9

3144215R91

TUBE

PIPE ASSY, injection cyl no.2, Bosch injection CR pump

1шт.

10

3055606R1

TUBE

PIPE, leak

1шт.

11

3144217R1

PIPE ASSY, injection cyl no.3., Bosch injection CR pump

1шт.

12

3055386R1

CLAMP

CLIP, fuel line

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

3052189R1

BELLEVILLE WASHER

1/4 lock

2шт.

13

3144219R91

TUBE

PIPE ASSY, injection cyl no.4, Bosch injection CR pump

1шт.

14

3144382R1

TUBE ASSY.

PIPE, overflow, Bosch injection CR pump

1шт.

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

2шт.

15

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

coupling

2шт.

16

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

compression

2шт.

17

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

special tee

1шт.

18

3055480R1

SPACER

PIPE

1шт.

19

3132767R1

CLAMP

pipe

1шт.

20

3132174R1

LINK

fuel line fixing

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

2шт.

21

3132766R1

CLAMP

pipe

1шт.

22

3132768R1

CLAMP

pipe

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

109084

NUT,1/4"-20, G5

1шт.

3052189R1

BELLEVILLE WASHER

lock

3шт.

3144238R91

INJECTION PIPE

SET, tubes, Bosch injection CR pump, not illustrated

1шт.
