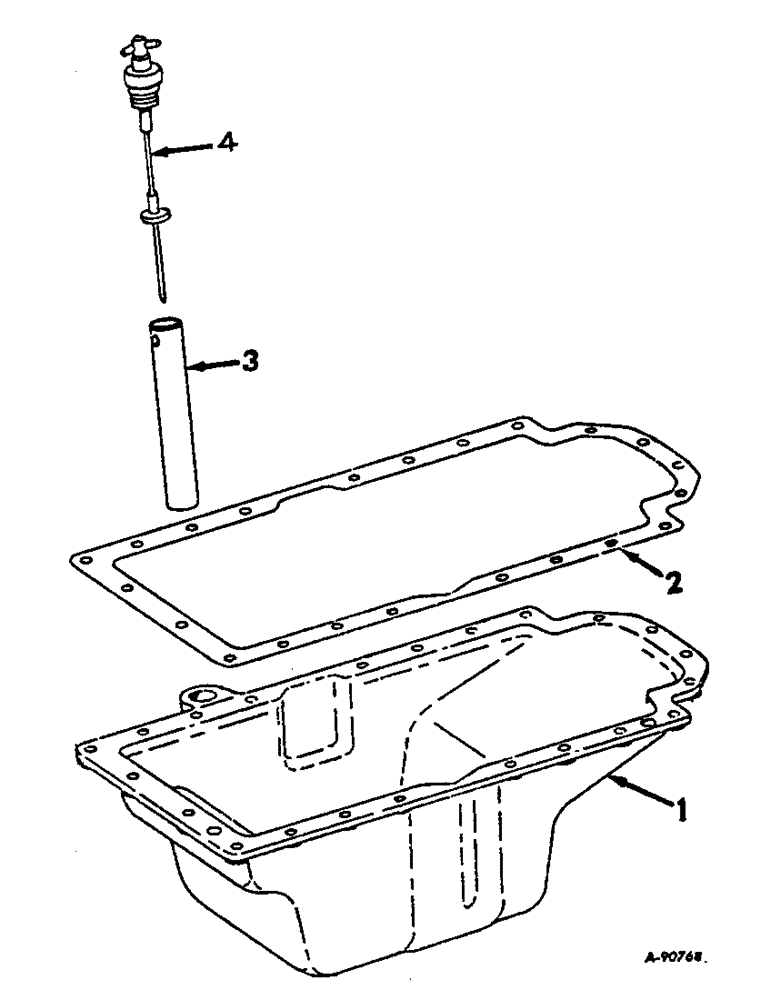

Запчасти Case IH 674 (12-29) - CRANKCASE OIL PAN Power

1

3136055R94

PAN ASSY.

oil

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

18шт.

103320

LOCK WASHER,5/16"

18шт.

933570R1

WASHER

DISC, spring

4шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

22340R1

SCREW,Hex, 5/16"-18 x 2 7/8", G5

5/16-18 X 2-7/8 hex hd cap

2шт.

3132544R2

PLUG

filler and drain

1шт.

933608R1

SEALING RING,M26 x 31 x 2

1шт.

2

3055161R1

GASKET

oil pan

1шт.

3

3136241R1

TUBE,29.556 mm OD, 250 mm Length

PIPE, oil filling

1шт.

4

3136242R2

DIPSTICK

CAGE ASSY, oil level

1шт.
