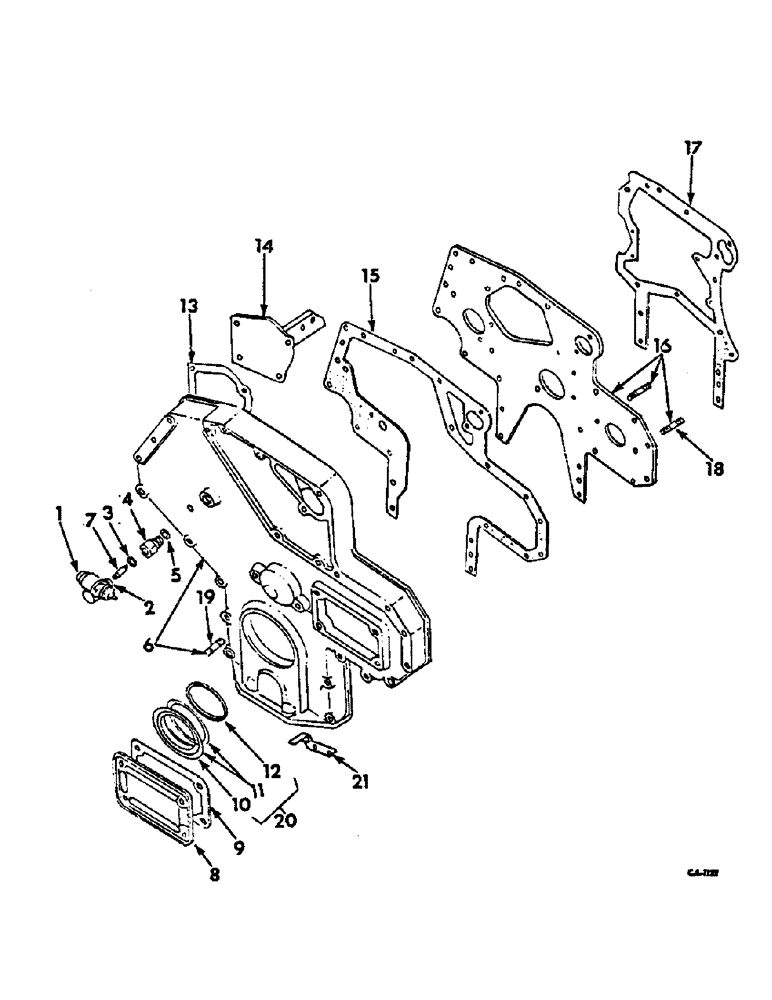

Запчасти Case IH 674 (12-27) - CRANKCASE FRONT COVER AND RELATED PARTS Power
№
Артикул
Название
Примечание
Количество
1
3055982R92
ANGLE DRIVE
1шт.
2
3132116R1
NUT
hex
1шт.
3
3052295R91
SEAL,6mm ID x 16mm OD x 7mm Thk
RING
1шт.
4
3055983R1
REDUCER FITTING
SPACER
1шт.
5
933222R1
SEALING WASHER,M18 x 22 x 1.5
1шт.
6
3136244R91
LID
COVER ASSY, front
1шт.
179826
BOLT,Hex, 5/16" - 18 x 2", Gr 5
9шт.
13-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
2шт.
179828
BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5
2шт.
9635082
NUT,5/16" - 18, Gr 5
7шт.
933570R1
WASHER
DISC, spring
6шт.
7
3056986R1
SUPPORT
COUPLING, angle
1шт.
8
3055140R1
COVER
injection pump
1шт.
131402H
WASHER
11/32 X 11/16 X 16 GA
4шт.
9635082
NUT,5/16" - 18, Gr 5
4шт.
9
3055141R1
GASKET
injection pump cover
1шт.
933223R1
PLUG,Hex, M18 x 1.5
SCREW, locking
1шт.
10
SEAL order package 3136724R93 -
1шт.
11
RING ASSY, distance
1шт.
932681R1
DOWEL,4mm OD x 24mm L
Pin (.157 X .945 dowel), Order package 3136724R93 -
1шт.
12
713778R11
O-RING
1шт.
13
3132541R1
GASKET
closing cover
1шт.
14
3136061R92
COVER ASSY
Bosch injection
1шт.
14
3132540R1
COVER ASSY
C.A.V. injection
1шт.
13-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
4шт.
9635082
NUT,5/16" - 18, Gr 5
4шт.
15
3055994R1
GASKET
crankcase front cover
1шт.
16
3138774R91
PLATE
ASSY, crankcase front
1шт.
13-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd
7шт.
16
3132013R1
SHIM
2шт.
16
20990R1
PLUG
3/8 hex hd pipe
1шт.
17
3055239R1
GASKET
crankcase front cover plate
1шт.
18
3055065R1
STUD
front plate
3шт.
9635082
NUT,5/16" - 18, Gr 5
3шт.
19
3055242R1
STUD
crankcase front cover
4шт.
20
3136724R93
SEAL KIT
PACKAGE, crankcase oil seal service, consists of
1шт.
713778R1
O-RING,3mm Thk x 55mm ID
1шт.
932681R1
DOWEL,4mm OD x 24mm L
Pin
1шт.
3136881R91
SEAL
1шт.
3136723R21
RING
1шт.
21
3136040R21
ADJUSTER
INDICATOR, timing assy
1шт.
Выбрано товаров: 45
