Запчасти Case IH 674 (12-22) - THERMOSTAT AND WATER PUMP Power

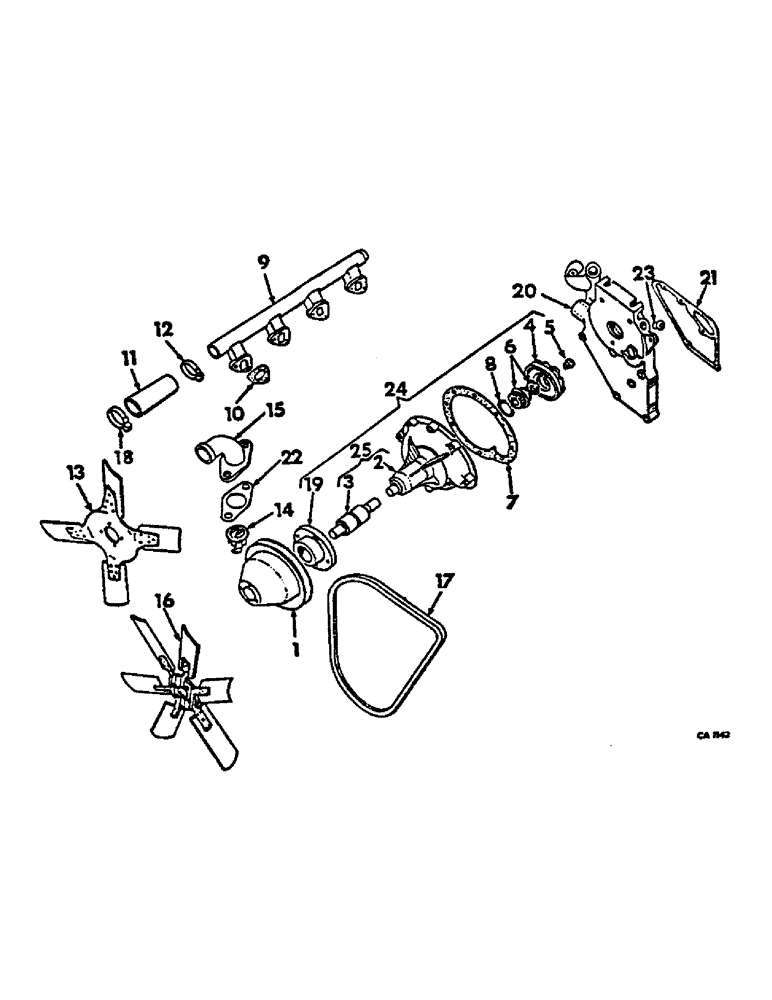

Схема запчастей Case IH 674 - (12-22) - THERMOSTAT AND WATER PUMP Power
20
17
7
4
25
1
11
19
23
6
8
18
12
13
24
2
15
3
5
9
16
22
14
21
10

Артикул

Название

Примечание

Количество

1

401124R1

PULLEY

water pump

1шт.

2

BODY, pump, not serviced separately, order 3132677R21-

1шт.

3

3055191R91

BEARING ASSY

pump

1шт.

3

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

pump, optional

1шт.

4

3055211R2

IMPELLER

pump

1шт.

5

3055308R1

PLUG

closing

1шт.

6

3055285R92

STRIPPER PACKAGE

water pump reconditioning, consists of

1шт.

*

RING

1шт.

*

PACKING

1шт.

*

RING

1шт.

3055177R1

GASKET

1шт.

7

3055177R1

GASKET

pump

1шт.

8

O-RING, seal, not serviced separately, order package 3055285R92 -

1шт.

9

3055255R1

MANIFOLD

PIPE, water

1шт.

425-115

NUT,5/16"-24, G5

8шт.

933570R1

WASHER

DISC, spring

7шт.

933161R2

SEALING RING

RING, packing

1шт.

712616R1

PLUG,Hex, M14 x 1.5

Packing

1шт.

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

1шт.

10

3055306R1

GASKET

water pipe

4шт.

11

3132144R1

HOSE,38.60 mm ID, 50.70 mm ID x 112.00 mm

Connecting

1шт.

12

3136499R1

CLAMP

hose

1шт.

12

755023R91

STRAP

CLAMP, hose, optional

1шт.

13

- NOT APPLICABLE -

1шт.

14

3059676R91

THERMOSTAT

1шт.

15

3132142R2

FLANGE

water outlet

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

2шт.

3050129R1

LOCK WASHER

WASHER, 3/8 med lock

2шт.

16

- NOT APPLICABLE -

1шт.

17

- NOT APPLICABLE -

1шт.

18

3136501R1

CLAMP

hose

1шт.

18

755023R91

STRAP

CLAMP, hose, optional

1шт.

19

3132146R1

HUB

pulley

1шт.

19

3132148R1

HUB

pulley, optional

1шт.

20

3136678R1

HOUSING

CARRIER, water pump

1шт.

445686

PLUG

3/8-18 auto hx hd pipe

1шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

1шт.

186272

BOLT,Hex, 5/16" - 18 x 4", Gr 5

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

103320

LOCK WASHER,5/16"

5шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

.335 X .748 X .098

1шт.

21

3055999R1

GASKET

water pump carrier

1шт.

22

3132143R1

GASKET

water outlet

1шт.

23

444630

PLUG,Hex Hd, 1/2"-14

1/2-14 auto hex hd pipe

1шт.

24

3136053R91

WATER PUMP

ASSY

1шт.

24

3136053R92GV

WATER PUMP

Value, Water Pump Assy.

1шт.

24

735102C91

REMAN-WATER PUMP

Reman for New PN 3136053R91

1шт.

24

1928123C1

CORE-WATER PUMP

Return Number

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

8шт.

103320

LOCK WASHER,5/16"

8шт.

25

3132677R21

BODY

ASSY

1шт.

Выбрано товаров: 52
