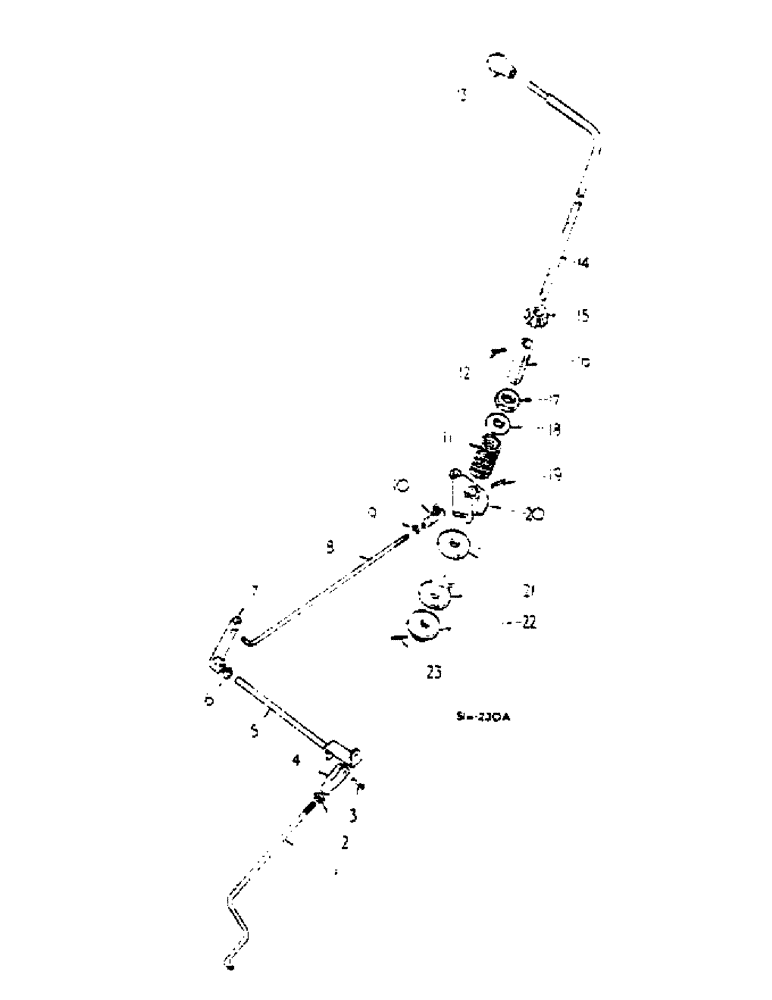

Запчасти Case IH 674 (12-12) - GOVERNOR CONTROLS, BOSCH Power

1

528334R3

ROD

front governor controls

1шт.

NLS

NO LONGER SERVICED

PIN, COTTER 1/16 X 1/2

1шт.

2

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

3

114783

PIN

1/4 X .766 rod end

1шт.

4

213-124

ADJUSTABLE CLEVIS,1/4"-28

Short adj rod end

1шт.

5

528325R2

ARM

ASSY, governor control idler

1шт.

6

Q1597

WASHER

13/32 X 3/4 X 16 GA plain

1шт.

6

20285H

WASHER

13/32 X 3/4 X 11 GA plain, optional

1шт.

7

539572R1

LEVER

ASSY, idler arm

1шт.

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

21309R2

WASHER, 13/32 X 7/8 X 7 GA

1шт.

8

528336R2

ROD

rear, governor control

1шт.

103361

PIN, SPLIT (COTTER)

PIN, COTTER 5/32 X 7/8 HV coiled spring

1шт.

9

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

1шт.

10

109400

STEERING KNUCKLE

JOINT, 1/4-28 ball

1шт.

10

19318R1

BALL JOINT

1/4-28

1шт.

10

531713R1

BALL JOINT

1/4-28 optional

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex

1шт.

103319

LOCK WASHER,1/4"

1шт.

11

65344C1

SPRING

governor friction control, adjustable friction throttle control

1шт.

11

401663R1

SPRING

governor friction control, fixed friction throttle control

1шт.

12

19313R1

PIN,5/32" x 7/8", Coiled

5/32 X 1 HV coiled spring, Adjustable friction throttle control

1шт.

12

19368R1

PIN,5/32" x 1", Coiled

5/32 X 7/8 HV coiled spring, fixed friction throttle control

1шт.

13

402584R1

BUTTON

KNOB, governor control handle

1шт.

14

528288R1

ROD

SPARE PART governor control handle

1шт.

15

528290R1

GUIDE RING

COLLAR, governor control handle

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

8-32 X 3/8 hex soc hd f pt

1шт.

16

65345C1

SPACER

adjustable, adjustable friction throttle control

1шт.

17

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-16 znd hex jam, adjustable friction throttle control

1шт.

18

467750R1

WASHER

25/32 X 1-1/2 X .120 znd, adjustable friction throttle control

1шт.

495-11053

WASHER,1/2", SAE

17/32 X 1-1/16 X .074 C-Z , fixed friction throttle control

1шт.

19

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

20

528291R2

ARM

ASSY, governor control rod

1шт.

21

394716R1

DISC

governor control fiction

2шт.

22

528294R1

PLATE ASSY.

governor control fiction

1шт.

23

19313R1

PIN,5/32" x 7/8", Coiled

1шт.
