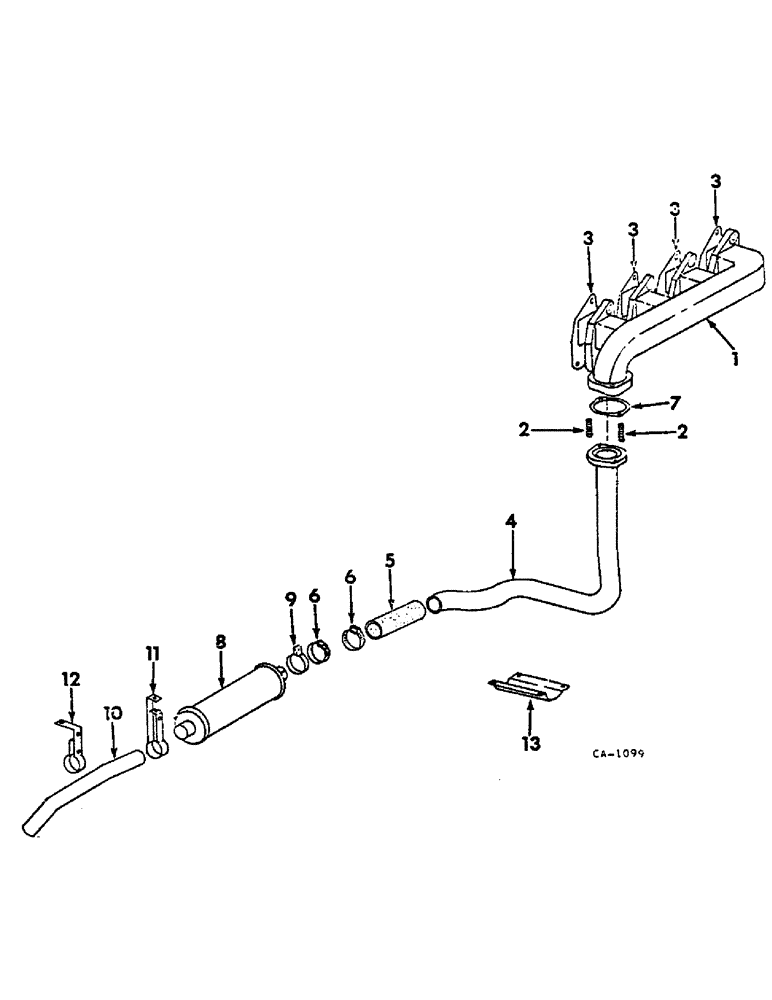

Запчасти Case IH 674 (12-08) - UNDERSLUNG EXHAUST Power

1

3055276R12

MANIFOLD ASSY

exhaust

1шт.

2

3055663R1

STUD

3/8-16 X 1-29/64

2шт.

103026

NUT,3/8"-24, G5

8шт.

103321

LOCK WASHER,3/8"

2шт.

20285H

WASHER

13/32 X 3/4 X 11 GA

8шт.

3

3132434R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold

4шт.

4

401485R11

NO LONGER SERVICED

PIPE ASSY, exhaust manifold

1шт.

5

375561R2

SLEEVE

asbestos

1шт.

6

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

no.32 hose

2шт.

7

401486R1

MANIFOLD GASKET

exhaust manifold pipe

1шт.

8

401489R1

MUFFLER

1шт.

9

403826R1

CLAMP

muffler

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8-16 X 1-1/8 hex hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

10

401490R1

RING

PIPE, tail

1шт.

11

401491R1

CLAMP

rear muffler sport

1шт.

14990R1

BOLT

5/16-18 X 5/8 short sq nk crg

1шт.

103320

LOCK WASHER,5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8-16 X 1-1/8 hex hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

12

401492R1

SUPPORT

tail pipe rear

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8-16 X 1-1/8 hex hd cap

1шт.

271714

BOLT,Hex, 5/8" - 11 x 7/8", Gr 5

5/8-11 X 7/8 hex hd cap

1шт.

191249

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

3/8-16 X 3-3/4 hex hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

492-11062

BEARING WASHER,5/8"

1шт.

364811R1

SPACER,10.7mm ID x 17.14mm OD x 27mm L

3/8 X 1-1/16 std pipe

1шт.

13

401488R1

GUARD

pipe

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.
