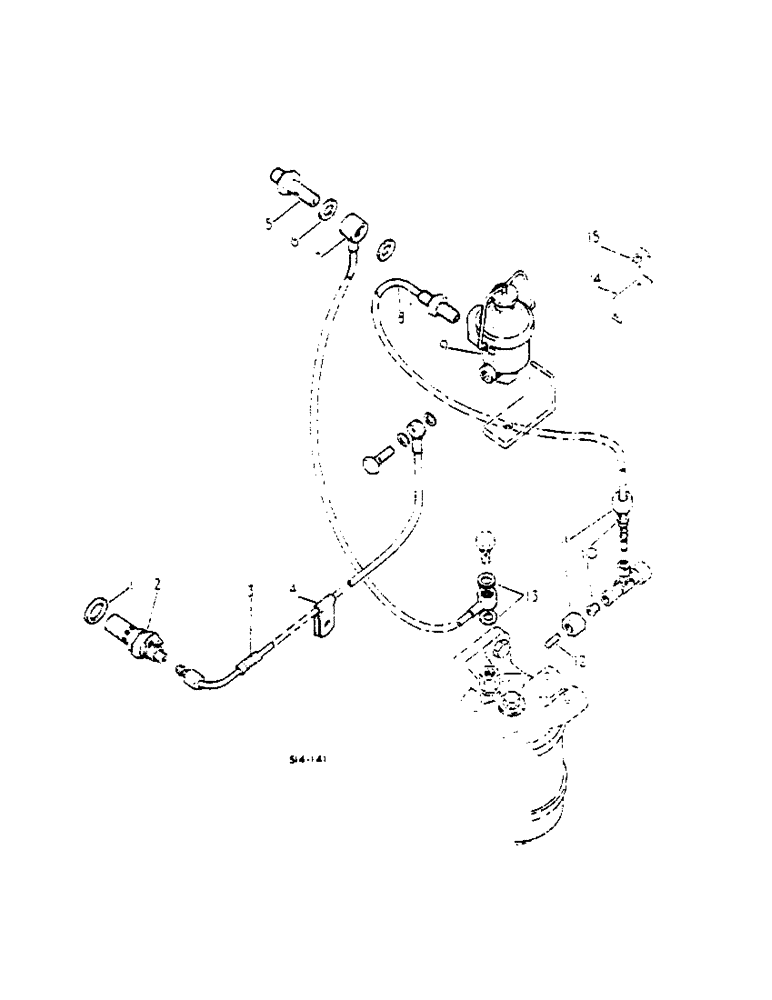

Запчасти Case IH 674 (12-06) - THERMOSTART, C.A.V. INJECTION Power

1

- NOT USED -

1шт.

2

3112805R91

THERMOSTART

PLUG, glow, thermostat, type 357-1

1шт.

3

3112816R92

PIPE

ASSY element feed

1шт.

3118707R1

BOLT

banjo

1шт.

3118712R1

WASHER

banjo bolt

2шт.

4

3142817R1

SHEET

SPARE PART CLAMP

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

5

3112810R1

ADAPTER

SPARE PART reservoir feed

1шт.

6

3113045R1

WASHER

banjo sealing

2шт.

7

3112814R92

TUBE,1" OD, 14.5" Length

reservoir supply

1шт.

8

3112812R91

PIPE

ASSY, reservoir overflow

1шт.

9

3112813R92

RESERVOIR

fuel thermostat, consists of

1шт.

9

3116083R91

CLAMP

RETAINER, bail

1шт.

3116085R1

BODY

1шт.

3116084R1

BOWL

glass

1шт.

10

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

cutting

2шт.

11

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

coupling

2шт.

12

3112811R1

SPARE PART tee piece

1шт.

13

3112831R1

WASHER

banjo sealing

2шт.

14

3113212R1

BRACKET

pipe support

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

2шт.

15

3059647R1

CLAMP

CLIP

1шт.
