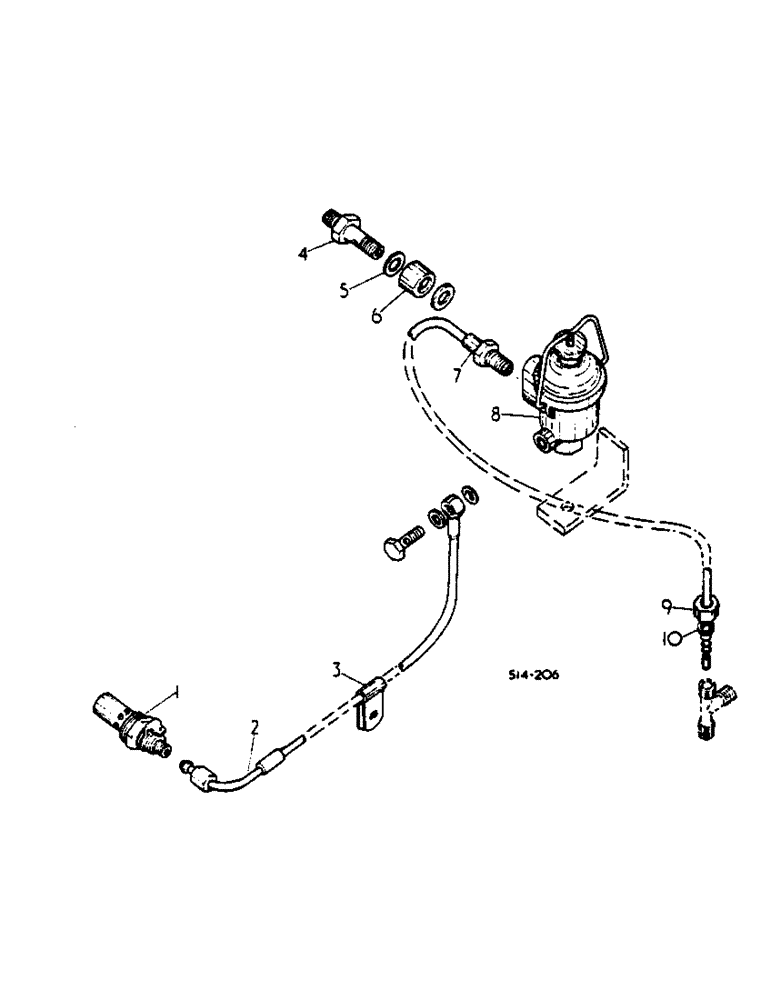

Запчасти Case IH 674 (12-05) - THERMOSTART, BOSCH INJECTION C.R. PUMP Power

1

3112805R91

THERMOSTART

PLUG, glow thermostat type 357-1

1шт.

2

3136699R91

TUBE

HOSE ASSY, element feed

1шт.

3

3112817R1

CLAMP

element feed

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

4

3112810R1

ADAPTER

SPARE PART reservoir feed

1шт.

5

3113045R1

WASHER

banjo sealing

2шт.

6

3113700R1

SPACER

1шт.

7

3112812R1

PIPE

ASSY, reservoir overflow

1шт.

8

3112813R92

RESERVOIR

consists of

1шт.

3116085R1

BODY

1шт.

3116084R1

BOWL

glass

1шт.

8

3116083R91

CLAMP

RETAINER, bail

1шт.

705886R1

SEAL

GASKET

1шт.

9

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

coupling

1шт.

10

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

cutting

1шт.
